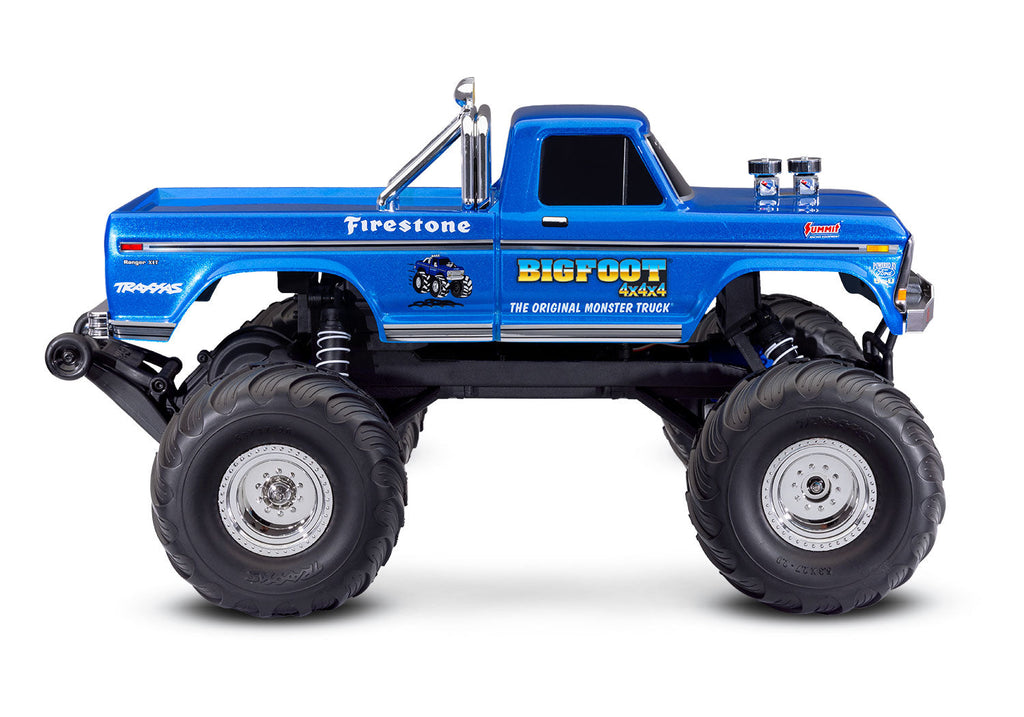

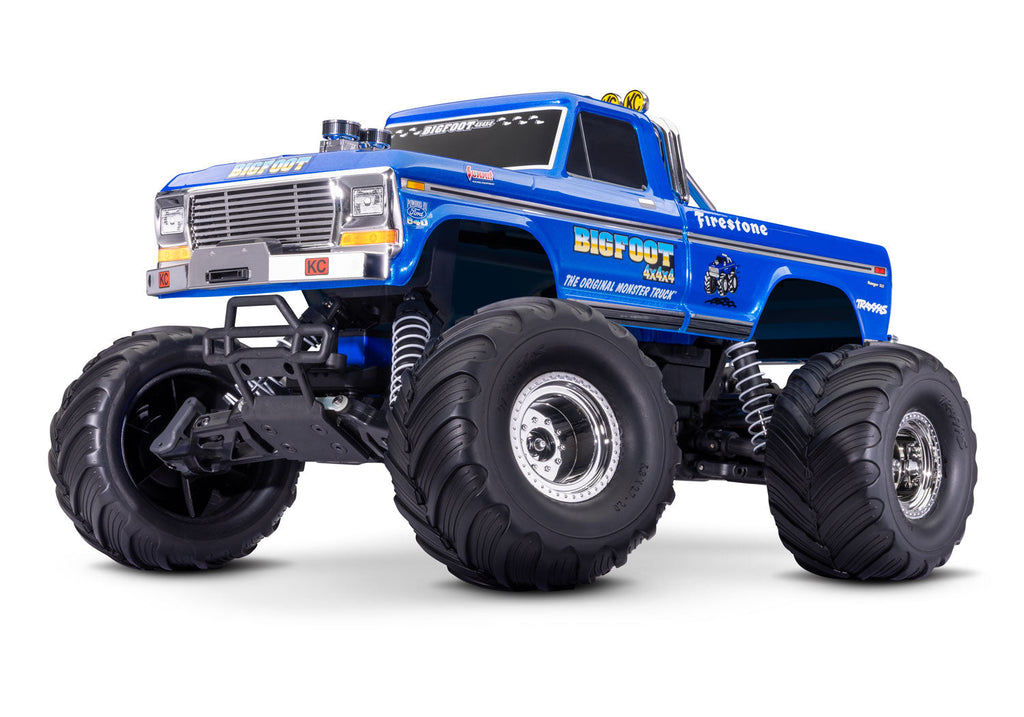

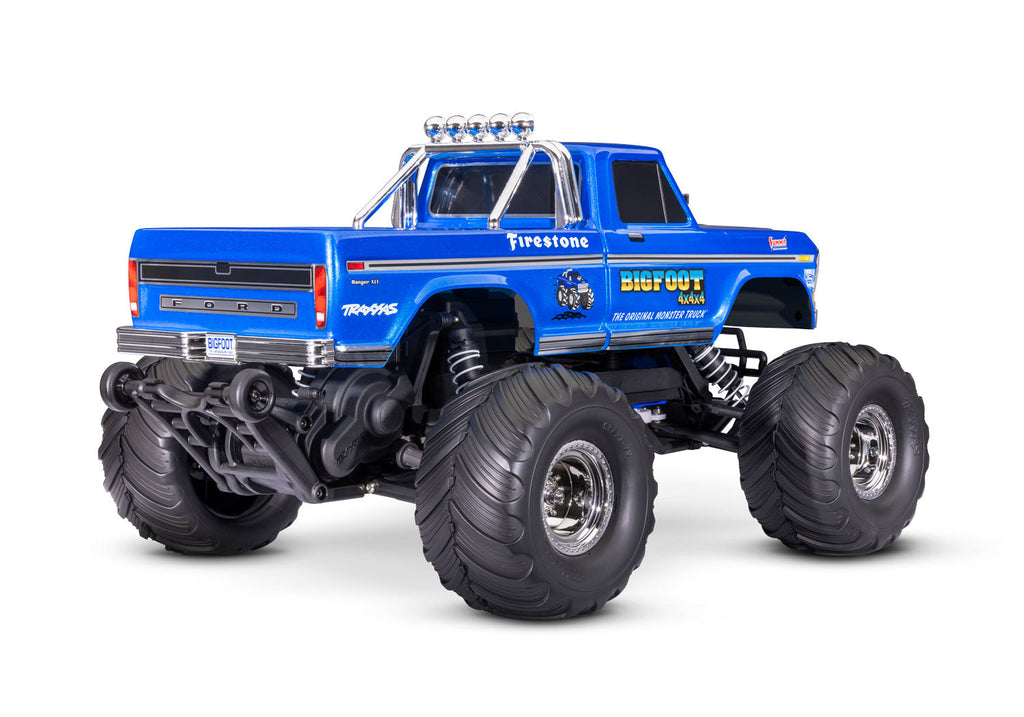

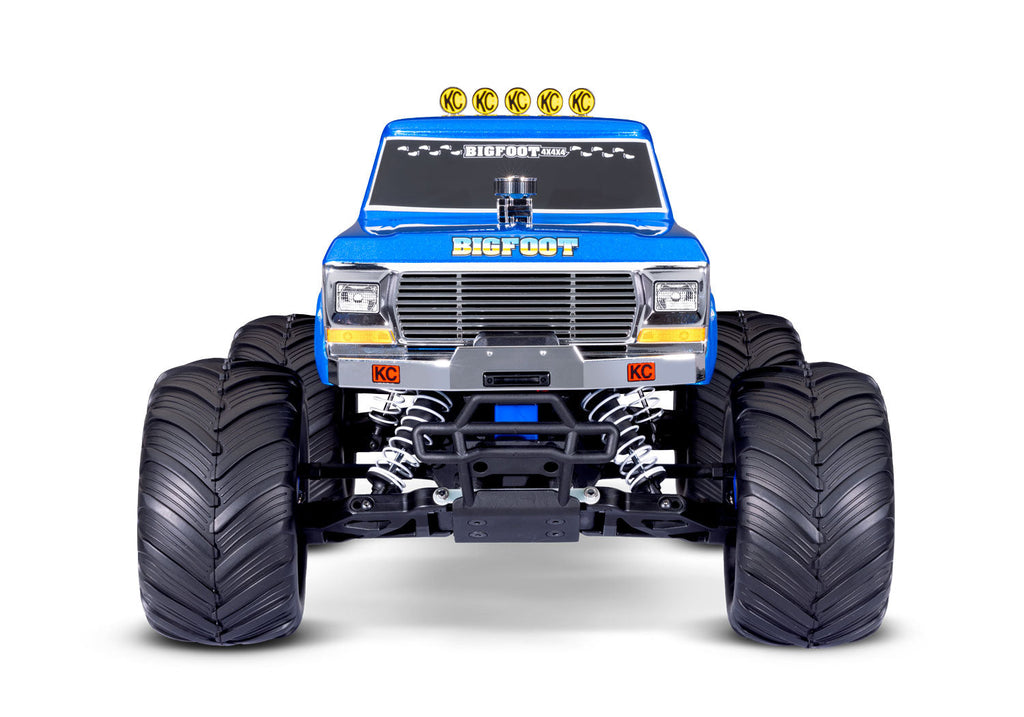

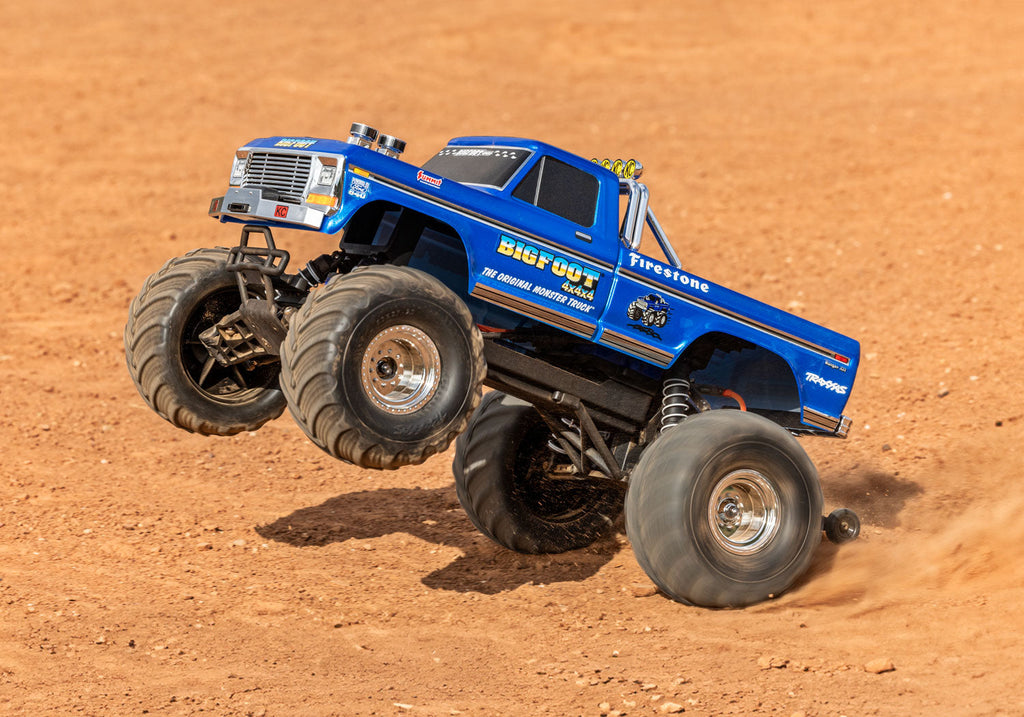

BIGFOOT No 1 HD w/USB-C Charger and Battery Traxxas #36234-8 R5
$249.95
BIGFOOT No 1 HD w/USB-C Charger and Battery Traxxas #36234-8 R5
NEW Extreme HD Caster & Steering Blocks
NEW Extreme HD Hub Carriers
NEW Extreme HD Camber & Toe Links
- Clipless Body Mounting on Rustler, Stampede, and BIGFOOT
- Adjustable Wheelie Bar on Stampede and BIGFOOT
- Hex Hardware
- 7-cell NiMH Battery Included
- 4-amp USB-C Charger Included
-
Licensed BIGFOOT® No. 1 Clipless Body
- Brilliant blue metallic officially licensed F-100 Ford® XLT Ranger body
- Chrome front bumper with replica winch
- Chrome grille with light buckets and reflectors
- Replica high-rise dual-carb intake manifold
- Chrome roll bar with replica KC lights
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
- Brilliant blue metallic officially licensed F-100 Ford® XLT Ranger body
-
High-Performance Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
-
Titan 550 Motor
- Powerful Titan® 12T 550 brushed motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
-
Extreme Heavy Duty Parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks
-
TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Sealed watertight receiver box keeps the receiver dry
-
Includes Battery and USB-C Charger
- 4-amp USB-C fast charger
- 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®
-
Tough Fiber-Composite Monocoque Chassis
- Includes adjustable wheelie bar
- Tall 4″ center ground clearance to drive over obstacles
-
Easy Access Battery Compartment
- Accepts NiMH 6 and 7-cell flat packs and hump packs
- Accepts 2-cell LiPo batteries
-
Transmission and Driveline
- Brushless-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
- Telescoping U-joint driveshafts
Model Specs
| Model Name: | BIGFOOT No 1 HD w/USB-C |
|---|---|
| Model Type: | Monster Truck |
| Model Speed: | 30+ mph with 7-cell battery |
| Model Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 4.08 pounds (1.85 kg) |
| Length: | 16.25 inches (413 mm) |
| Width: | 12.75 inches (324 mm) |
| Front Track: | 12.75 inches (324 mm) |
| Rear Track: | 12.75 inches (324 mm) |
| Height: | 9.5 inches (241 mm) |
Motor Specs
| Motor Name: | Titan® 12T 550 |
|---|---|
| Motor Type: | High-speed brushed motor |
| Motor Weight: | 8.47 ounces (240 g) |
| Motor Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Motor Diameter: | 1.41 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Bullet |
ESC Specs
| ESC Name: | Waterproof XL-5™ ESC with low-voltage detection |
|---|---|
| ESC Type: | Brushed |
| ESC Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) |
| ESC Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 14 gauge |
