JATO 4X4 BRUSHLESS BL-2S, Traxxas #90154-4, Includes Free Battery and Charger
$349.95
Includes Free Battery and Charger (2827X, 2920) with this Model: $60 Value!
JATO 4X4 BRUSHLESS BL-2S, Traxxas #90154-4

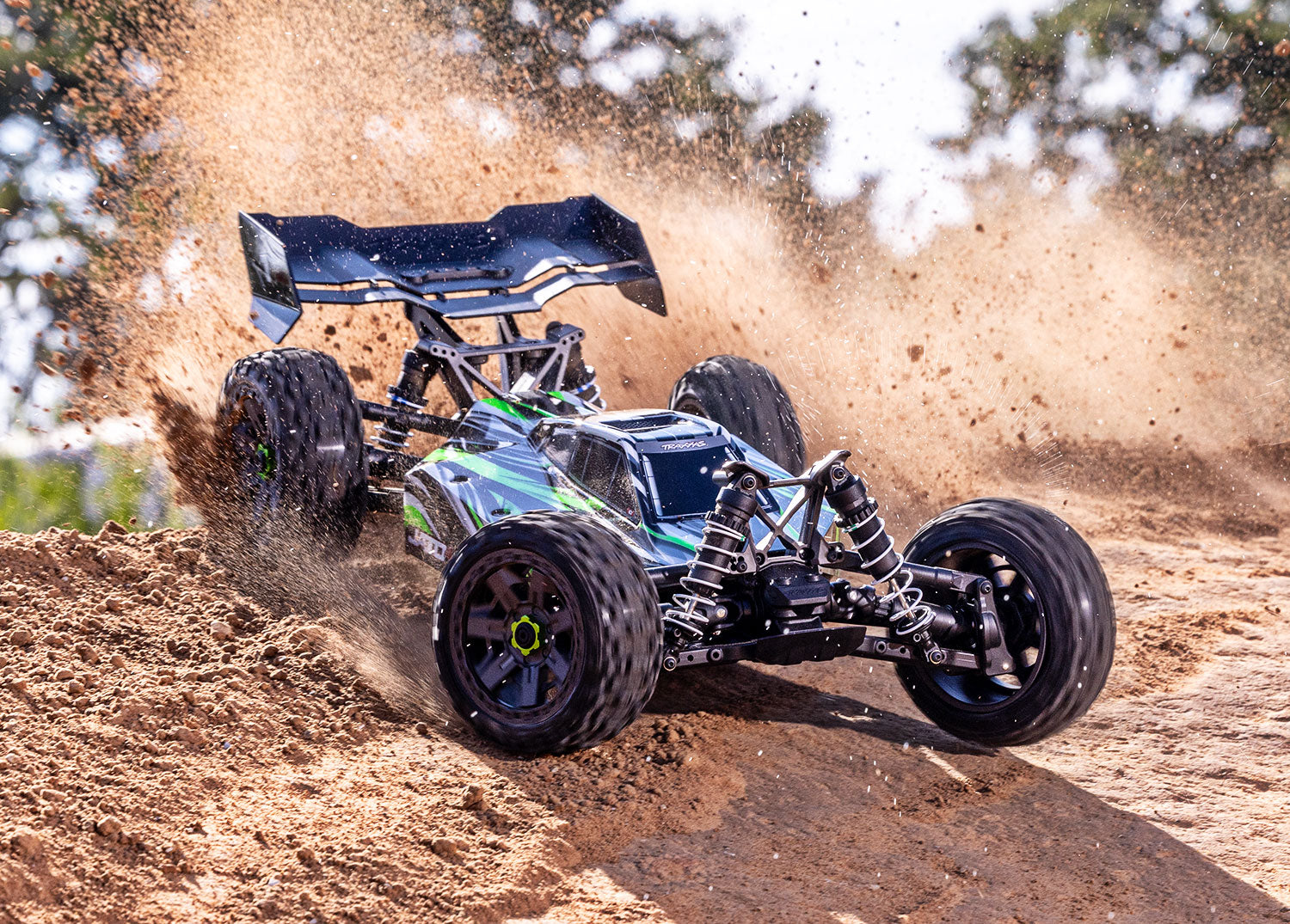

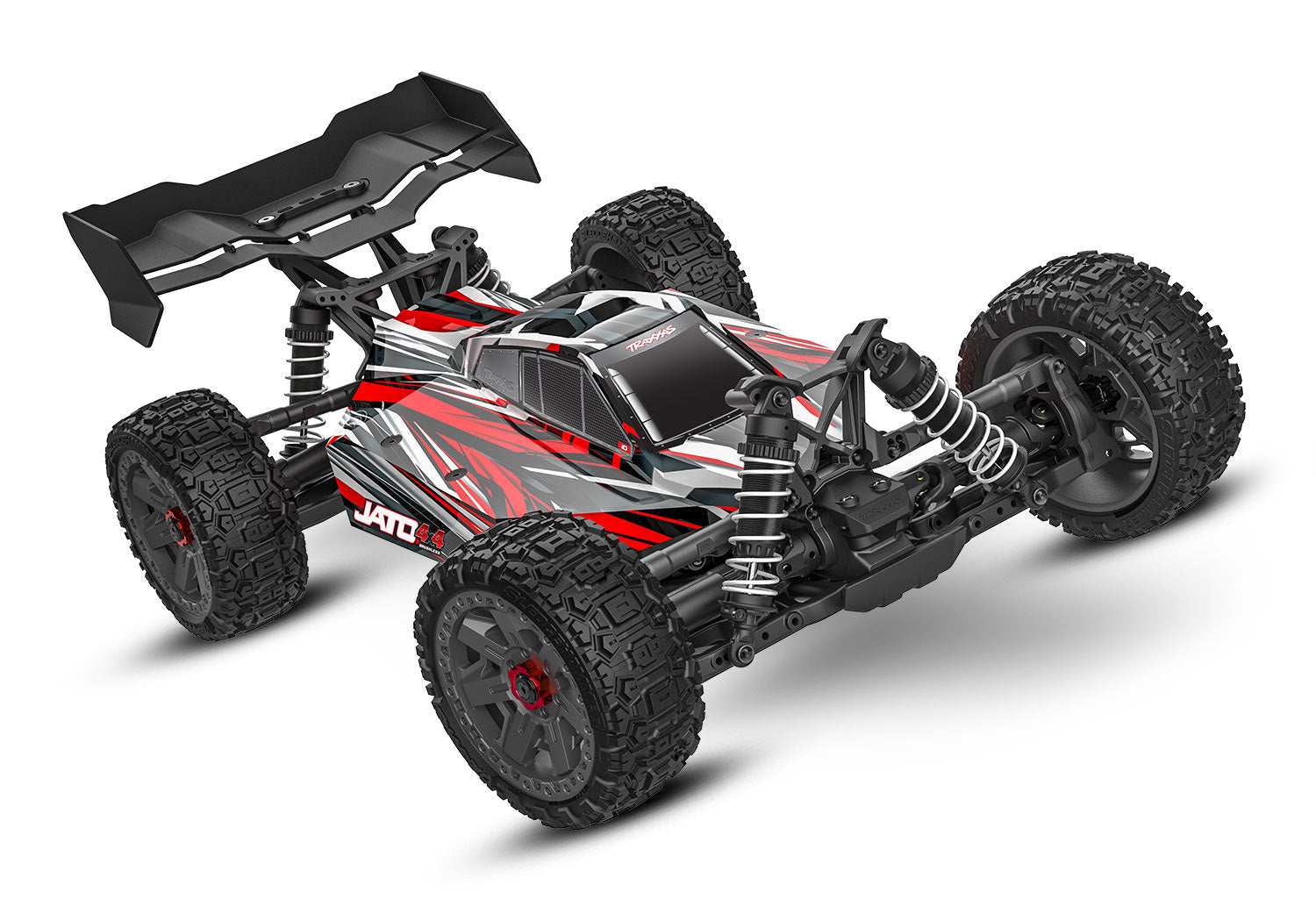

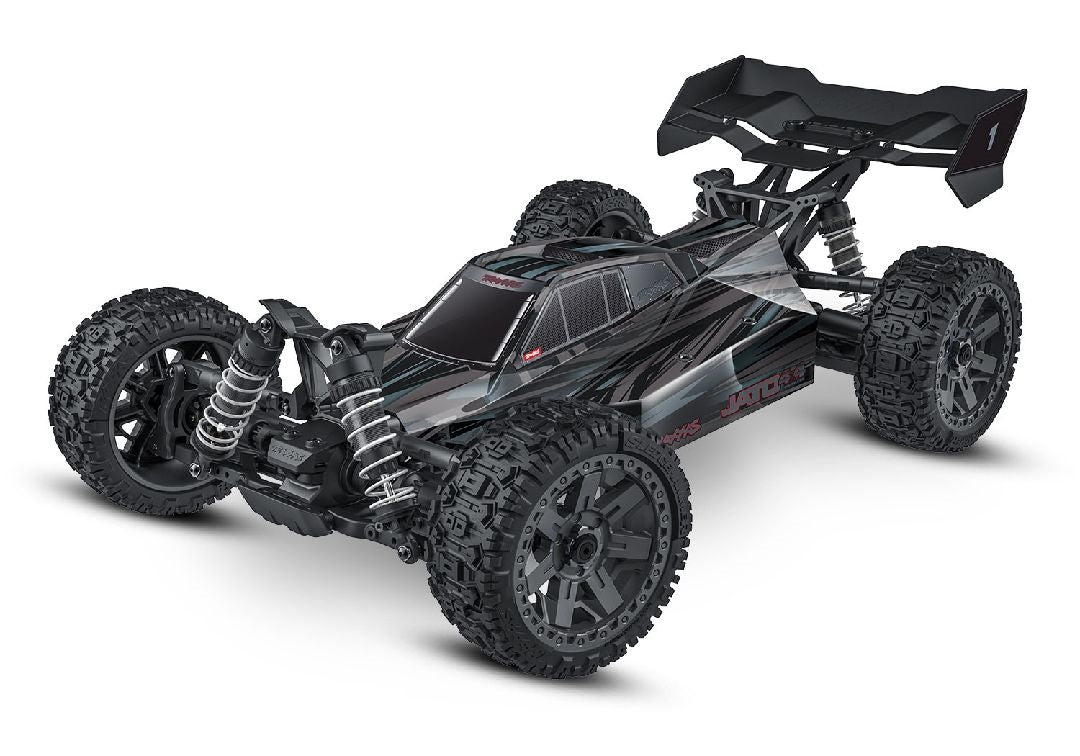

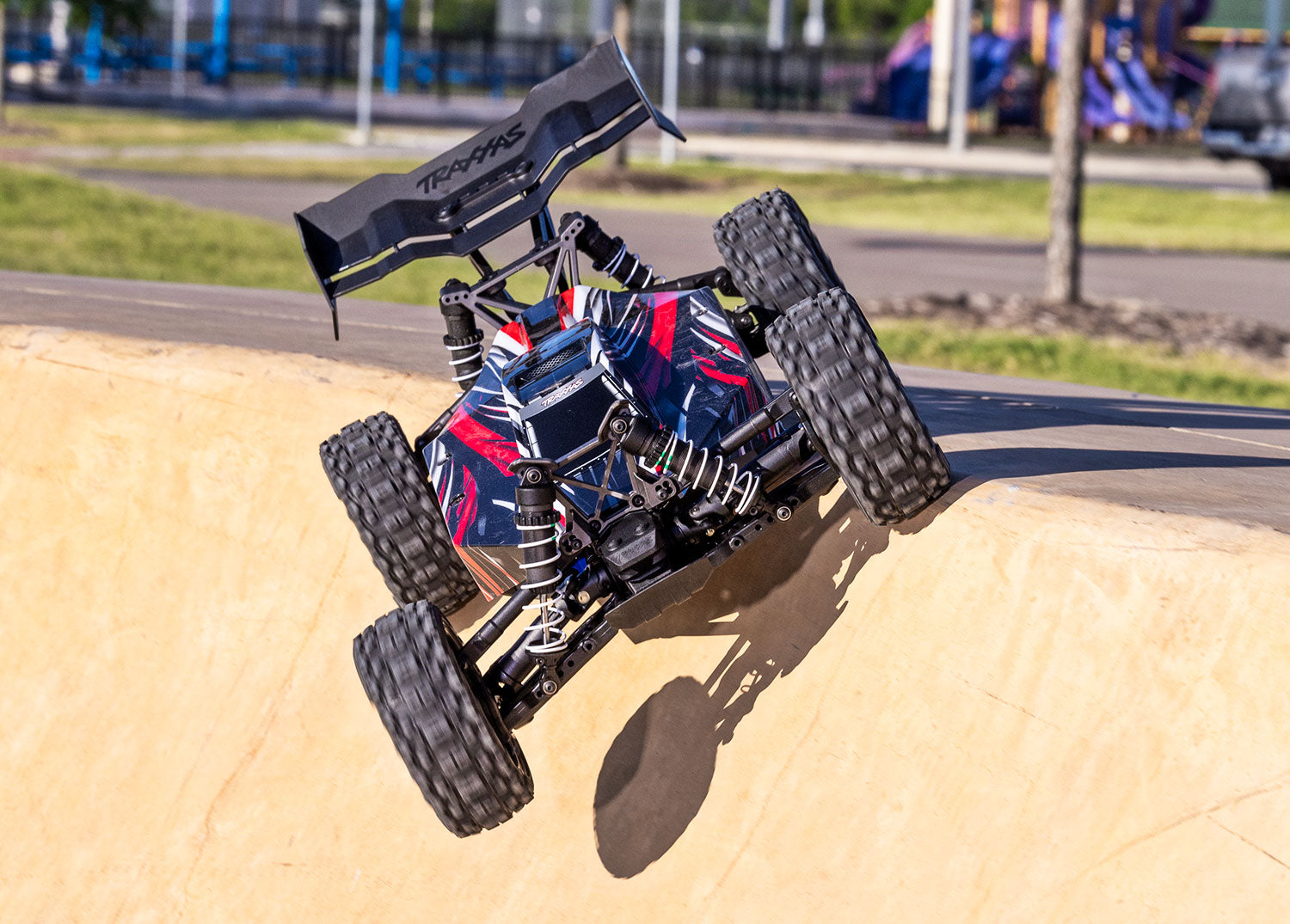

MODEL 90154-4: Jato® 4X4 BL-2s: 1/8 scale 4X4 brushless buggy, Ready-To-Race® with factory-installed Extreme HD kit, waterproof electronics, with TQ™ 2.4 GHz 2-channel radio system, BL-2s™ speed control, and clipless painted body. Requires: battery and charger.
What’s In The Box:
- Jato 4X4 with BL-2s ESC and 3300 kV motor
- Quick Start Guide
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
Jato 4X4 requires a 7.4-volt LiPo battery or 8.4-volt NiMH battery.
- Charger
The Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
We recommend
Jato 4X4 BL-2s
2970-2SR
2s LiPo Completer Pack
UPC 020334032744
$129.95 MAP

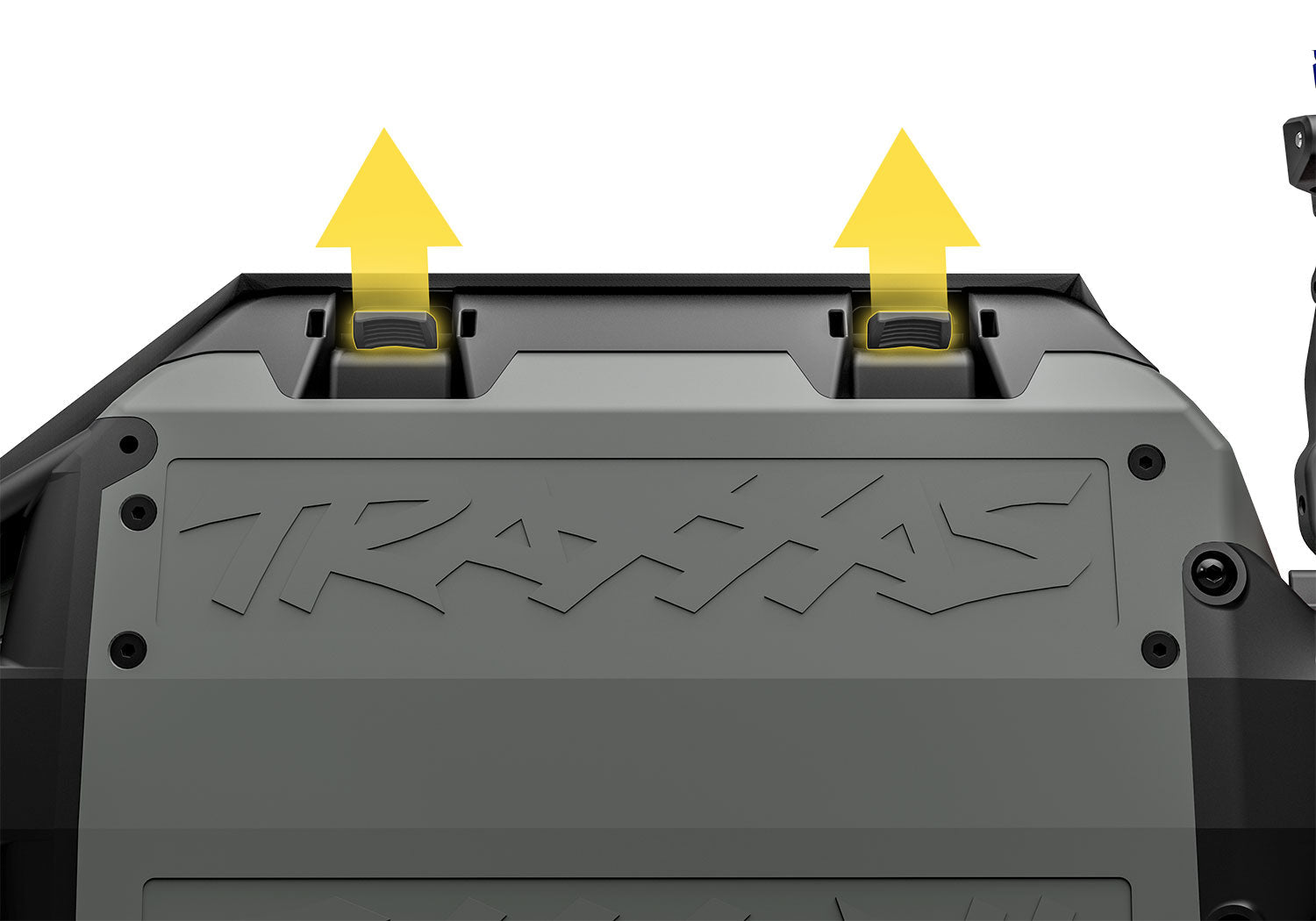

- Clipless Body
- Holds tight for intense action
- Quick and easy removal

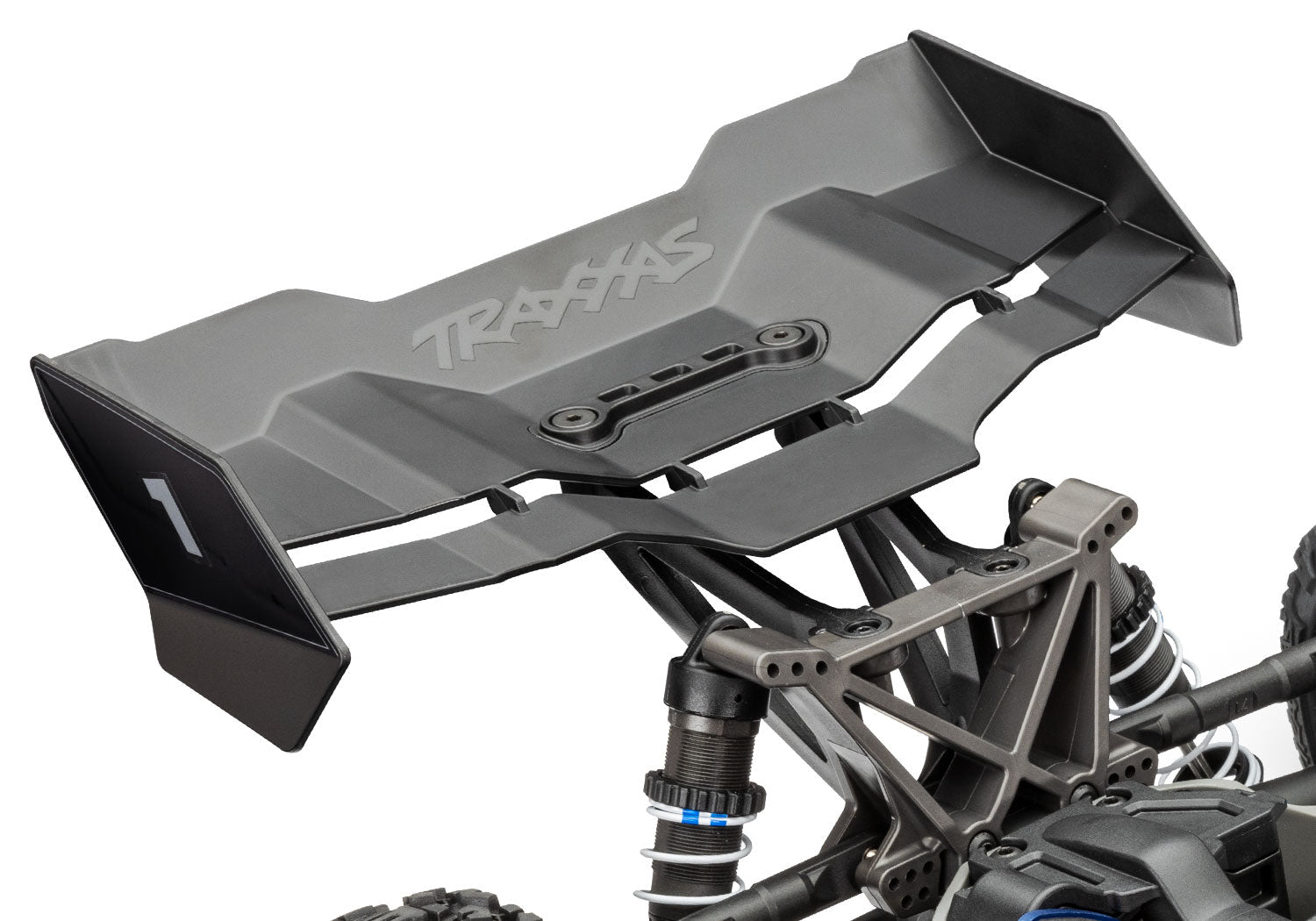

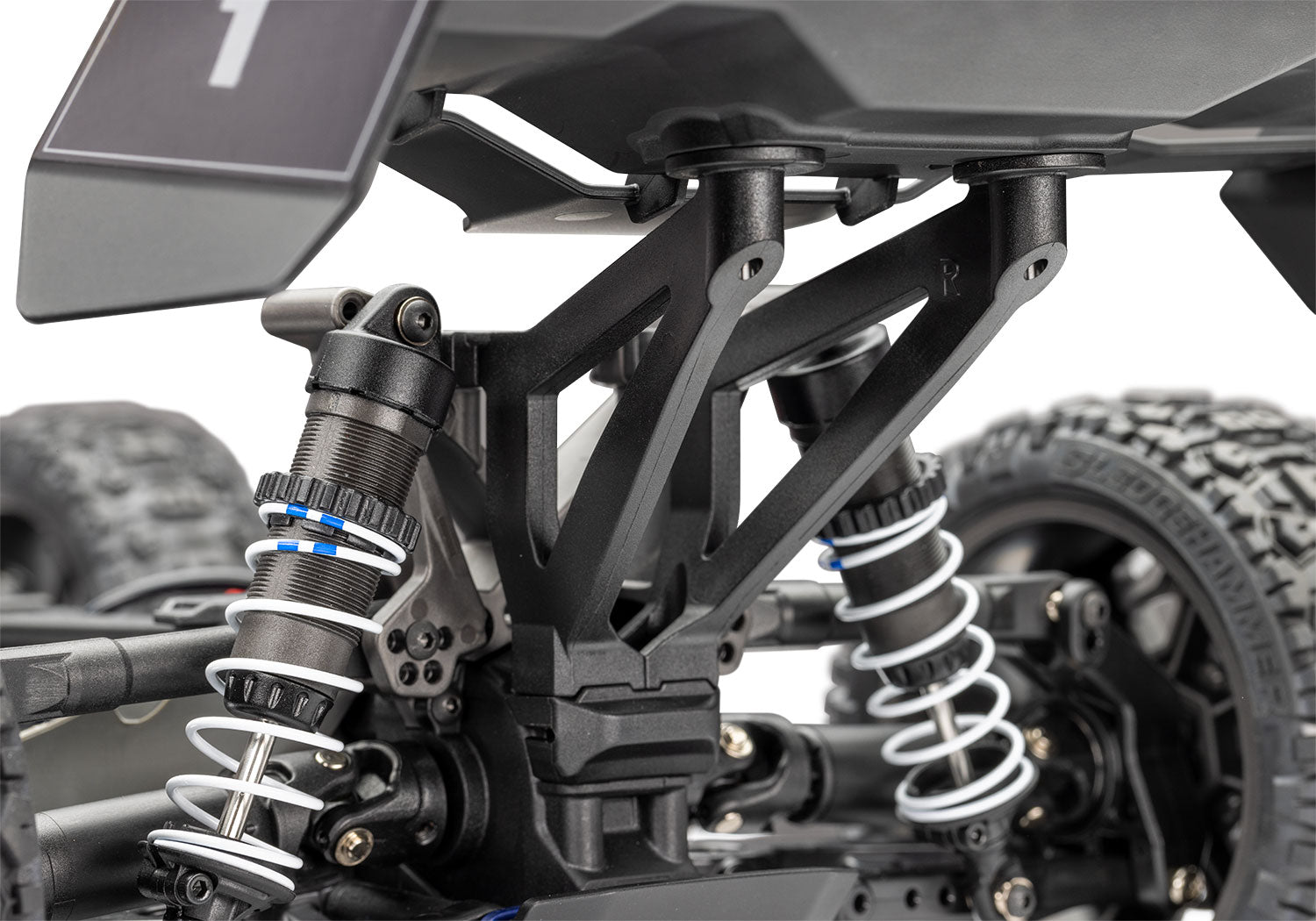

- High-downforce wing

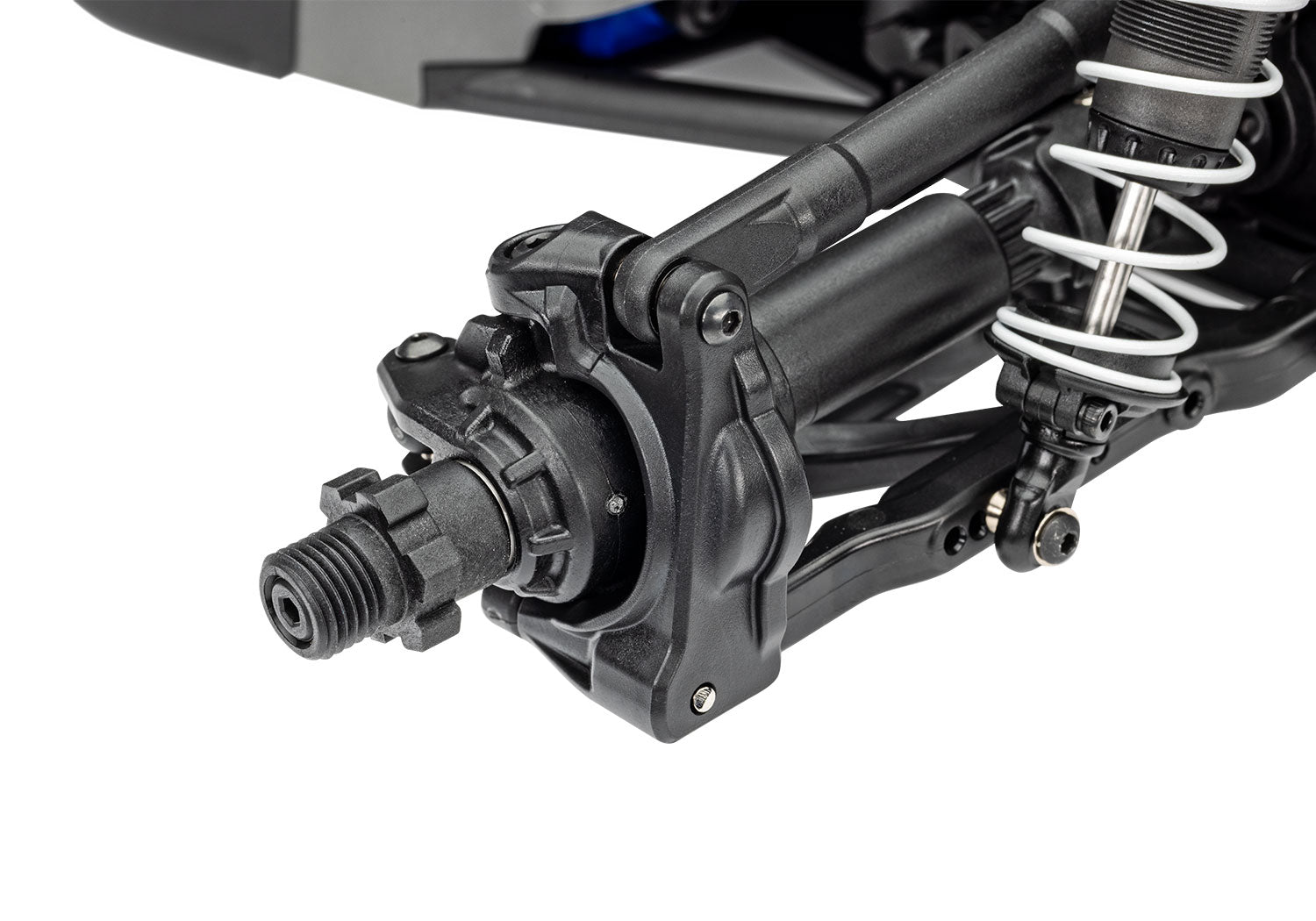

- Extreme Heavy Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Heavy duty one-piece camber & toe links

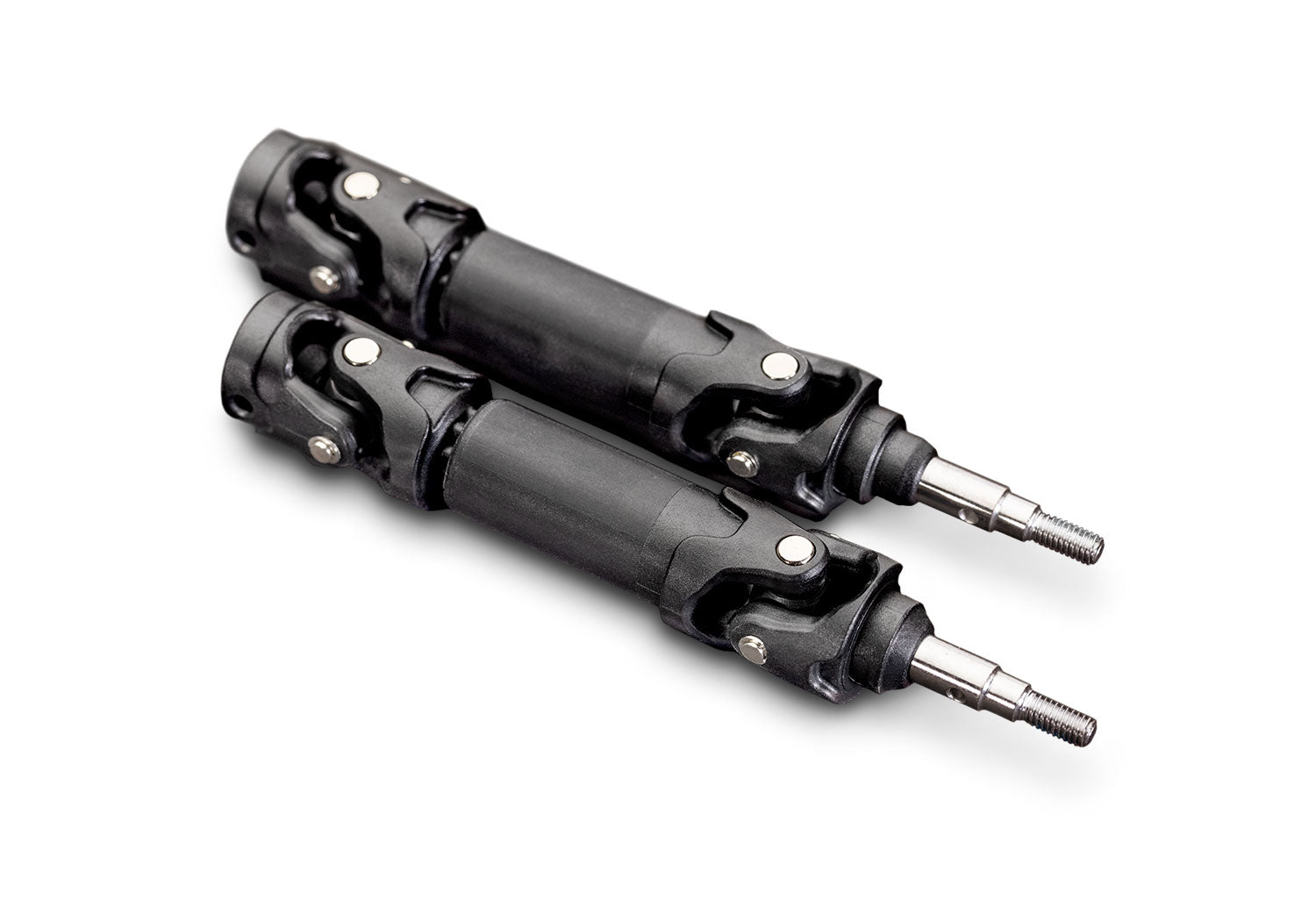

- Maxx-duty driveshafts
- Oversize diameter
- 6 mm axles
- 17 mm hex hubs
- Aluminum wheel nuts
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Steering
- Chassis-mounted 2075 servo

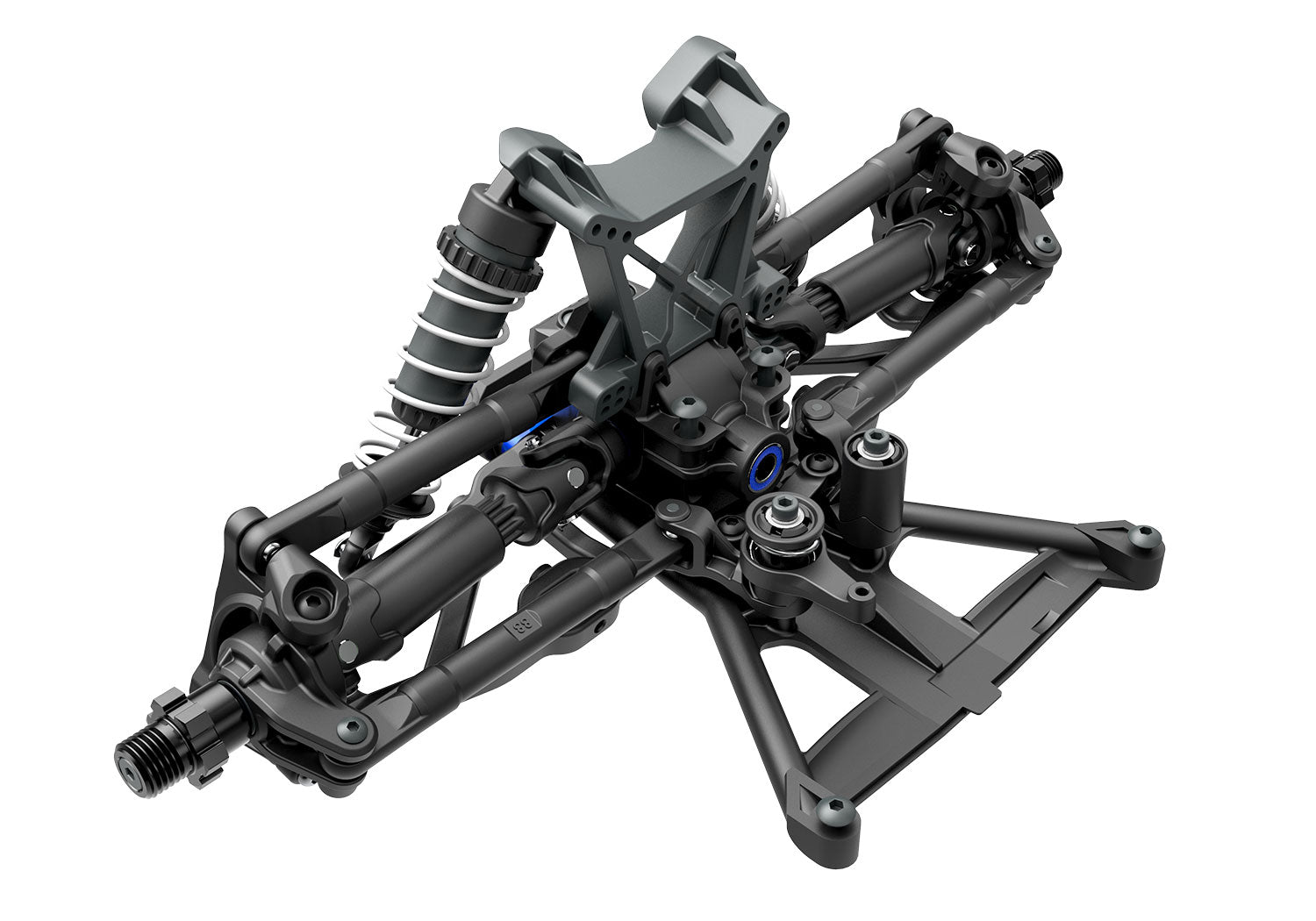

- Dual bellcrank design with integrated servo saver

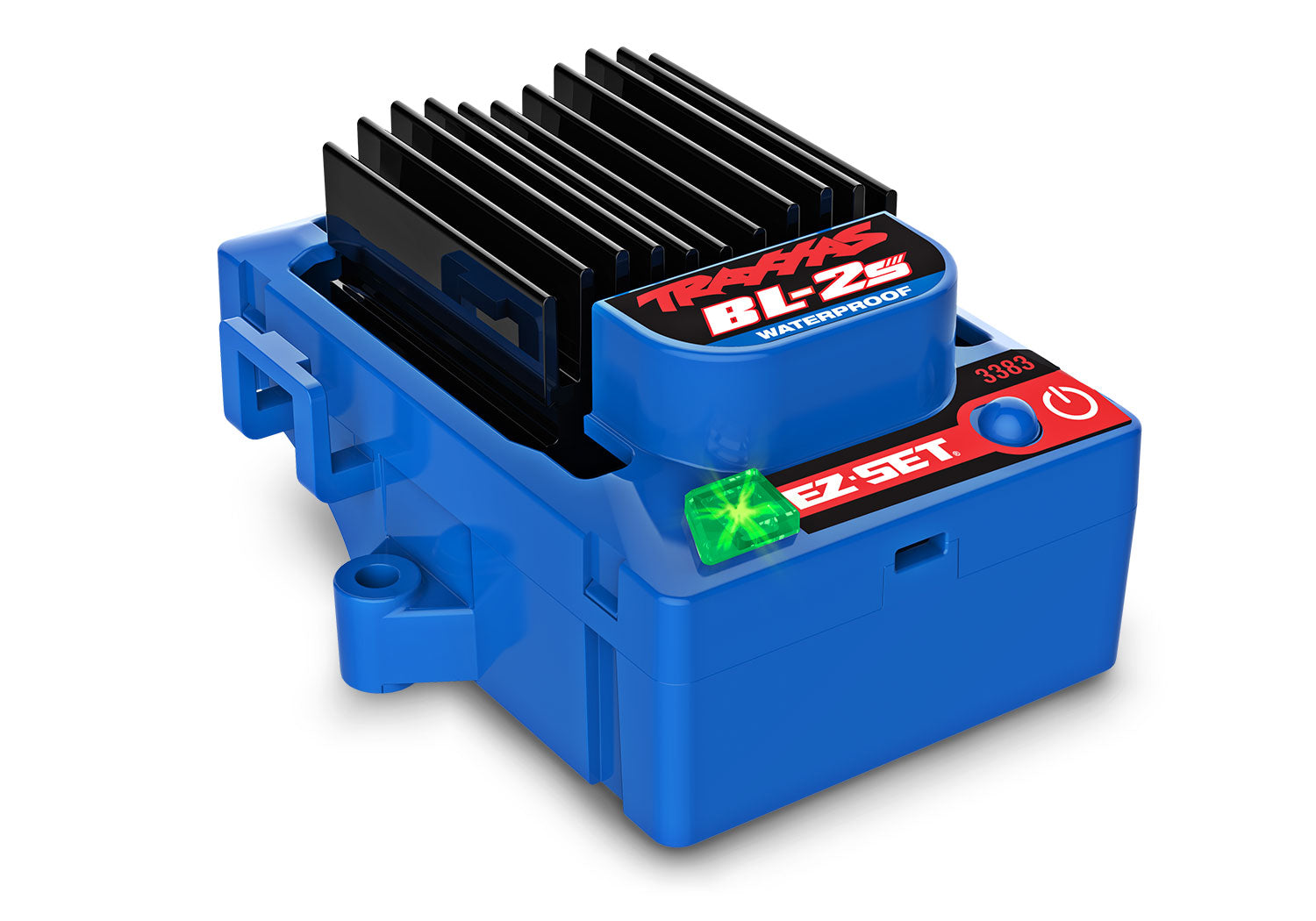

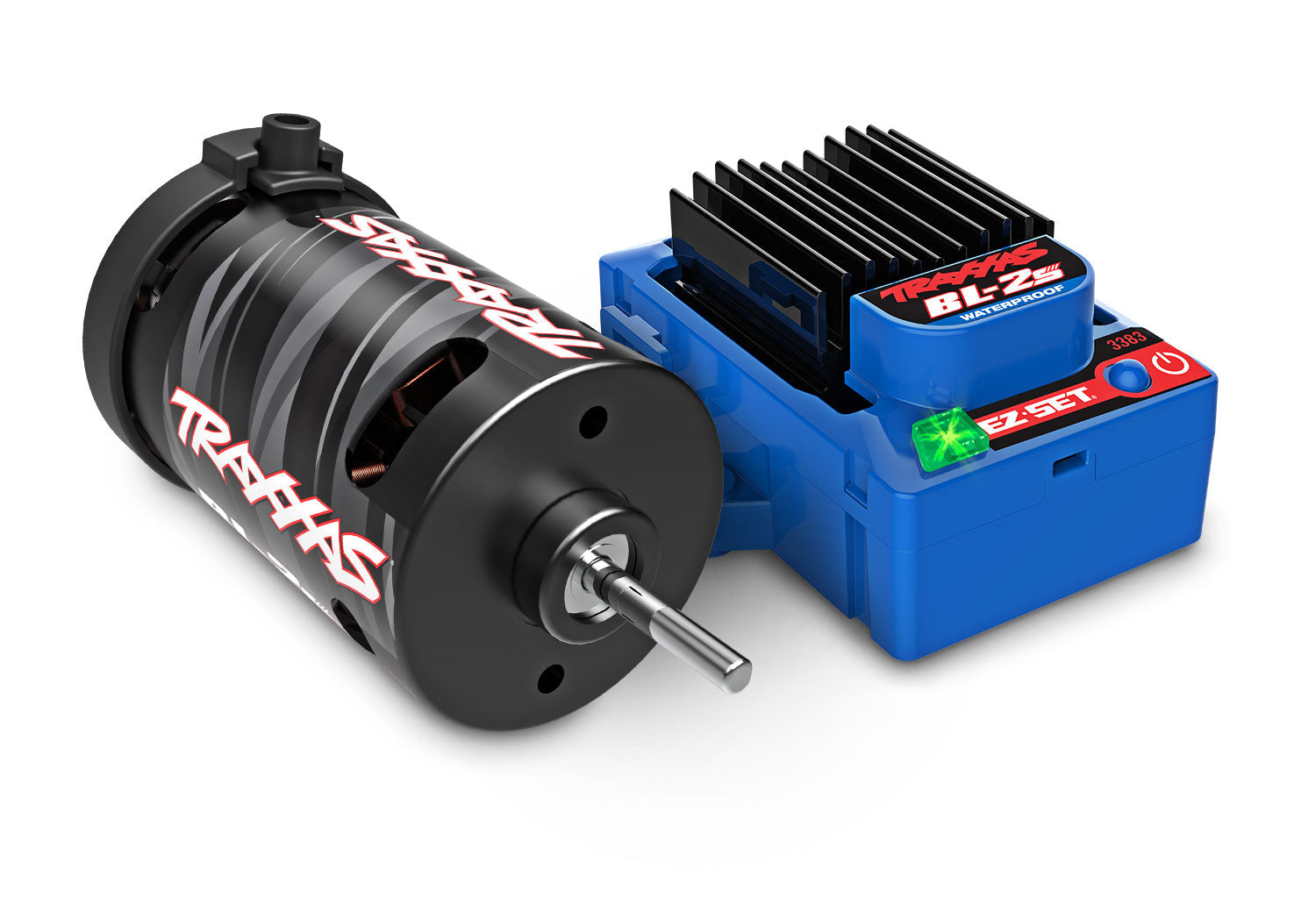

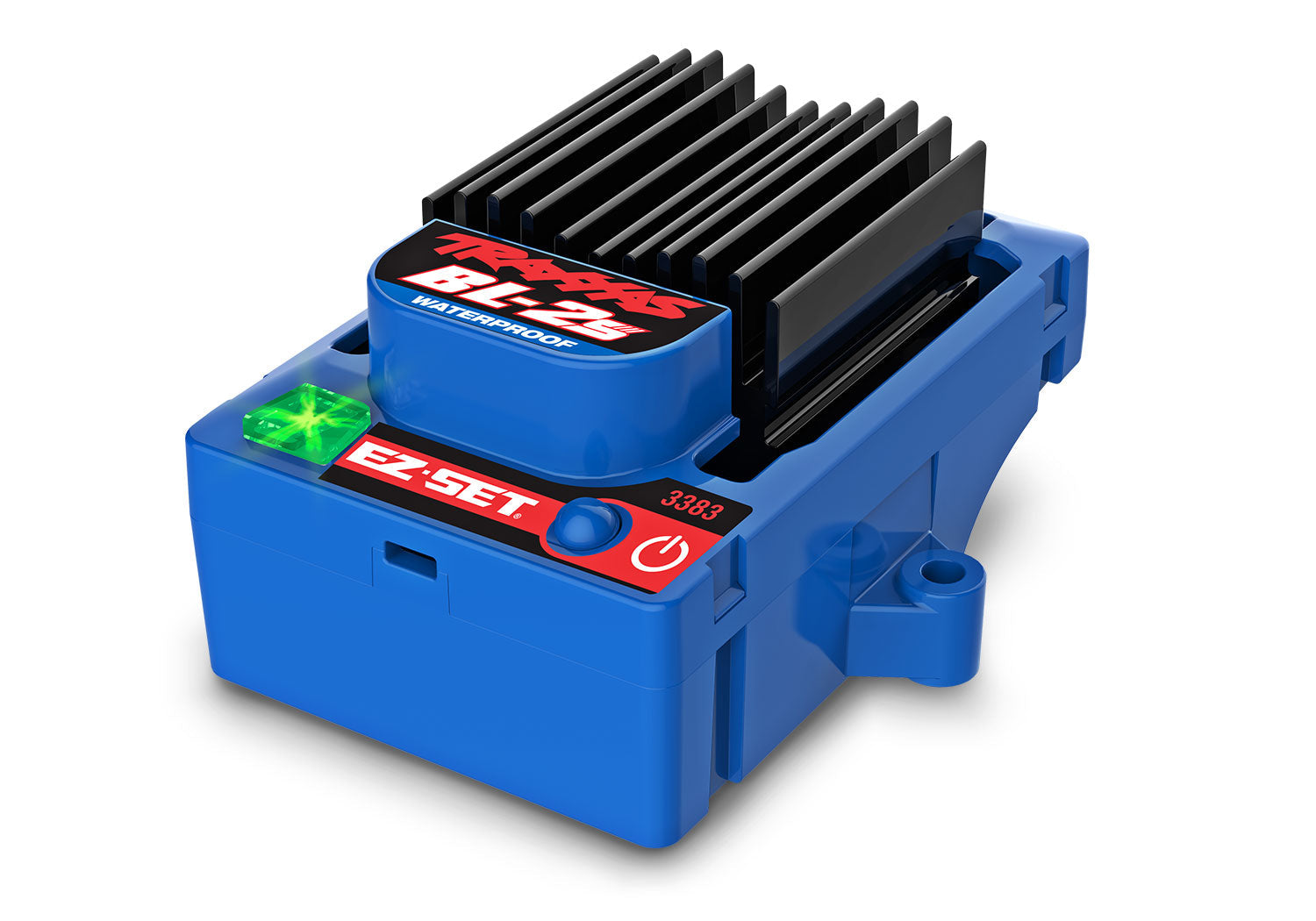

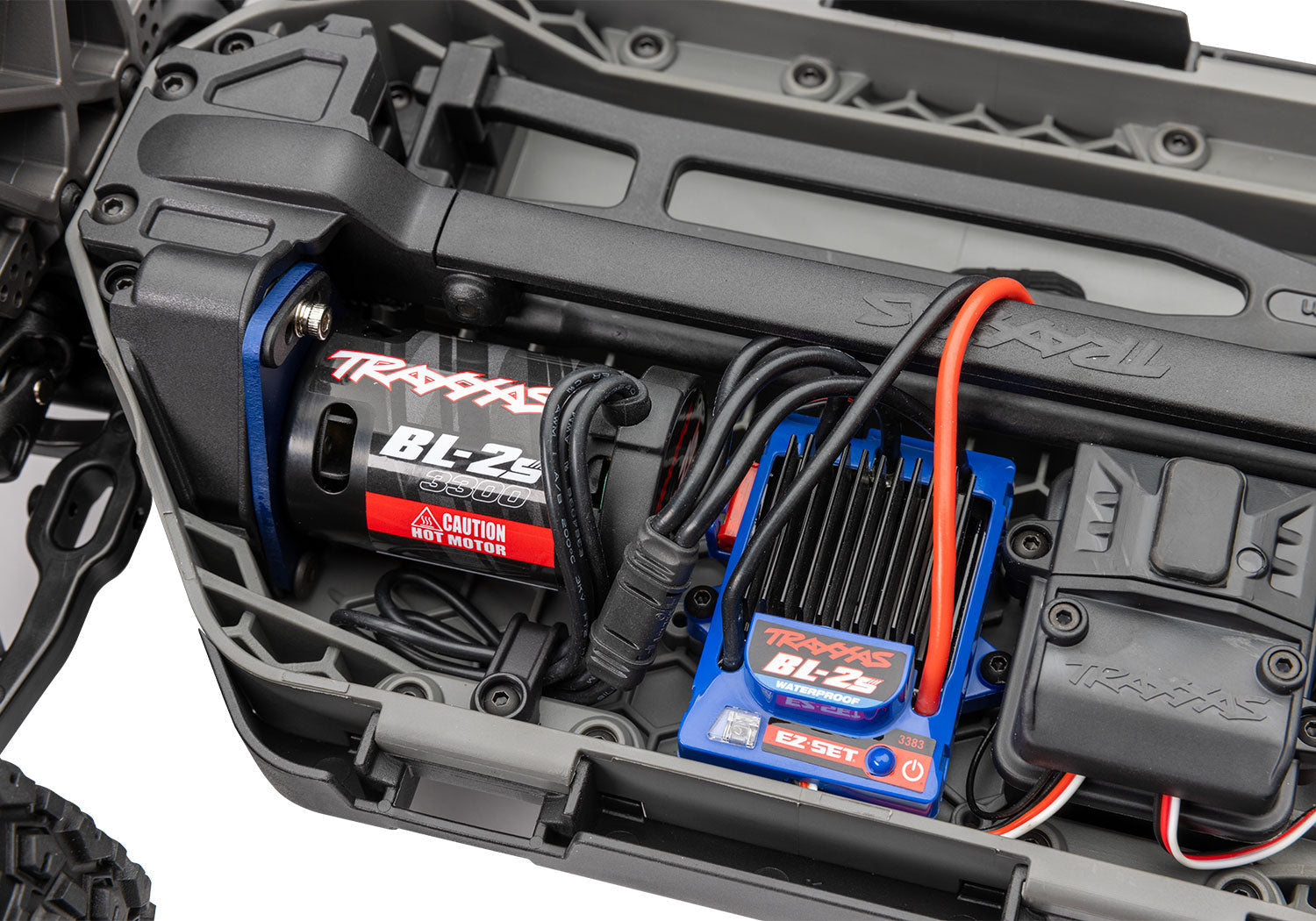

- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)

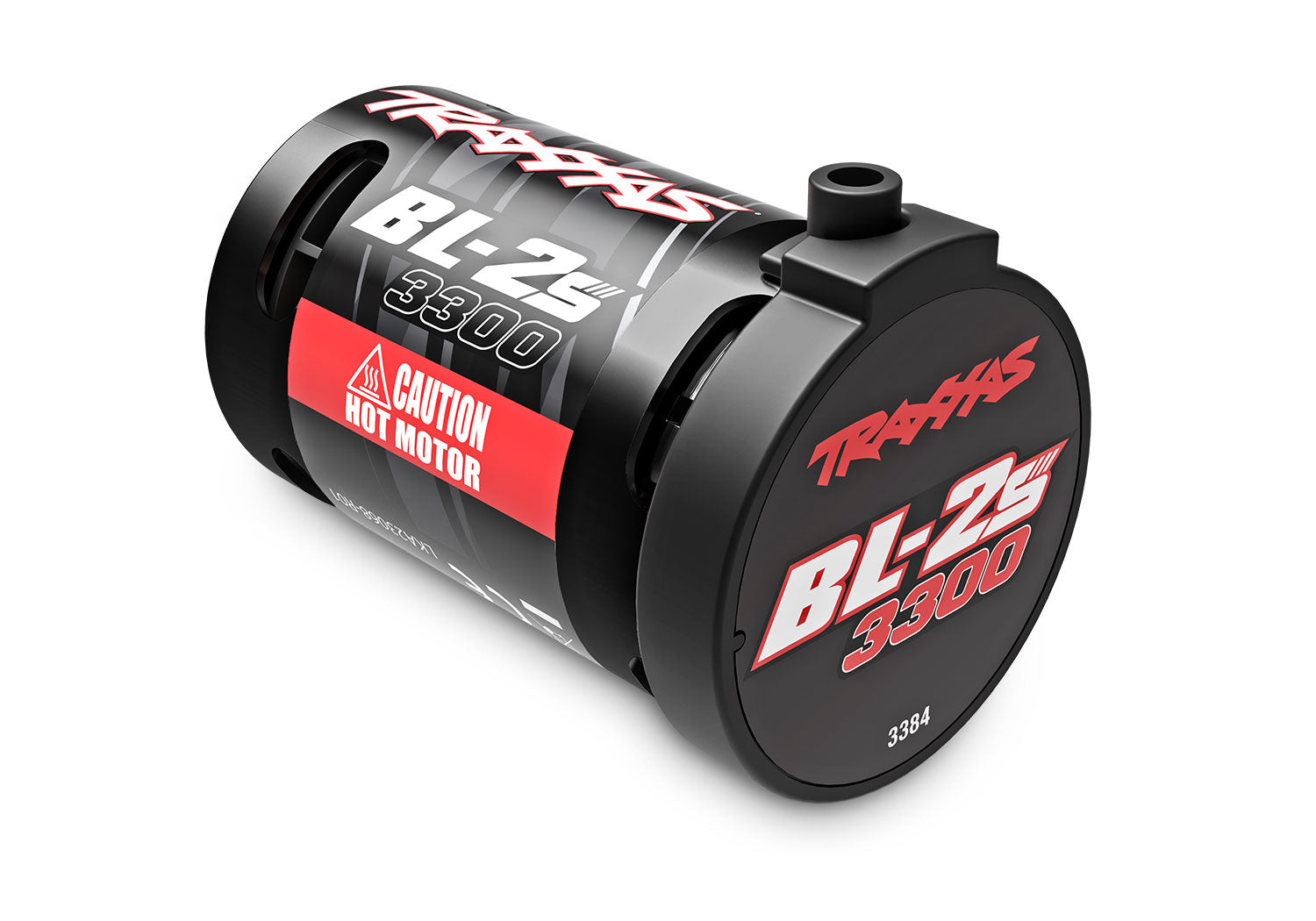

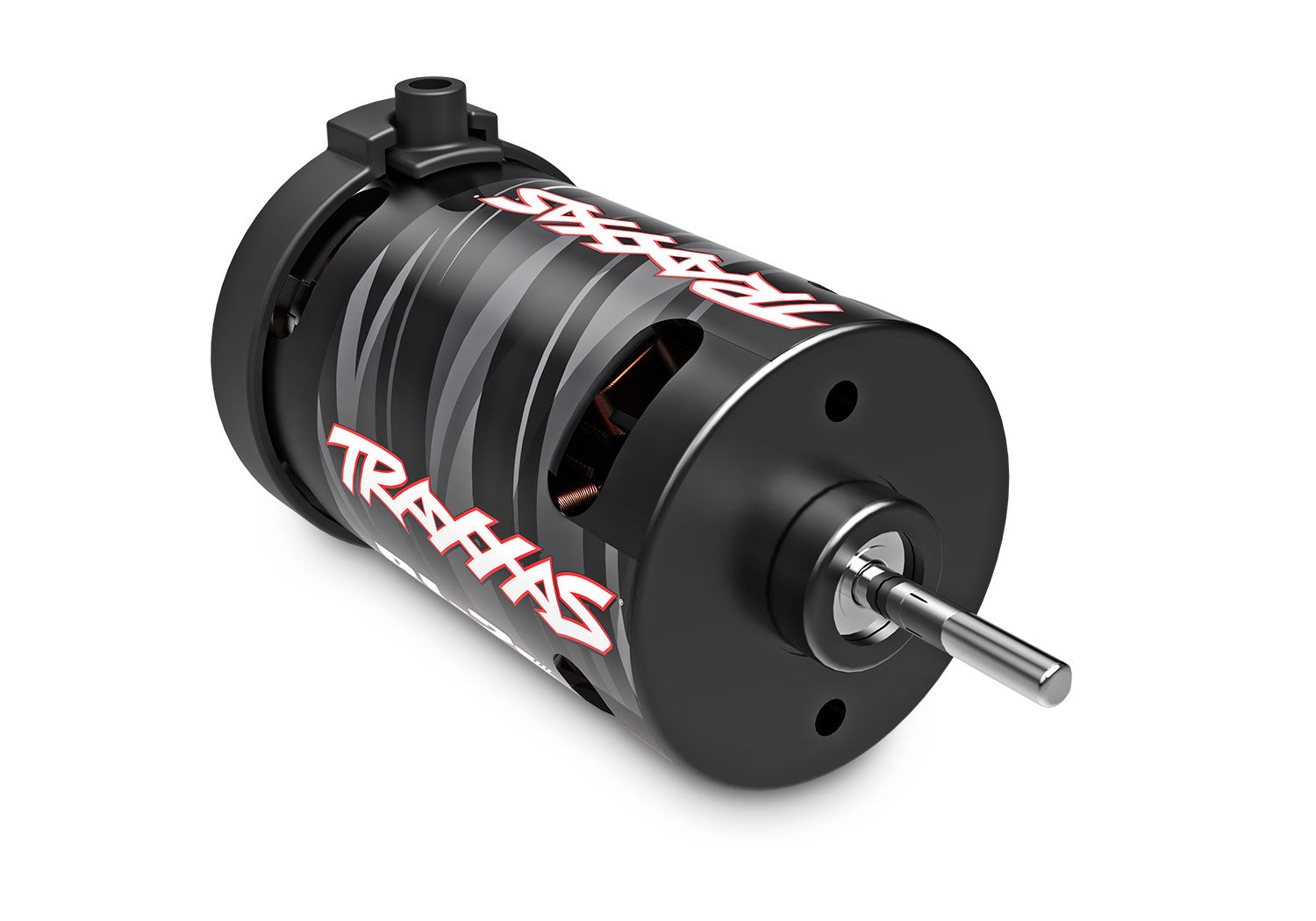

- 3300 kV Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV

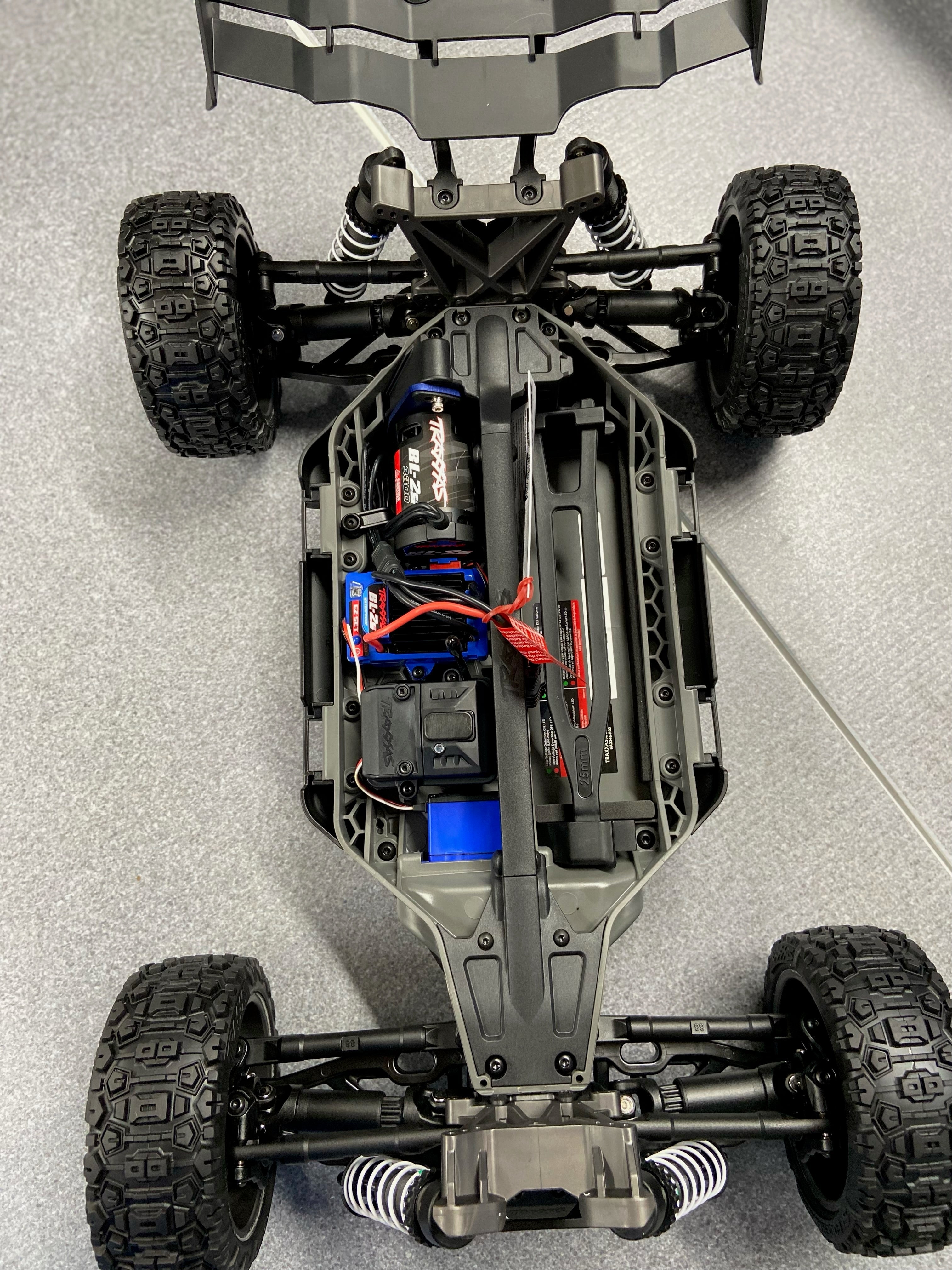

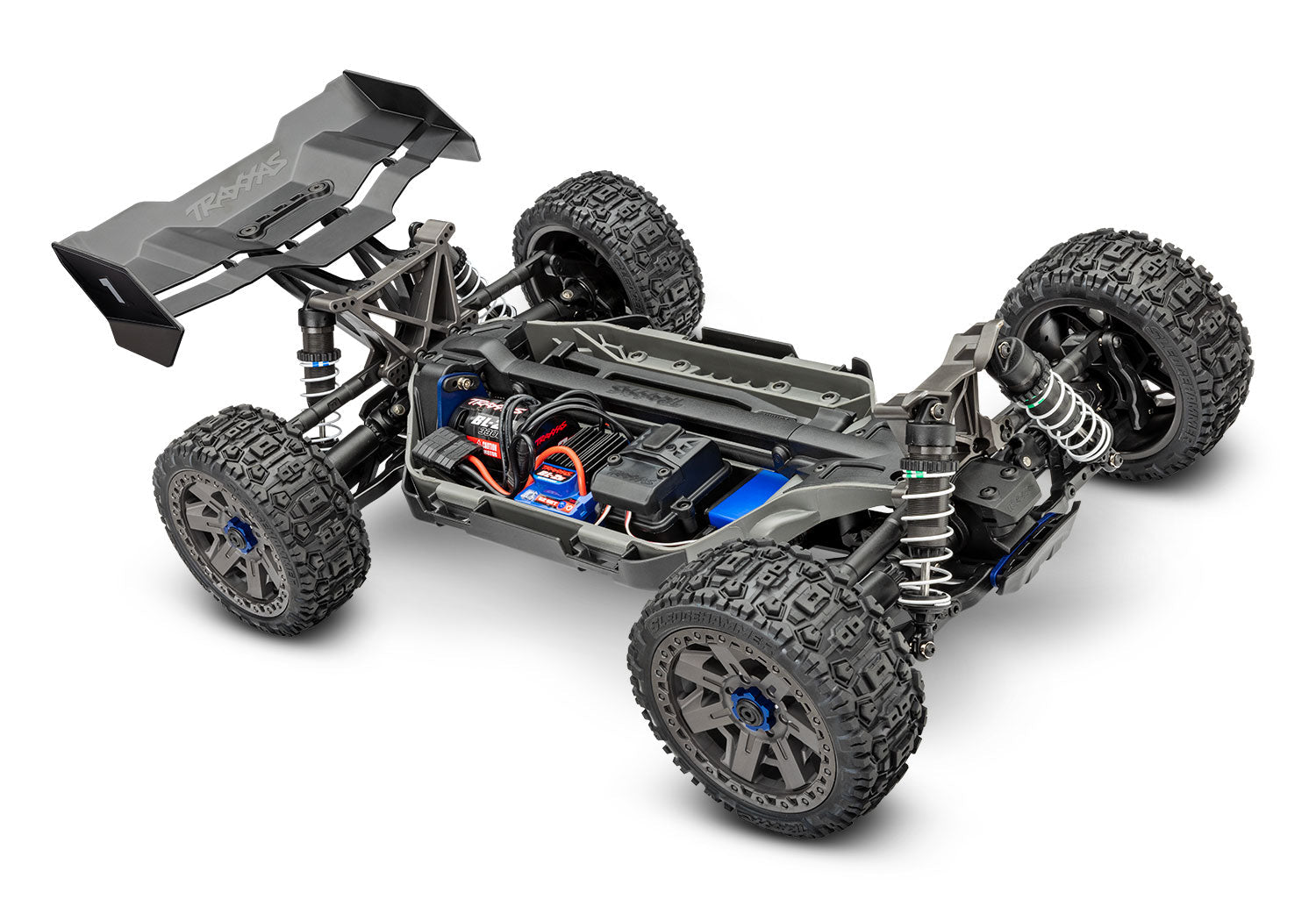

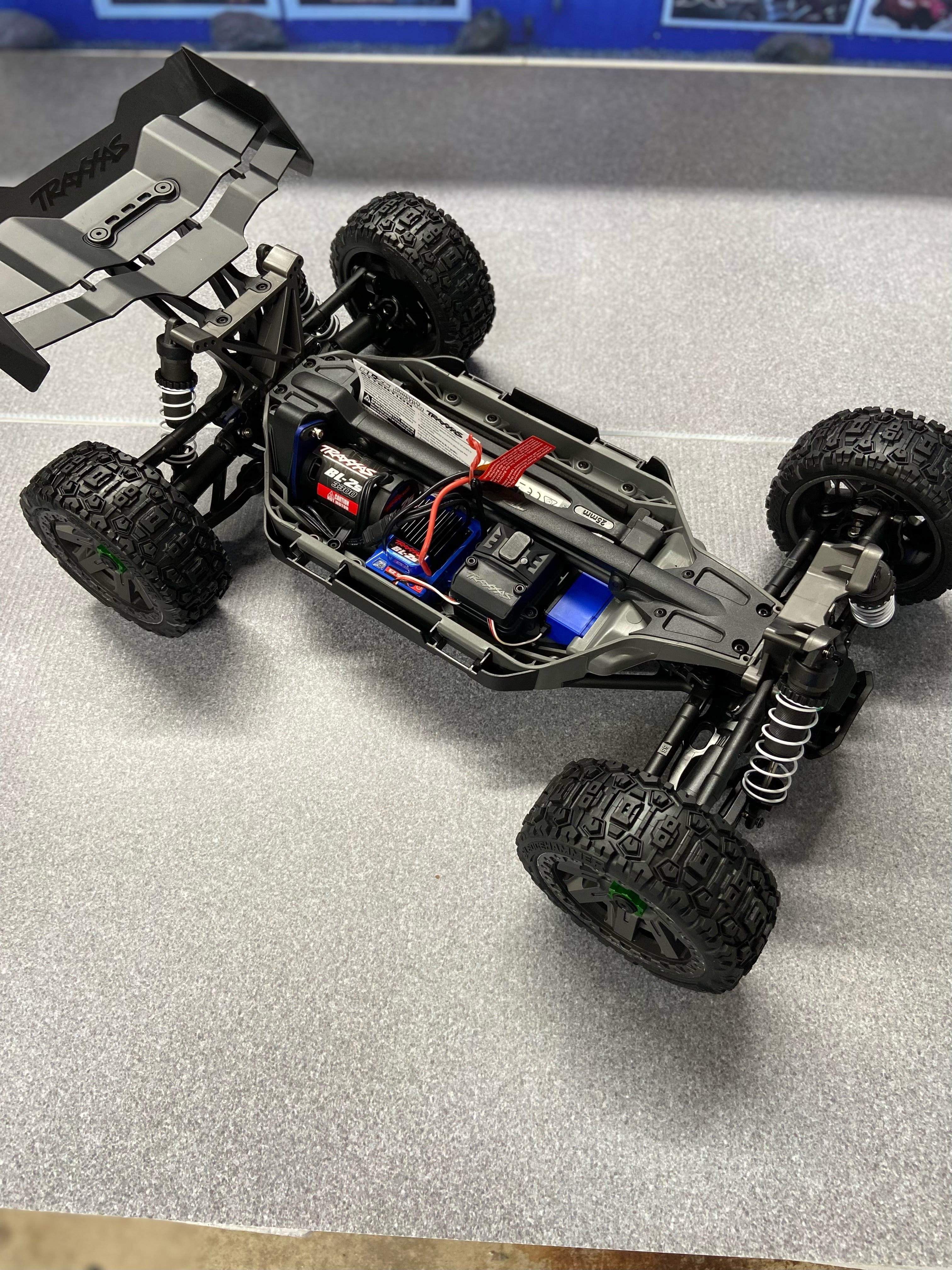

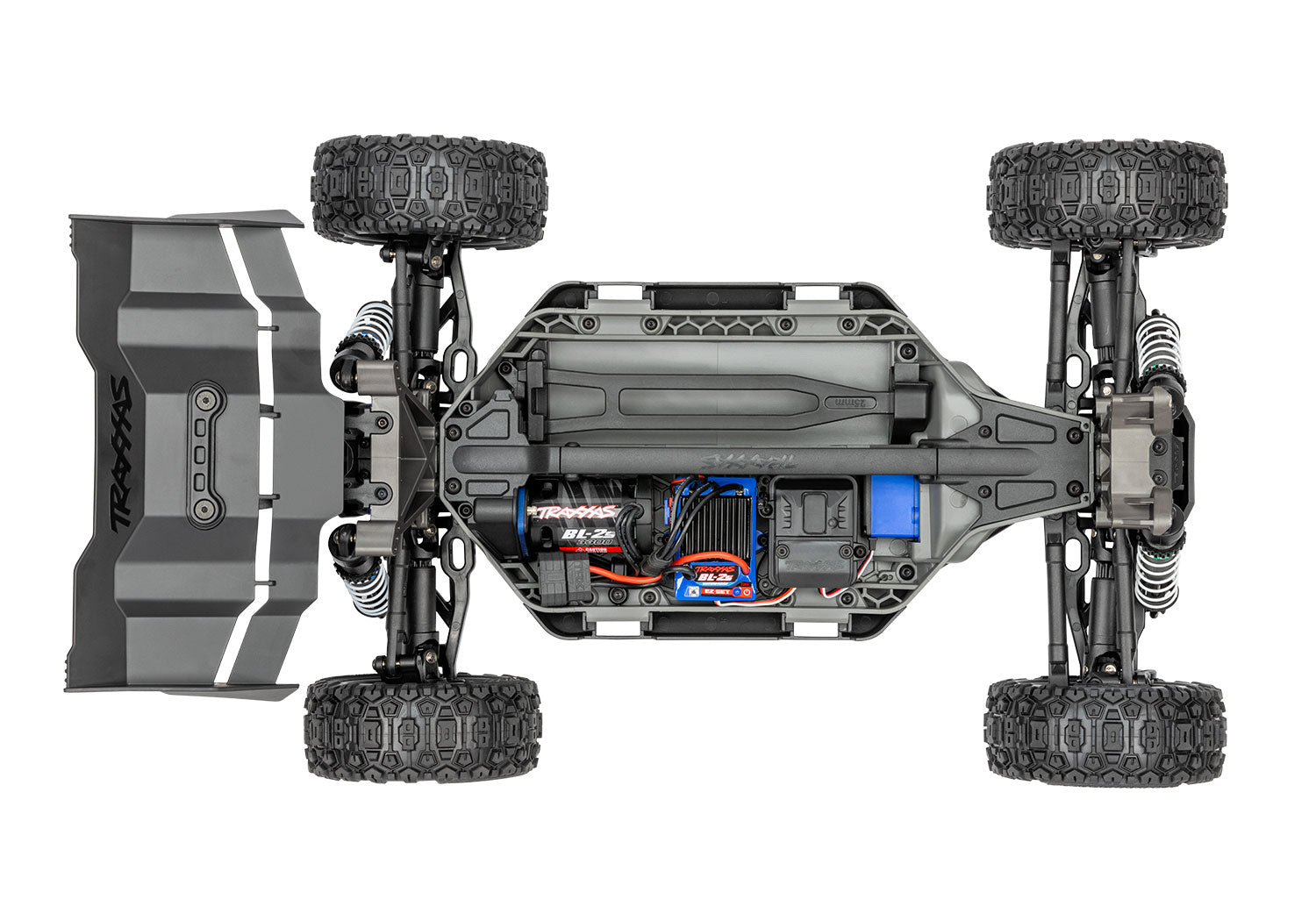

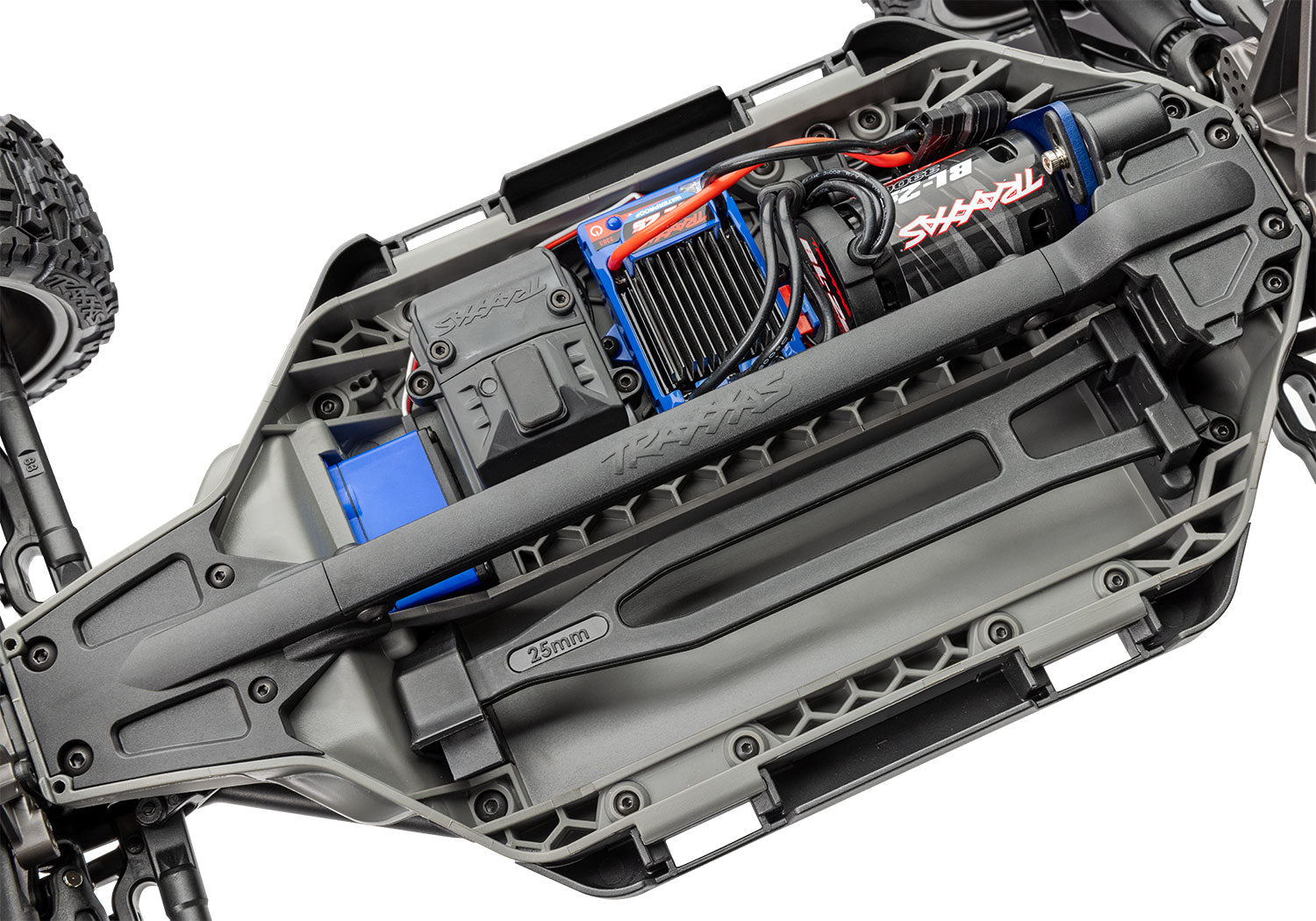

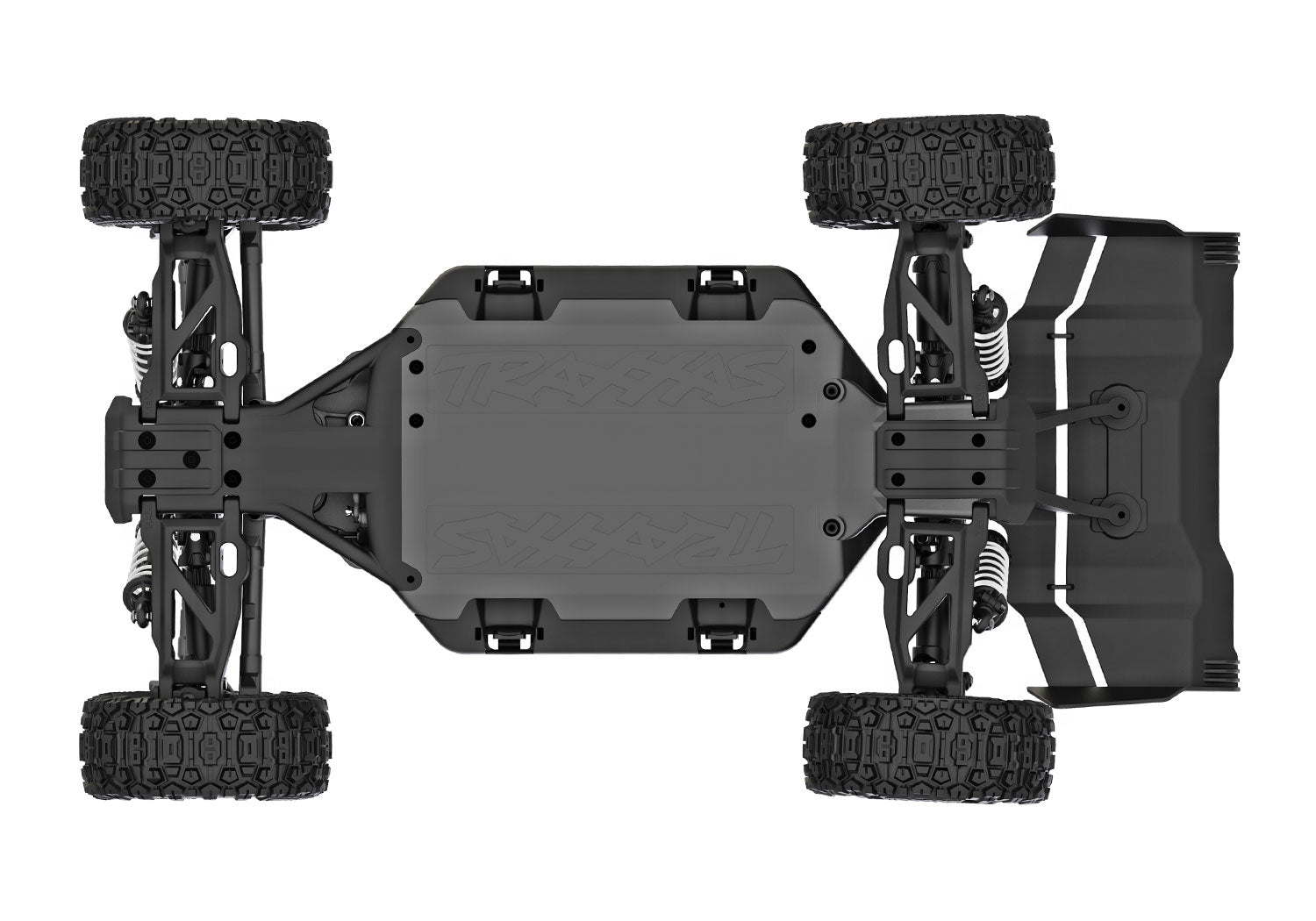

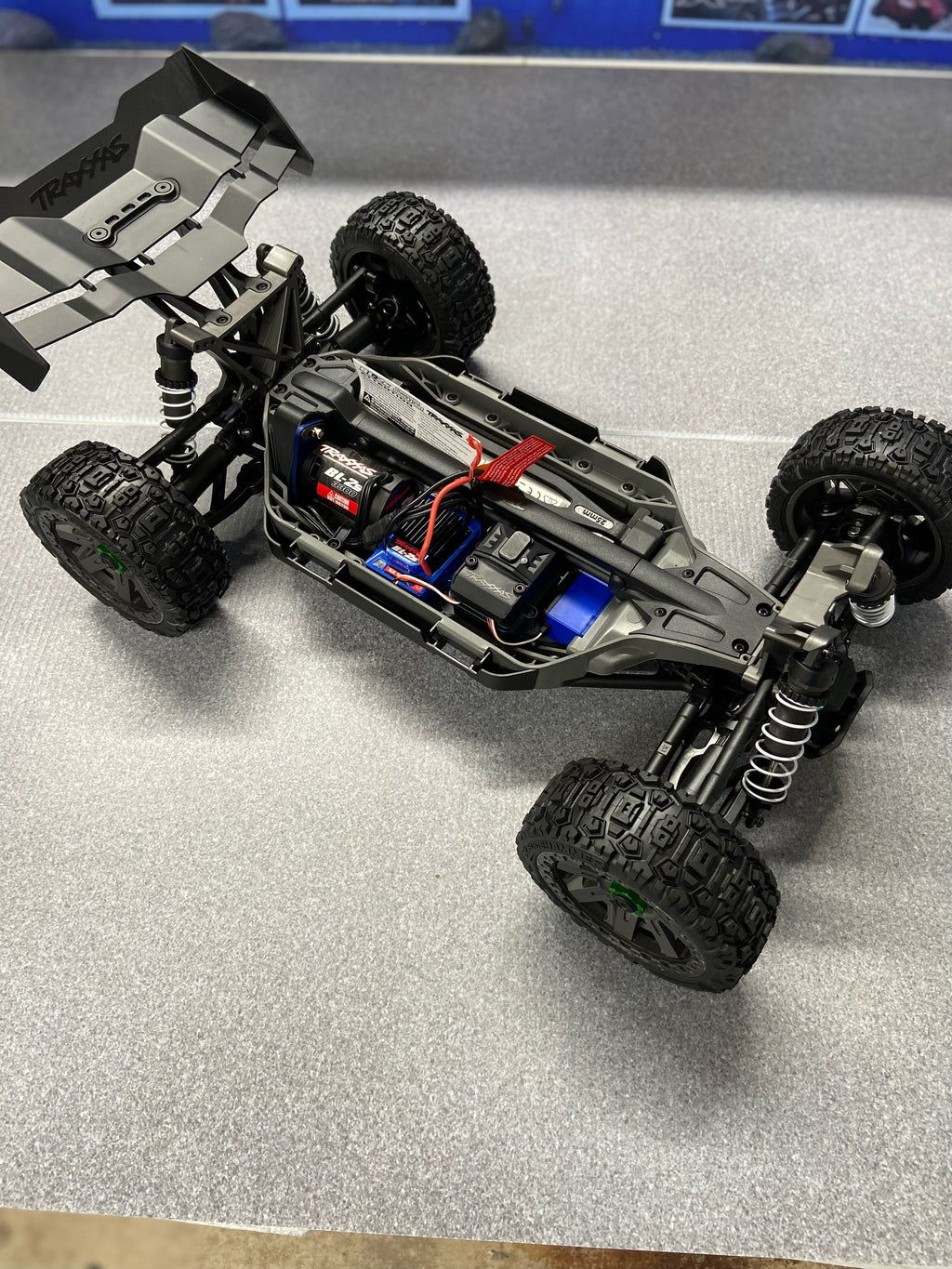

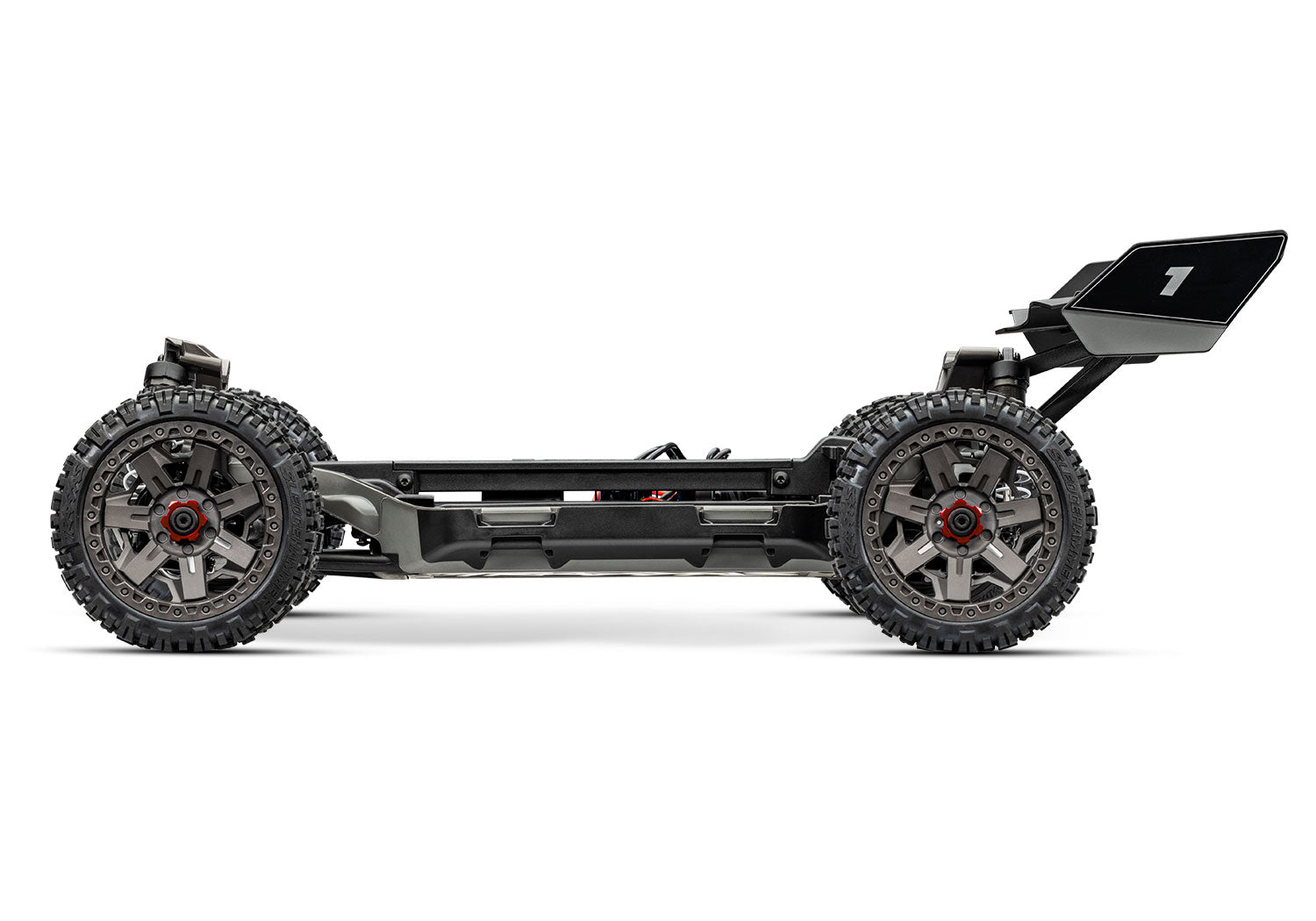

- Chassis

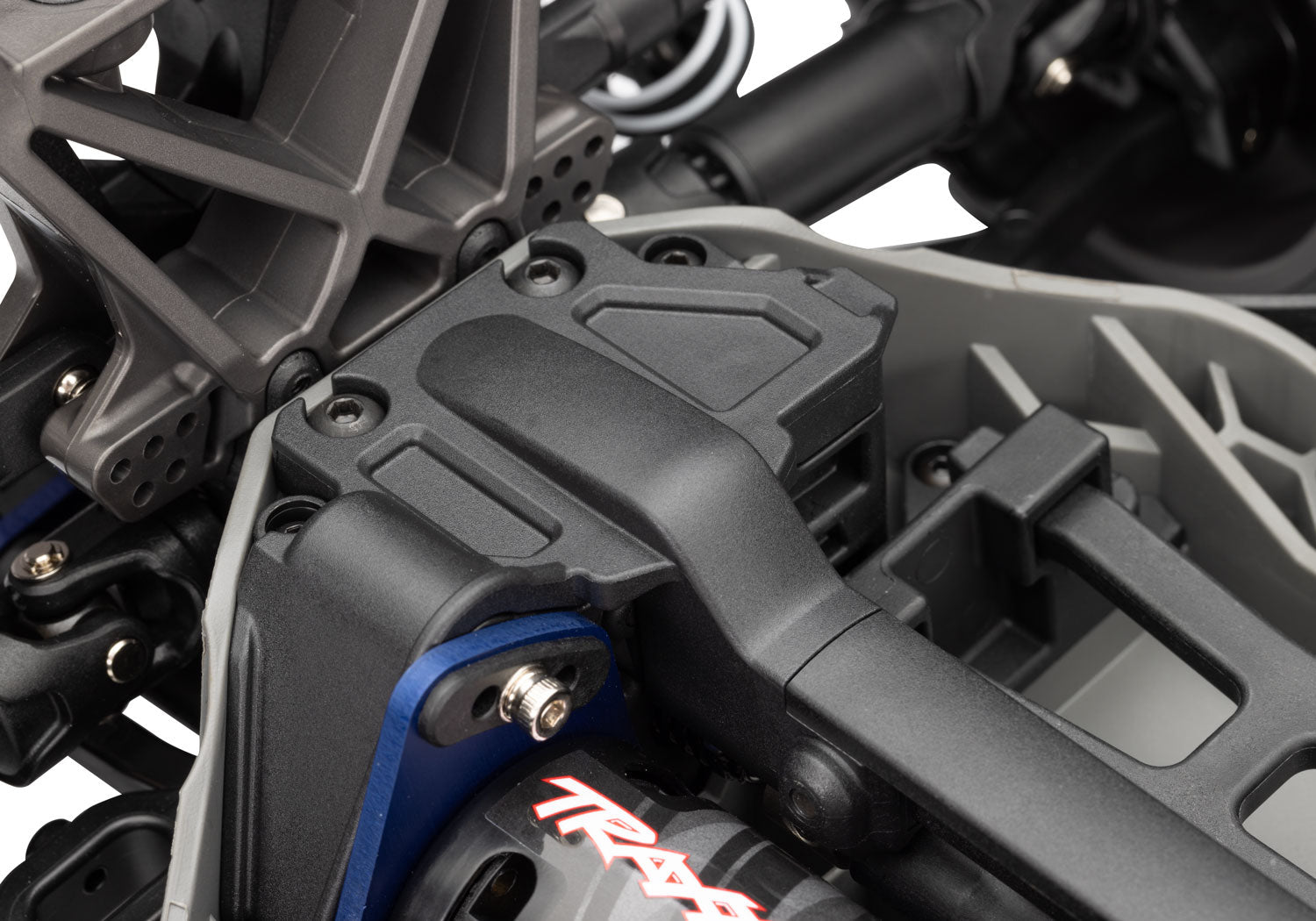

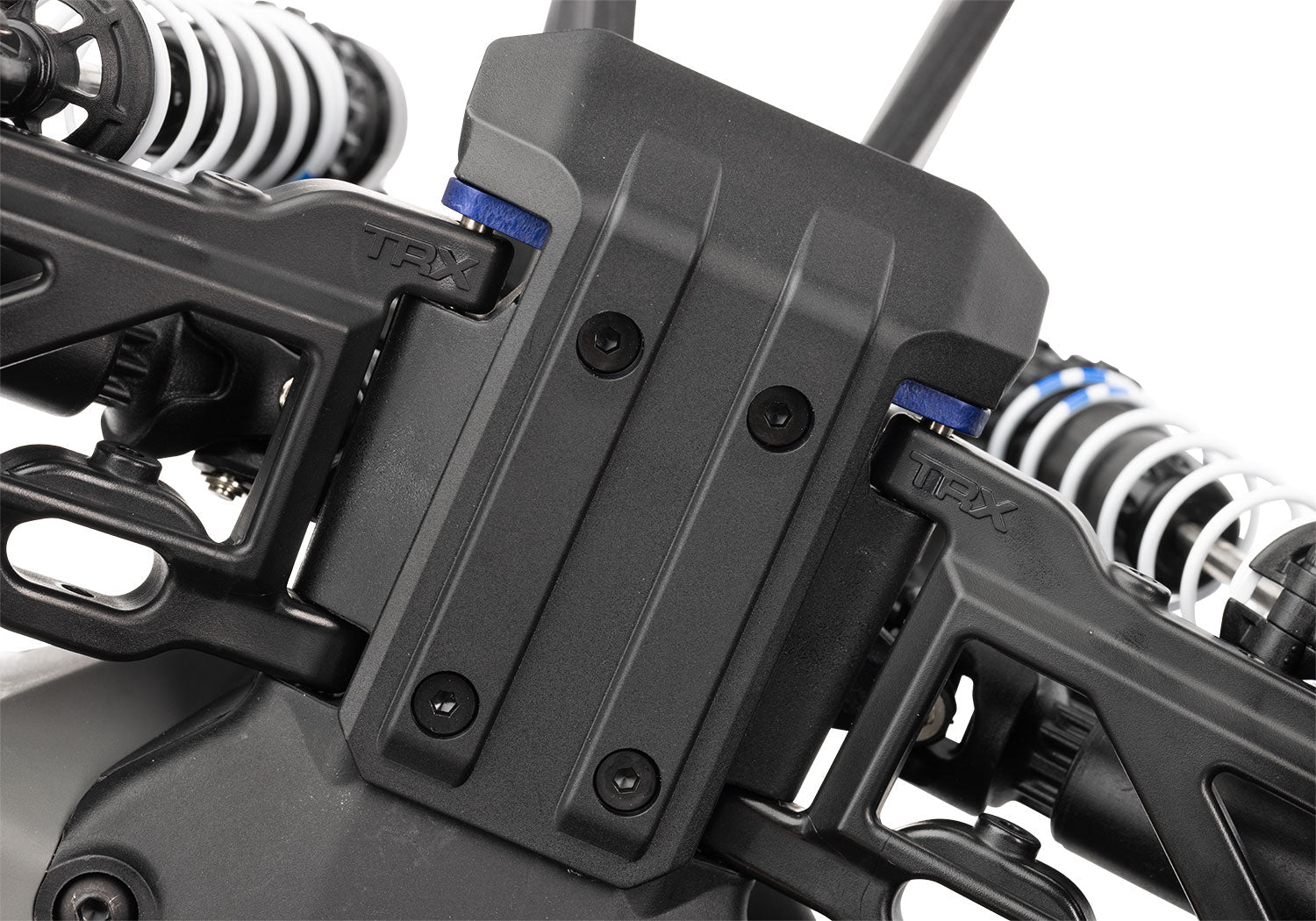

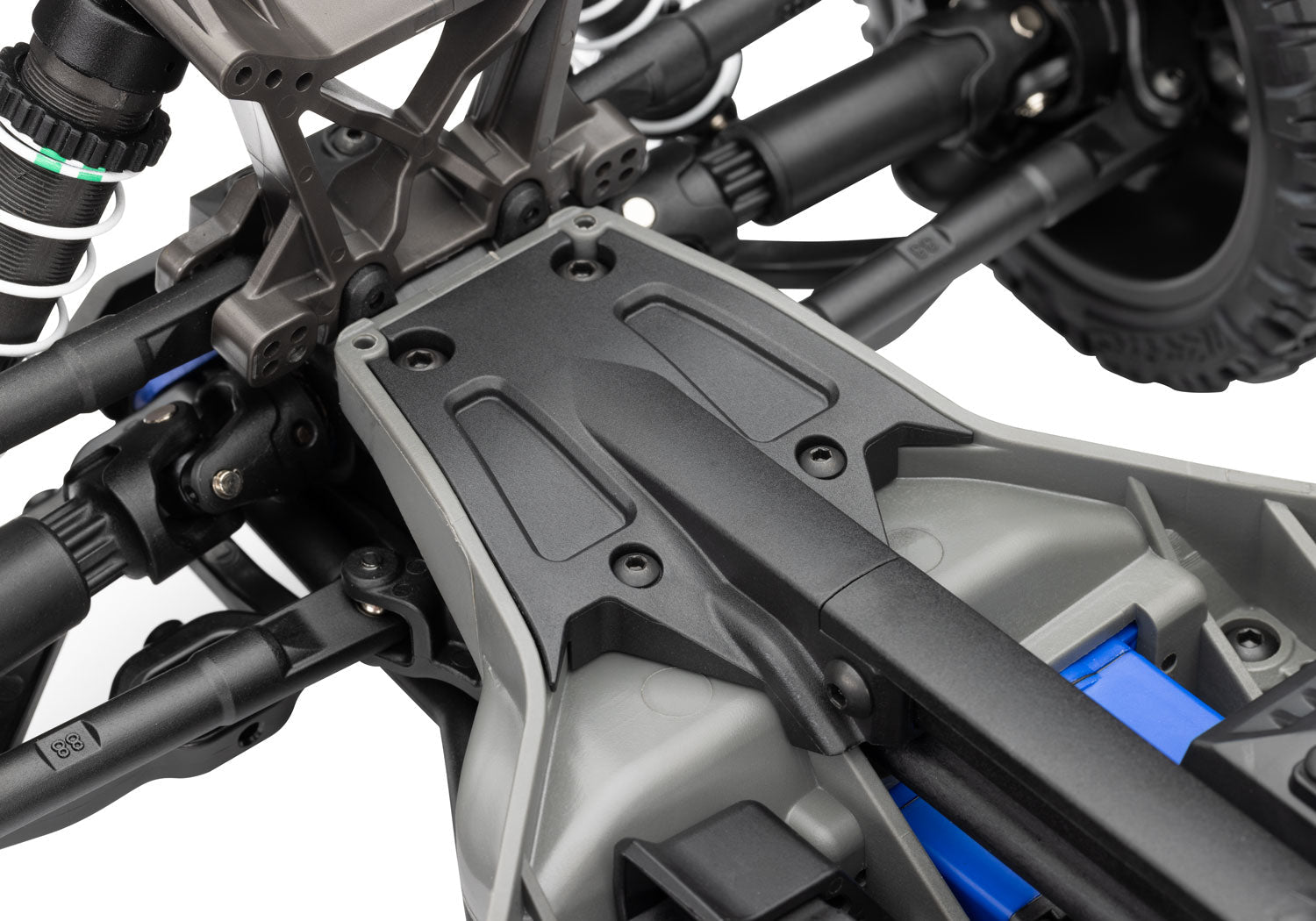

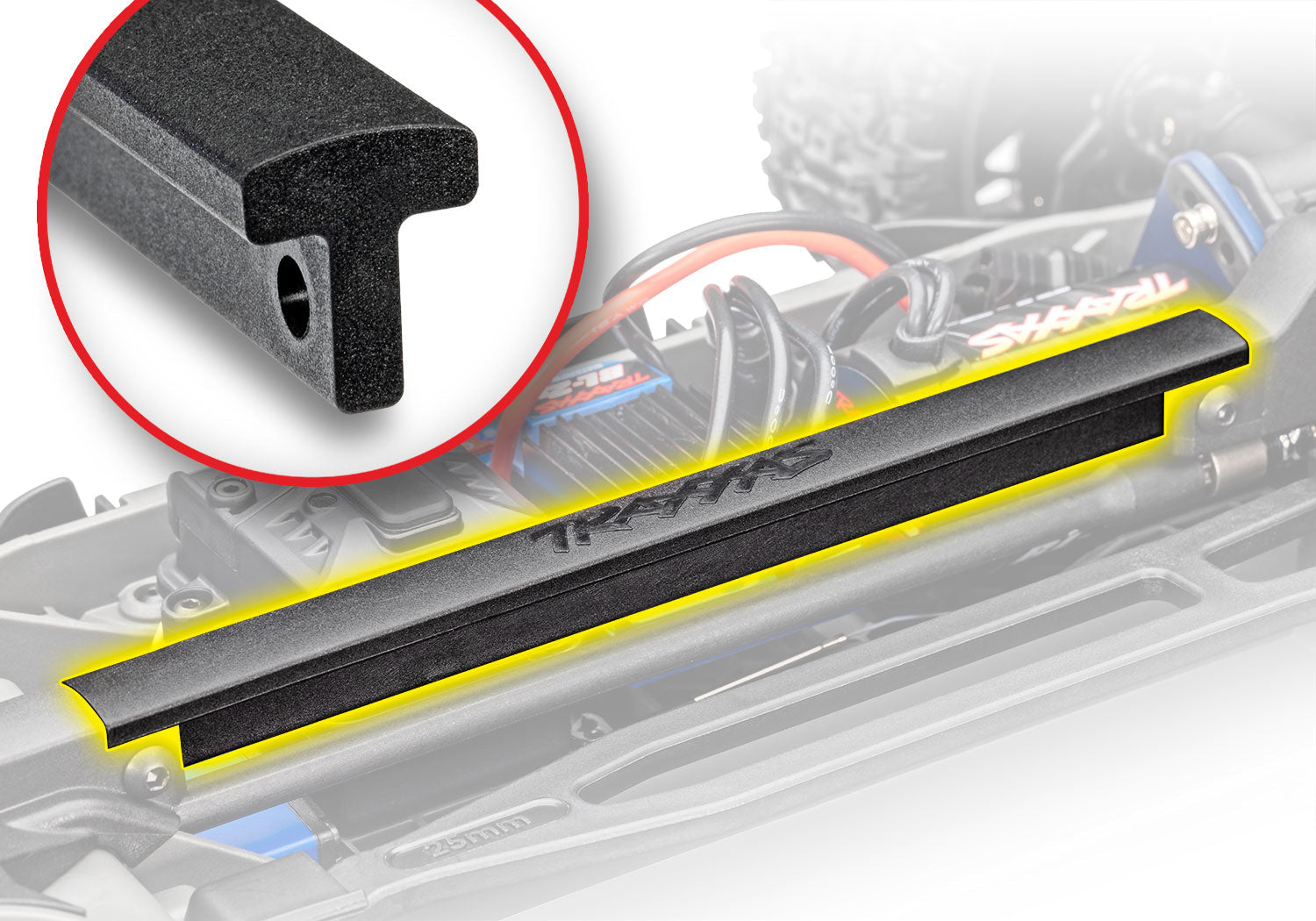

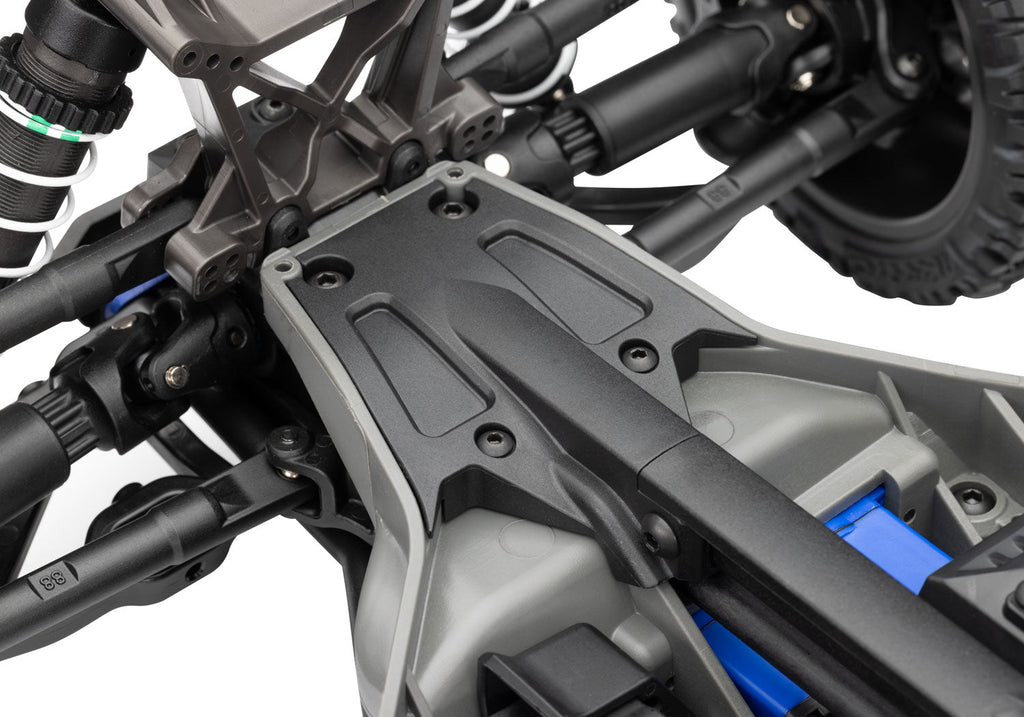

- T-Bar chassis stiffener
- Modular composite tub design
- Secure battery hold-down latch
- Low-CG design

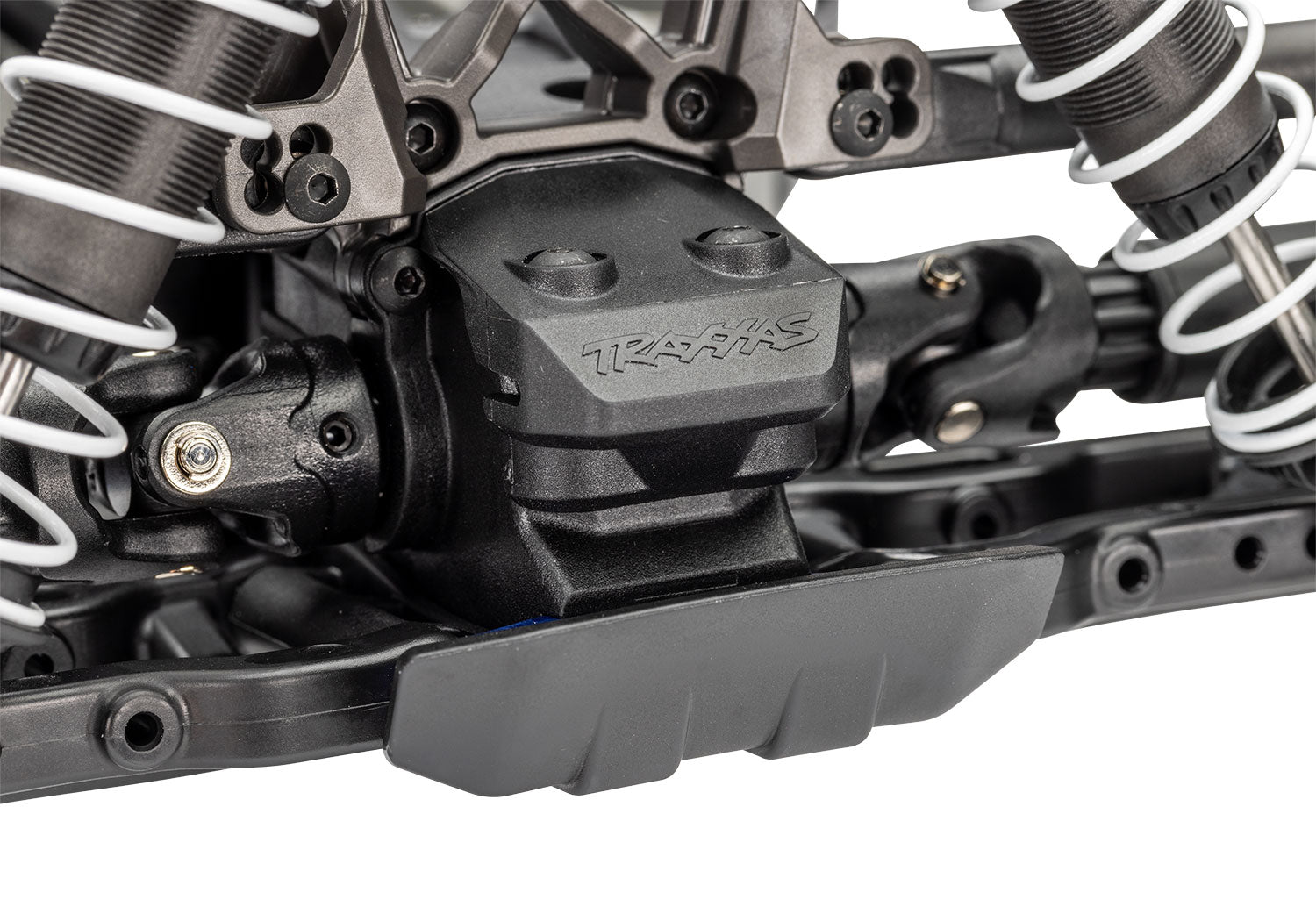

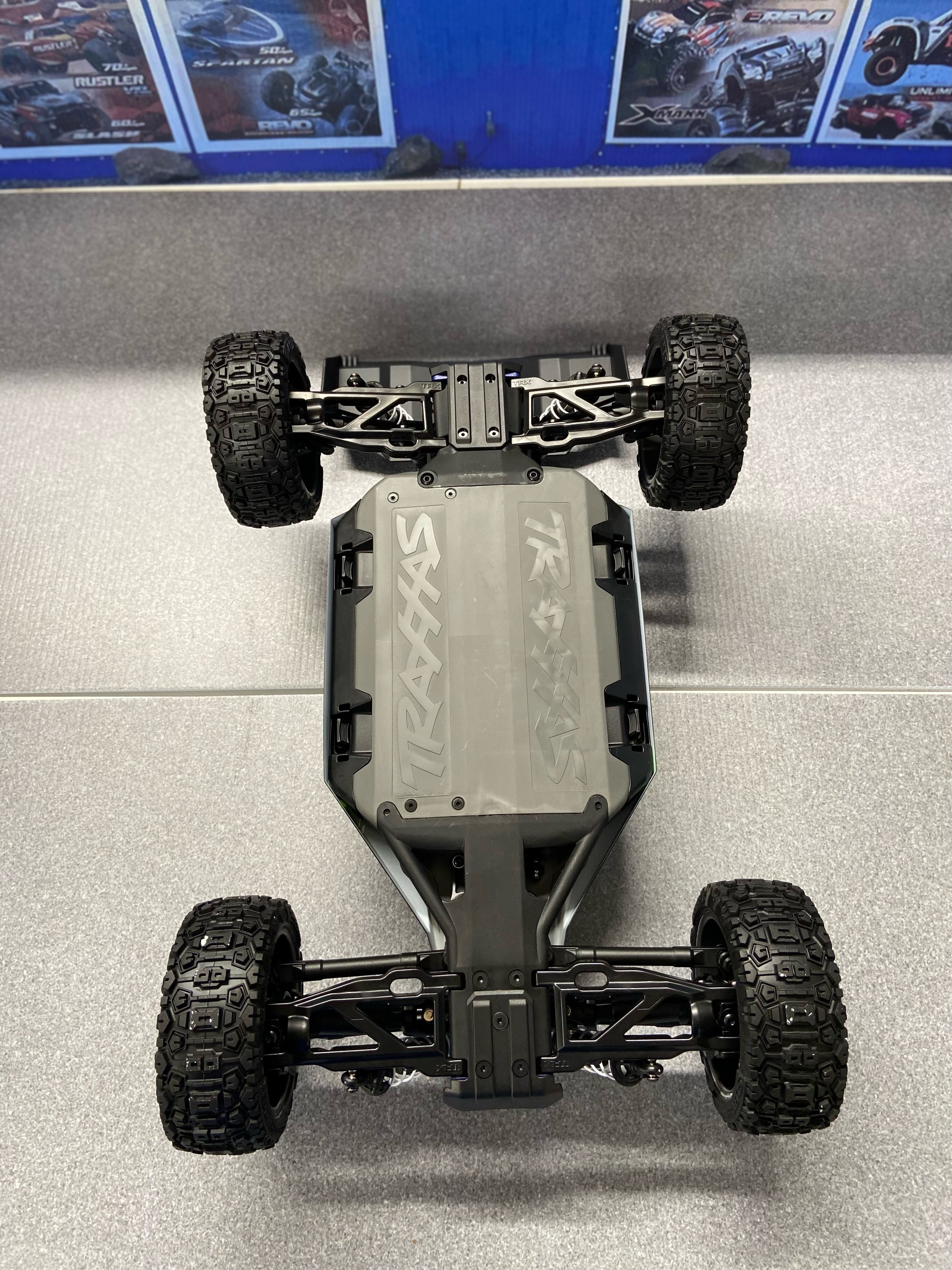

- High-clearance skid plate

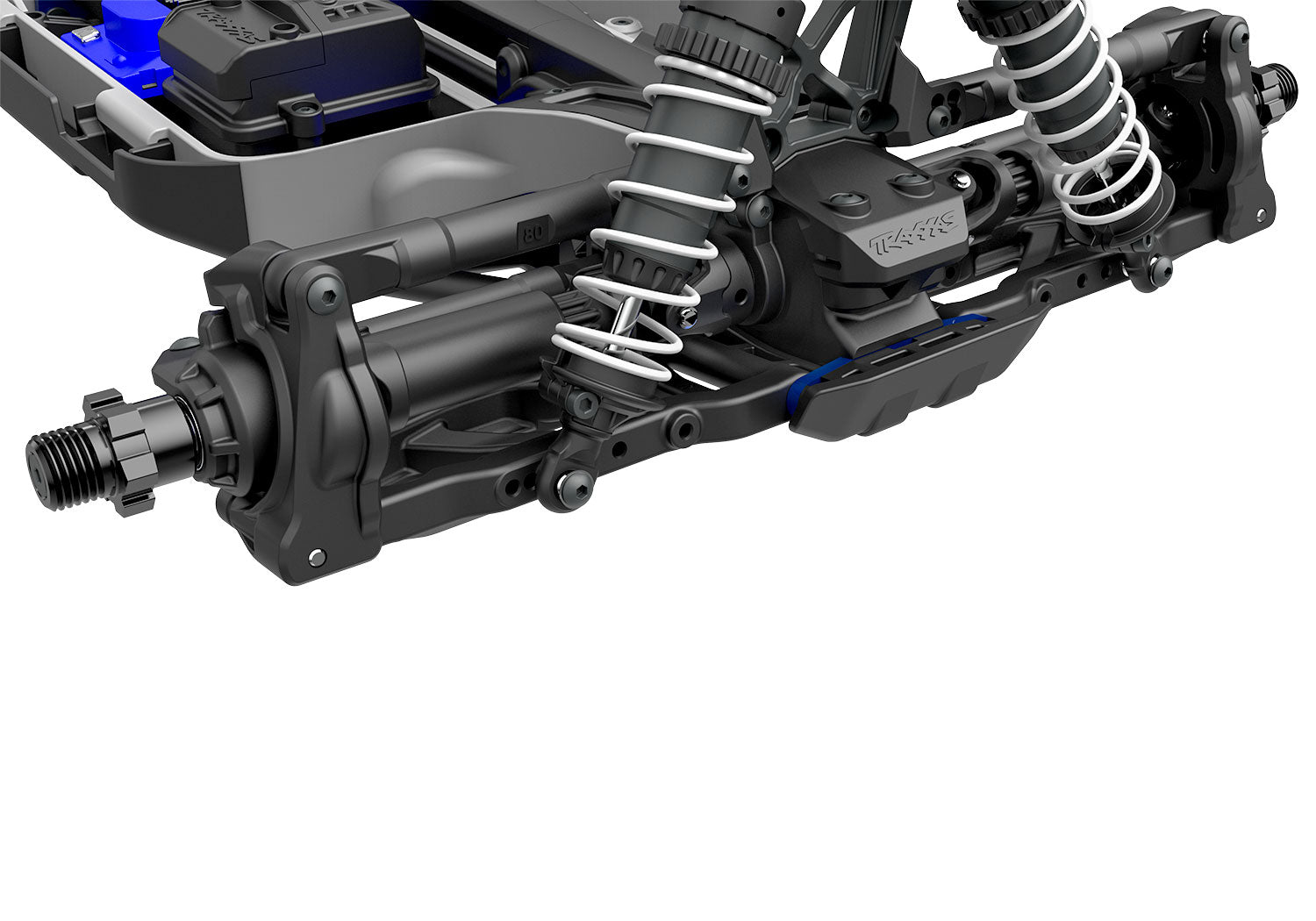

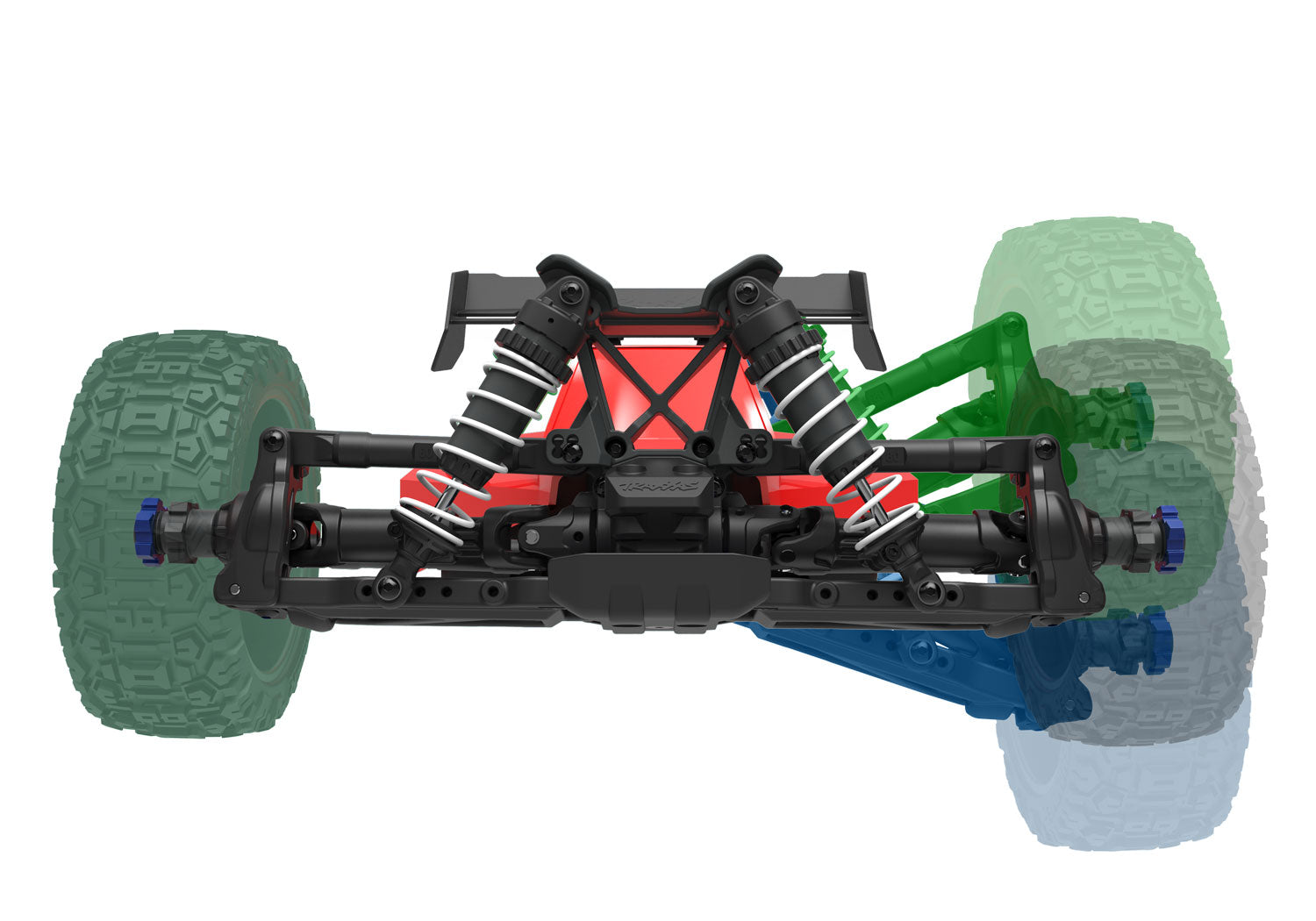

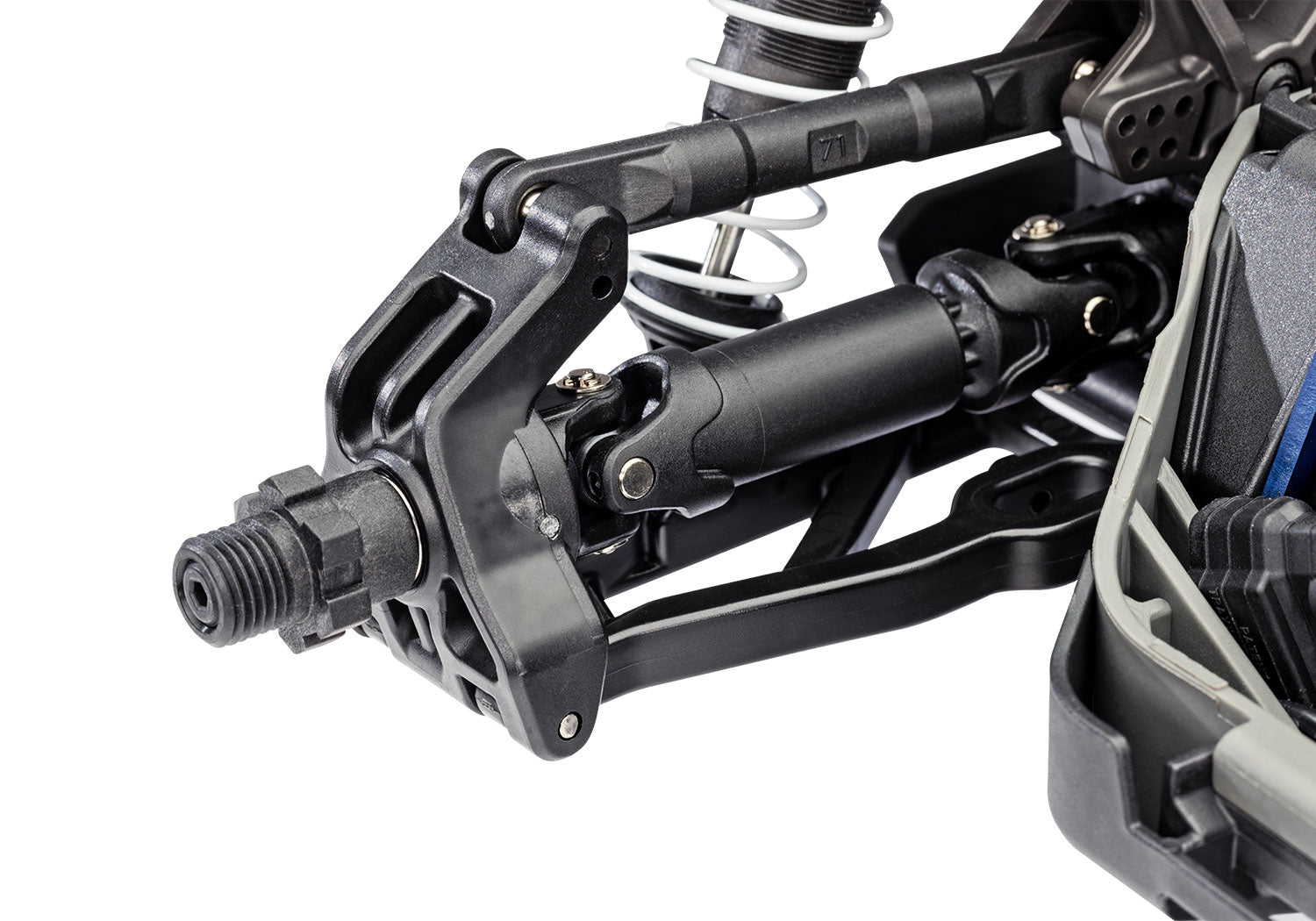

- Suspension

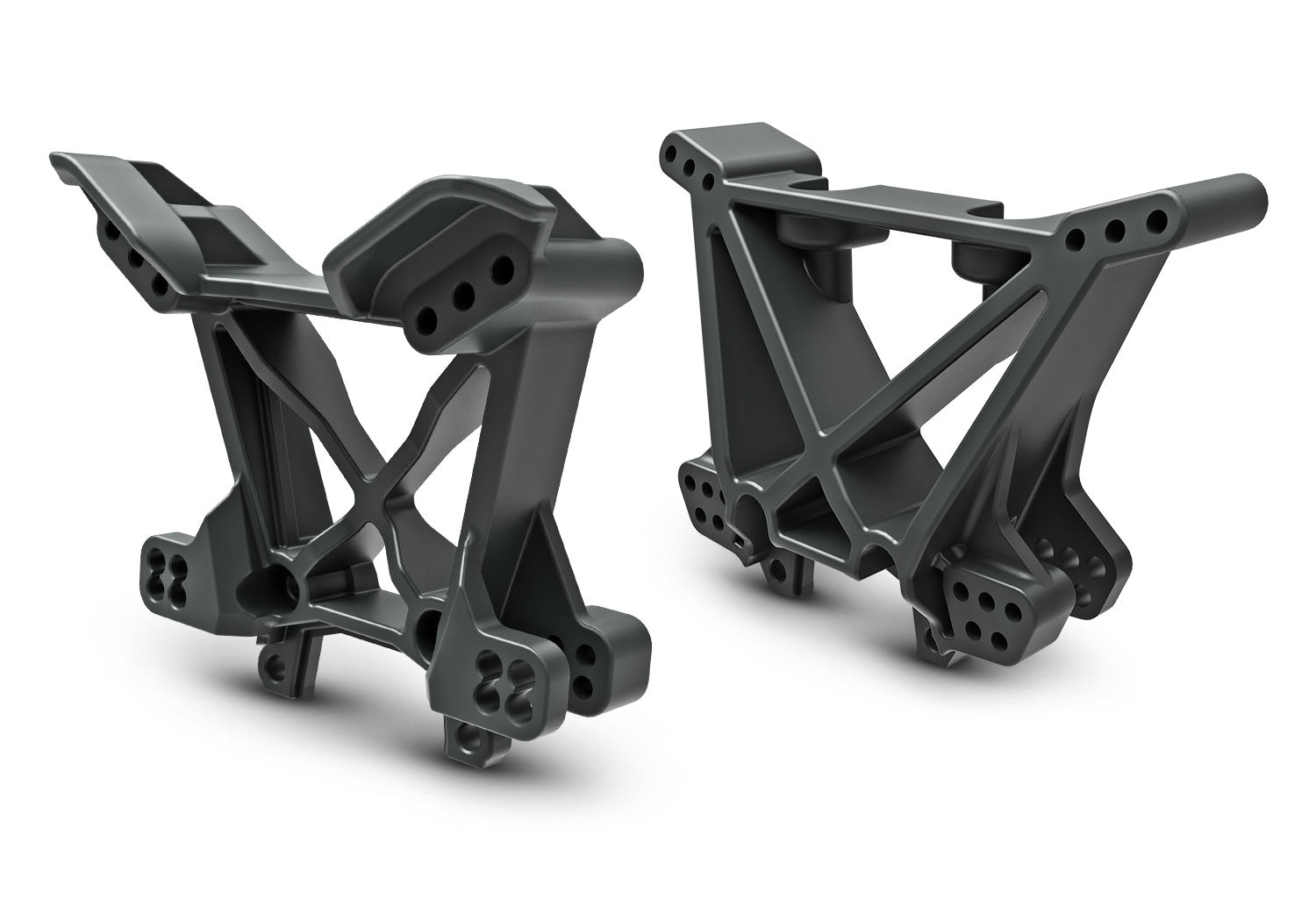

- Heavy duty shock towers
- Reinforced shock mounts

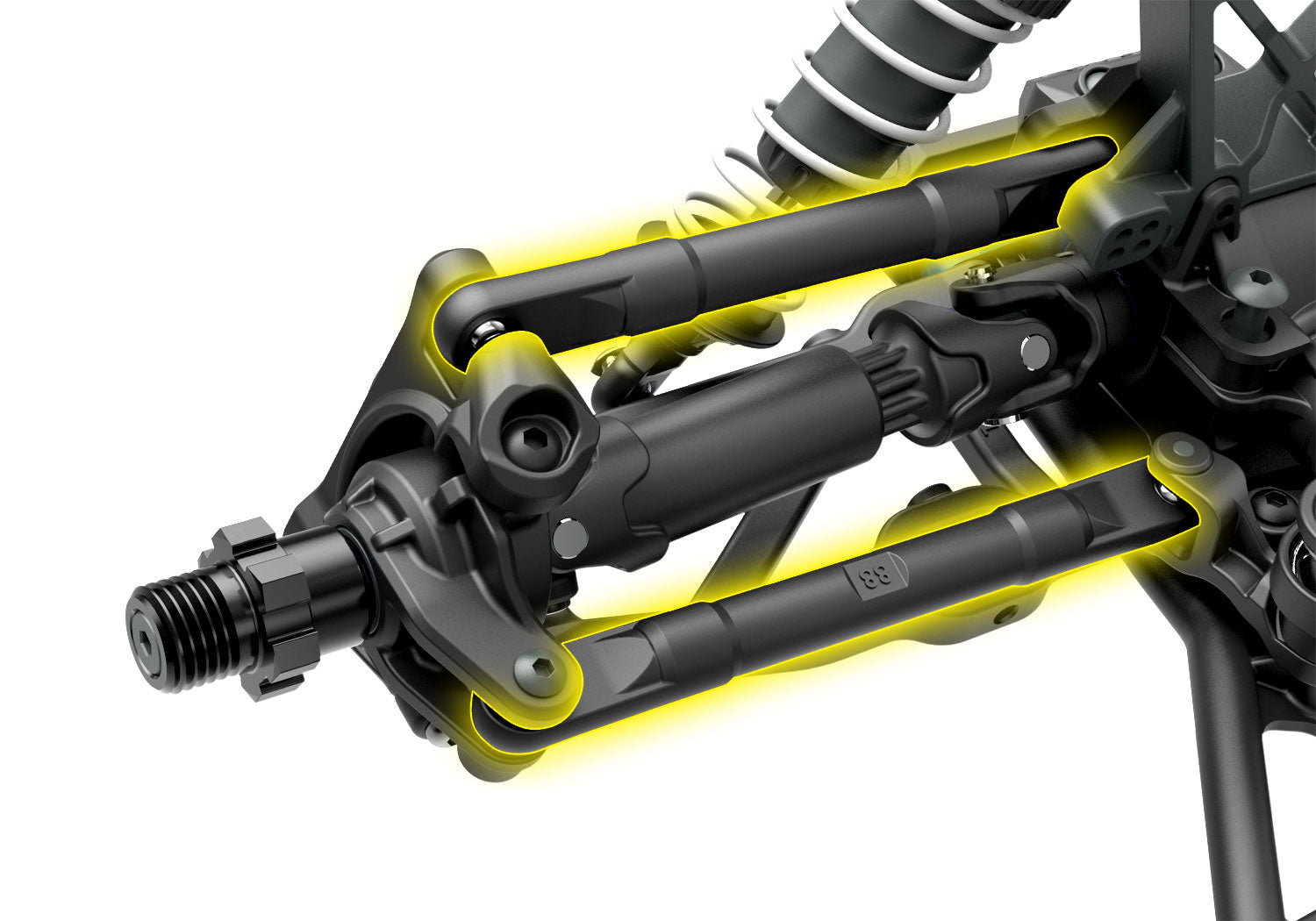

- Double-shear camber link connections
- Heavy duty suspension arms

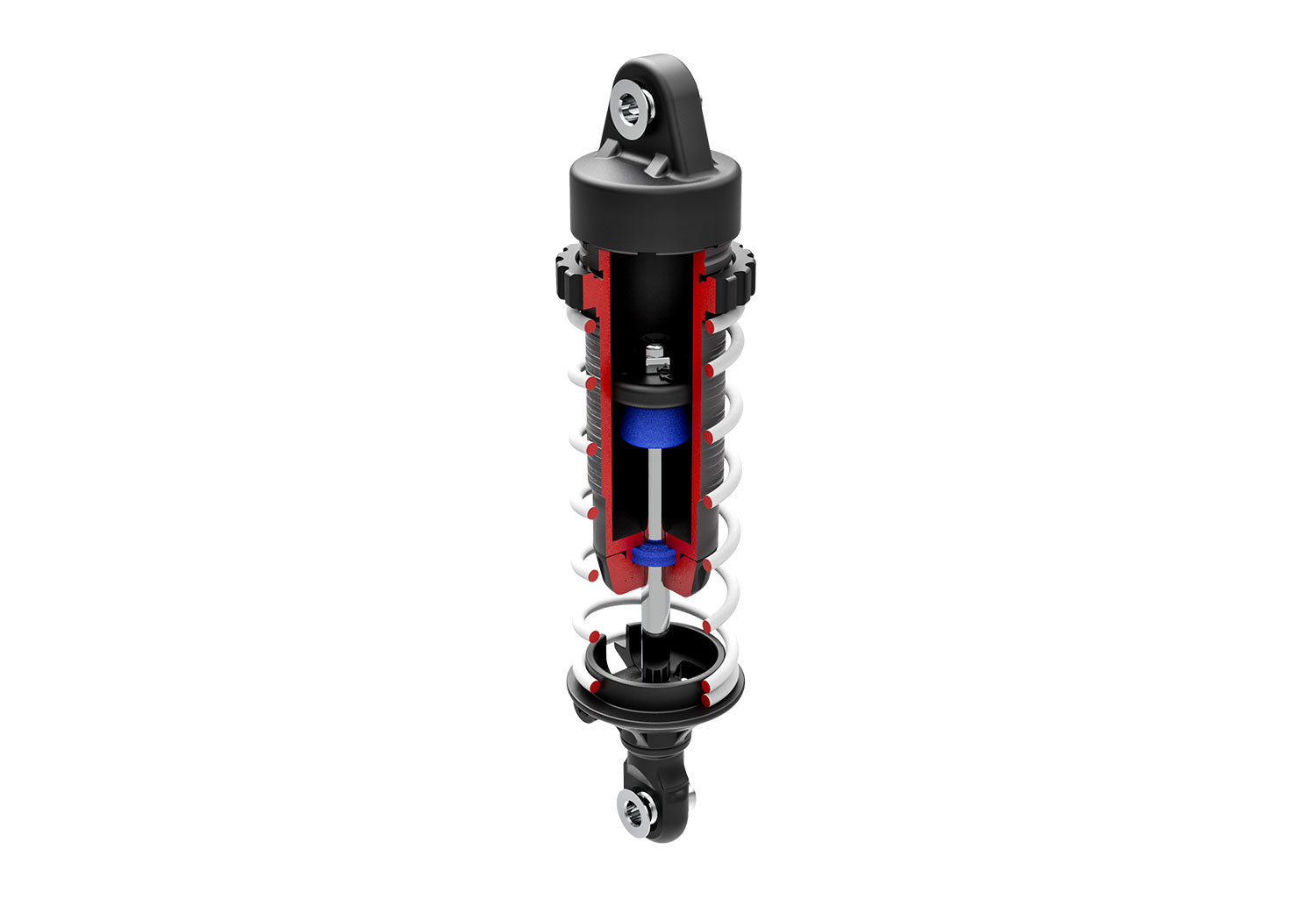

- Oil-filled GTR shocks
- Threaded shock collars for precise ride height adjustment
- Large oil capacity for consistent damping
- White powder-coated springs
- Driveline
- Full-time shaft-driven 4-wheel drive

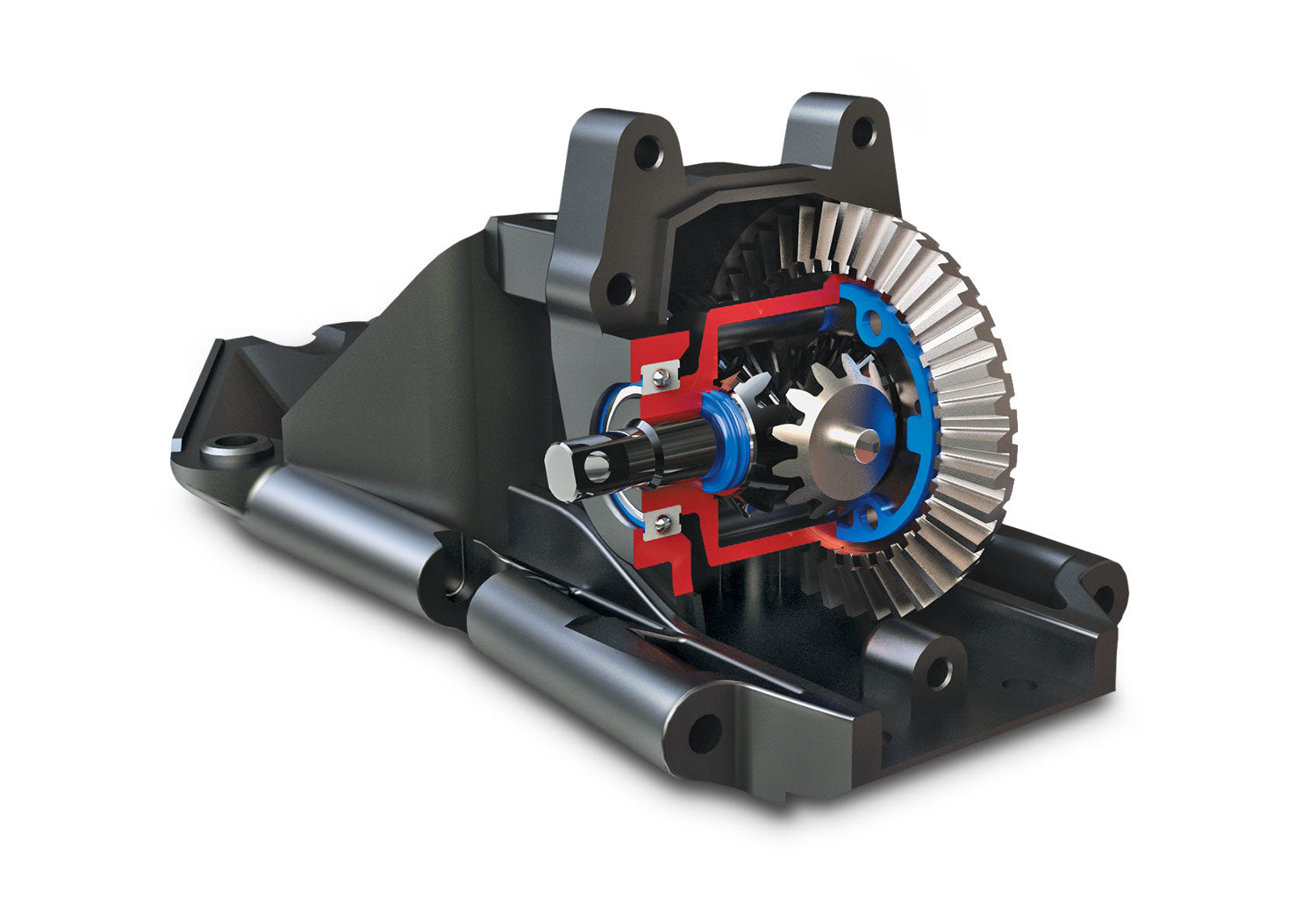

- Sealed steel gear front and rear differentials
- Large 32-pitch spur gear
- Heavy-duty slipper clutch

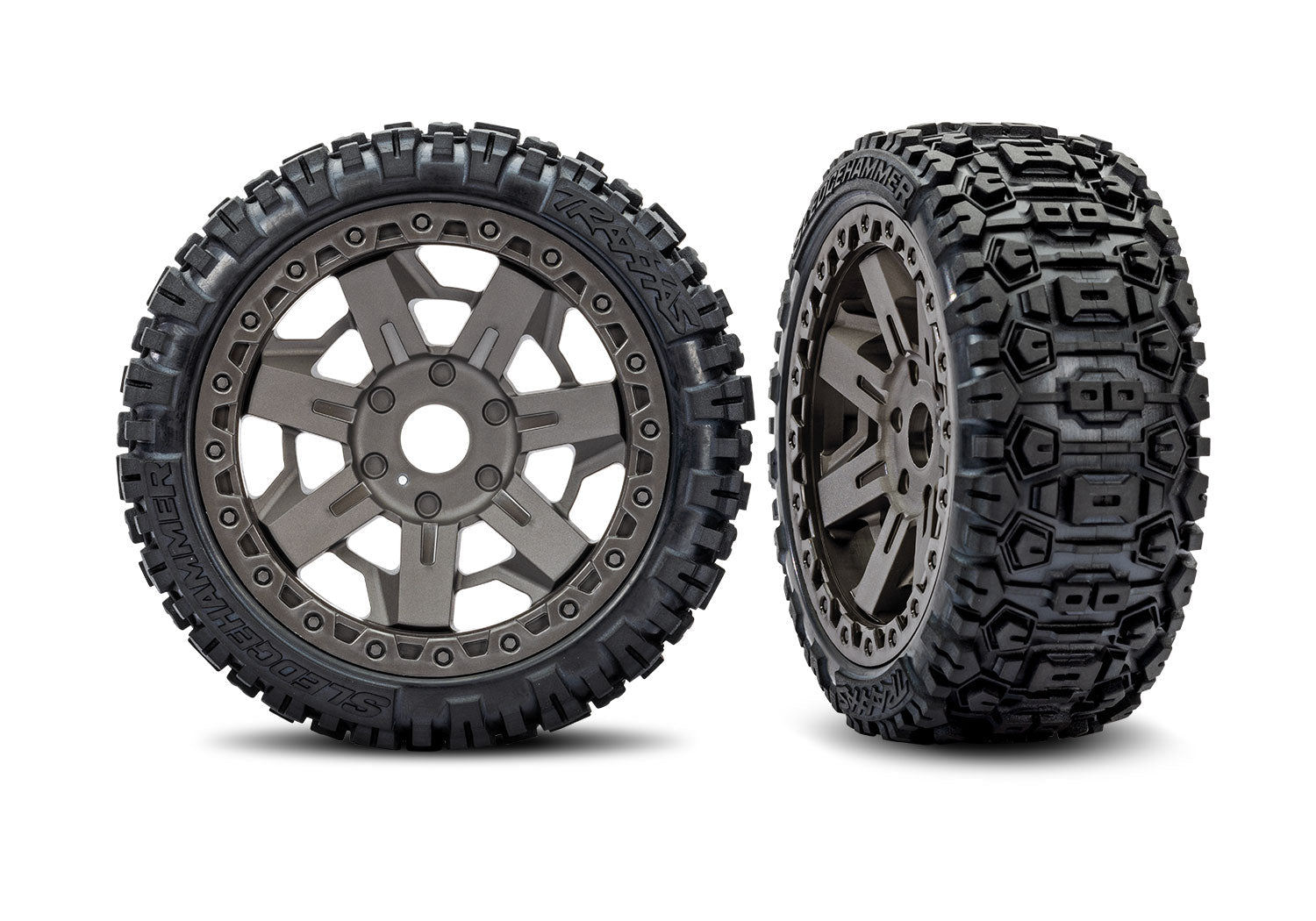

- Wheels and Tires
- 3″ gray buggy wheels
- 4.5″ Sledgehammer® tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
MODEL SPECS
| Model Type: | 1/8 scale buggy |
|---|---|
| Skill Level: | 1 |
| Length: | 20.4 inches (517 mm) |
| Width: | 12 inches (305 mm) |
| Height: | 7 inches (179 mm) |
| Weight: | 5.2 pounds (2.36 kg) |
| Wheelbase: | 12.6 inches (320 mm) |
| Front Track: | 12 inches (305 mm) |
| Rear Track: | 12 inches (305 mm) |
| Shock Length (front): | 3.98 inches (101 mm) - XX-long |
| Shock Length (rear): | 3.98 inches (101 mm) - XX-long |
MOTOR SPECS
| Motor Type: | BL-2s 3300 kV sensorless brushless motor |
|---|---|
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Traxxas Quick Connect Motor Plug |
ESC SPECS
| Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
|---|---|
| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
