X-Monster Chassis Traxxas 77036-4

X-Monster Chassis Traxxas 77036-4

$1,199.95
Color

X-Monster Chassis Traxxas 77036-4

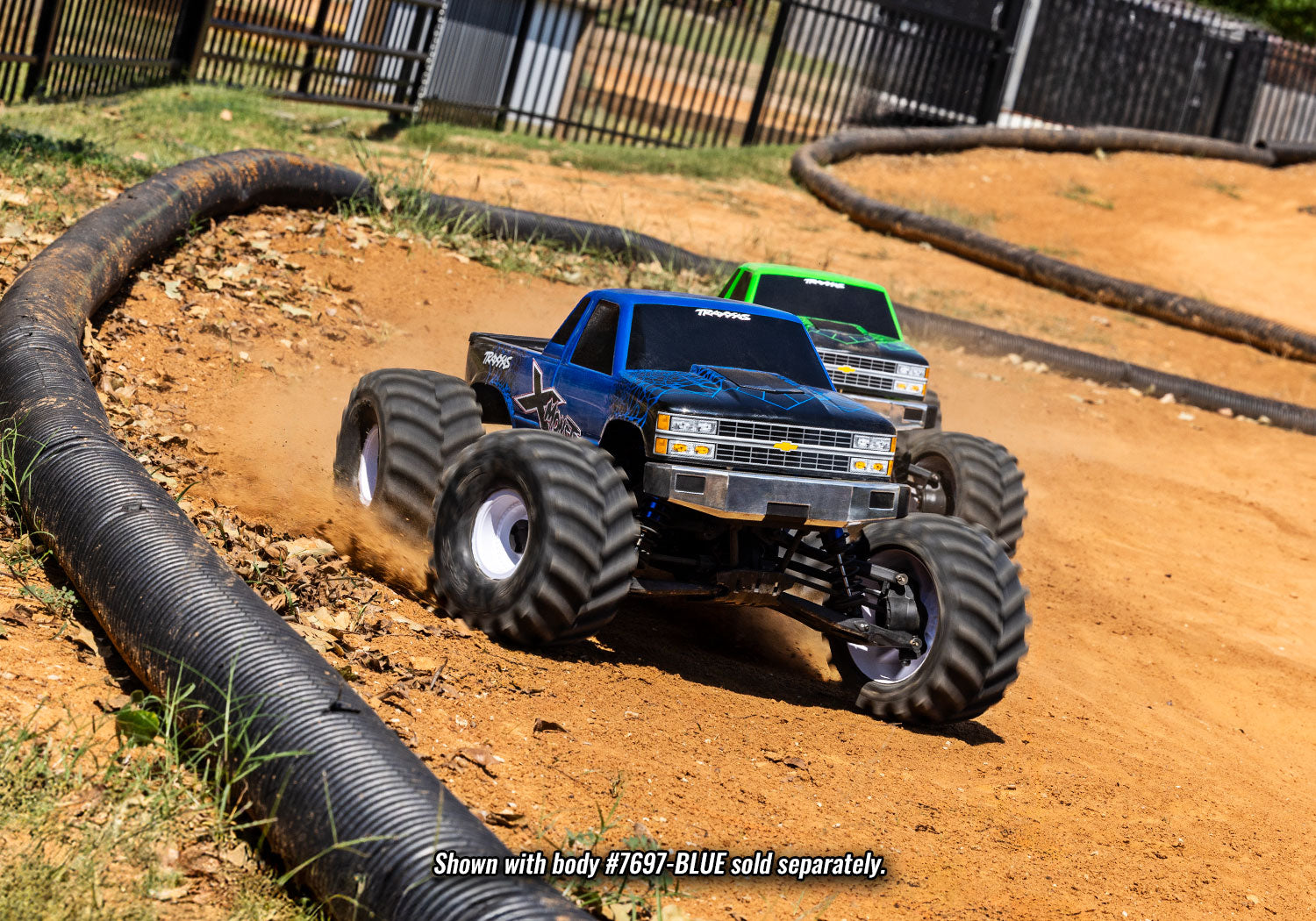

X-Maxx Toughness. Monster Truck Style.



The new X-Monster combines the legendary power, size, and durability of X-Maxx with even more strength, more size, and a new series of replica monster truck bodies. New belted chevron-pattern monster truck tires deliver outstanding traction for jaw-dropping acceleration and 50+ mph speed with the authentic scale looks of a real monster truck. Choose your favorite Ford or Chevy body (sold separately) and unleash 30+ volts of extreme 8s power!

Customizable With a Full Line of Assembled Bodies

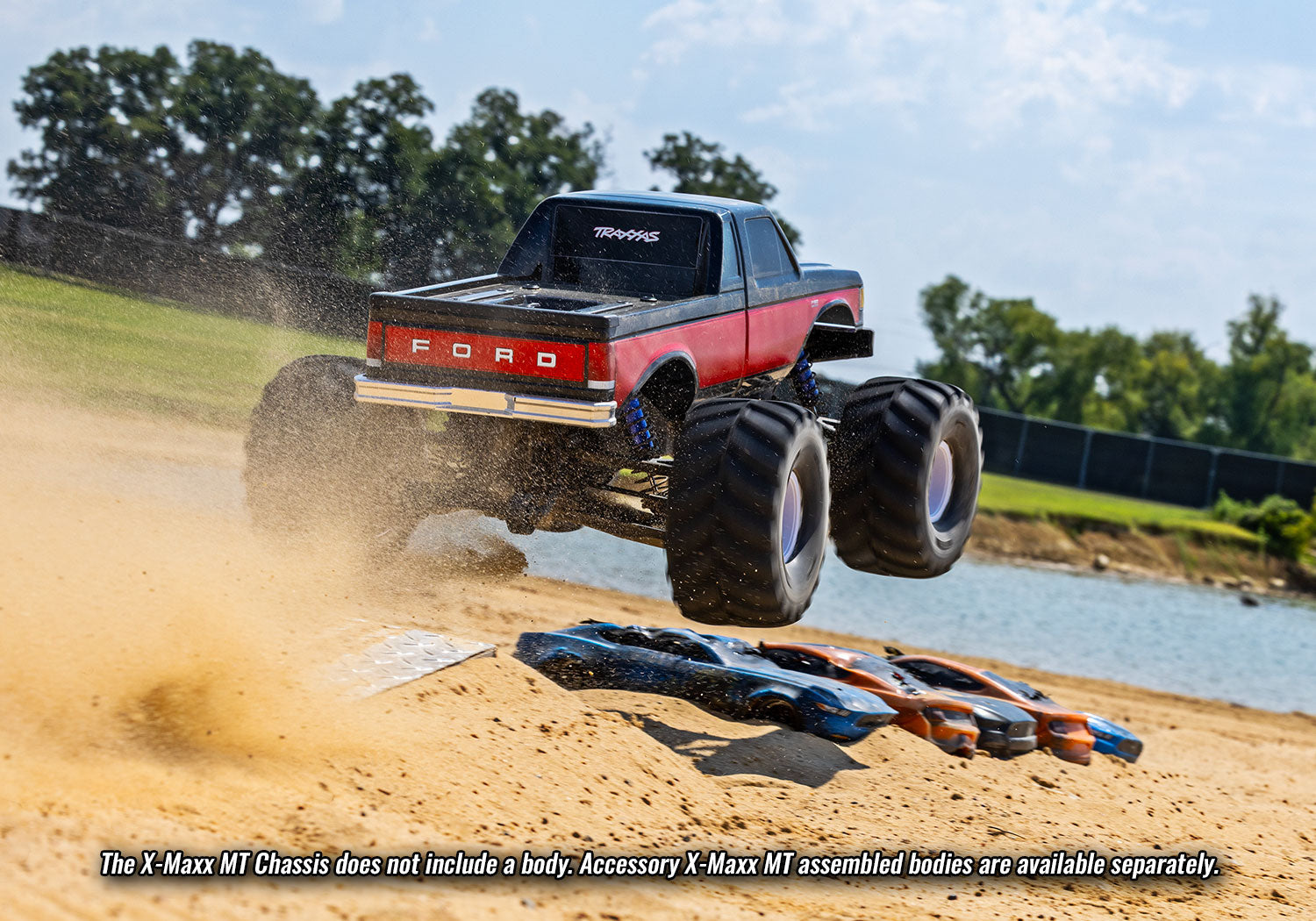

Body and chassis are packaged and sold separately.

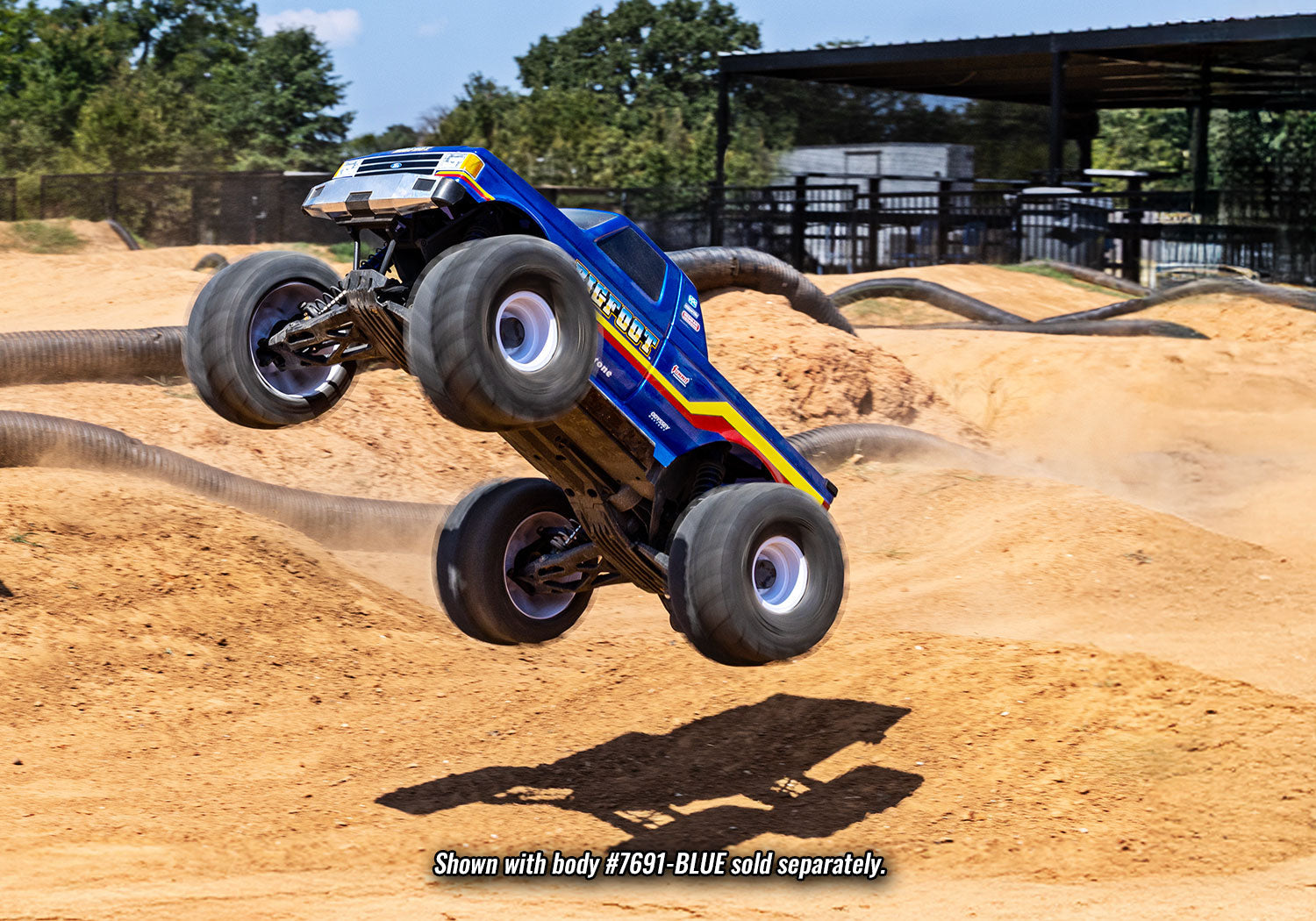

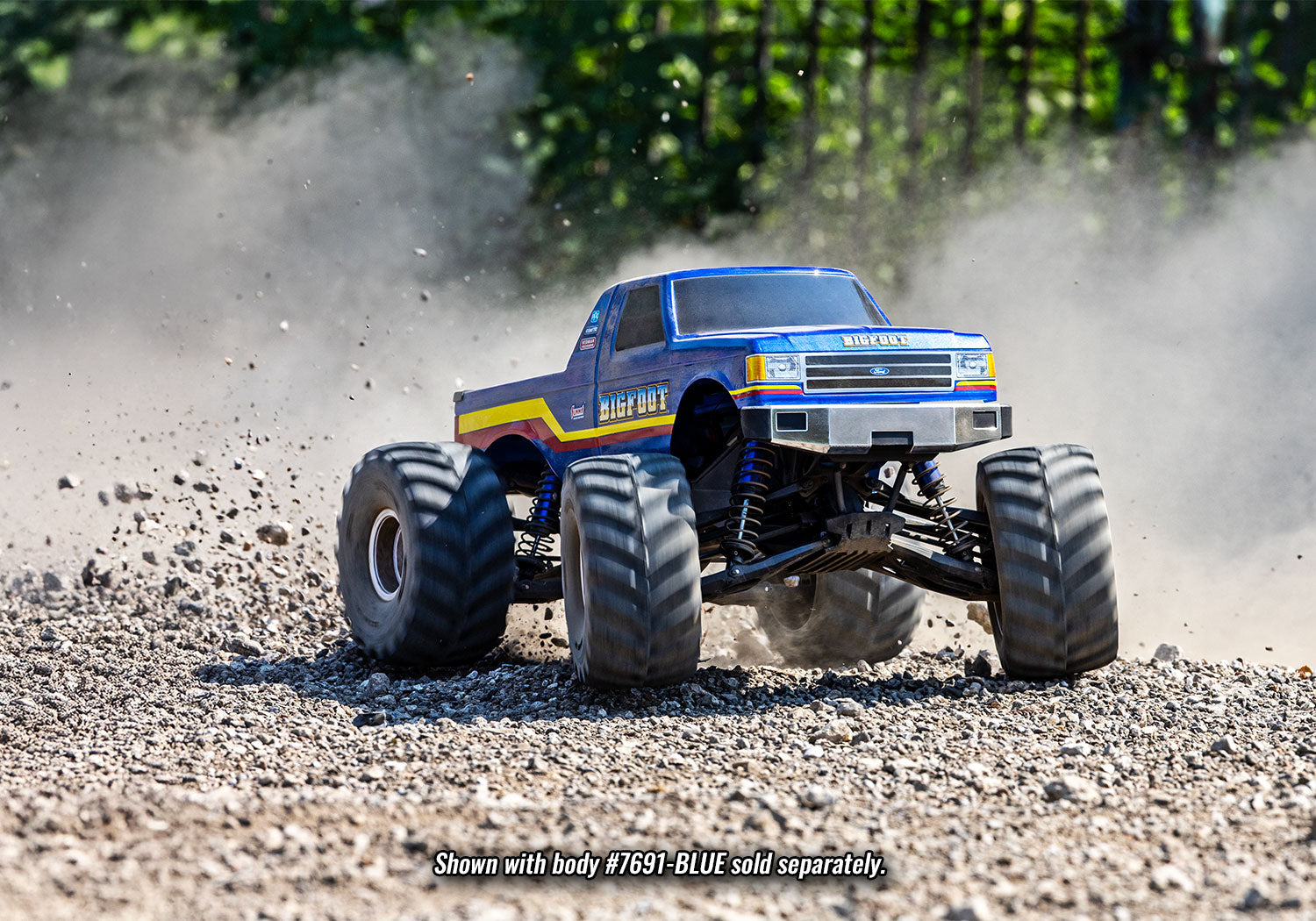

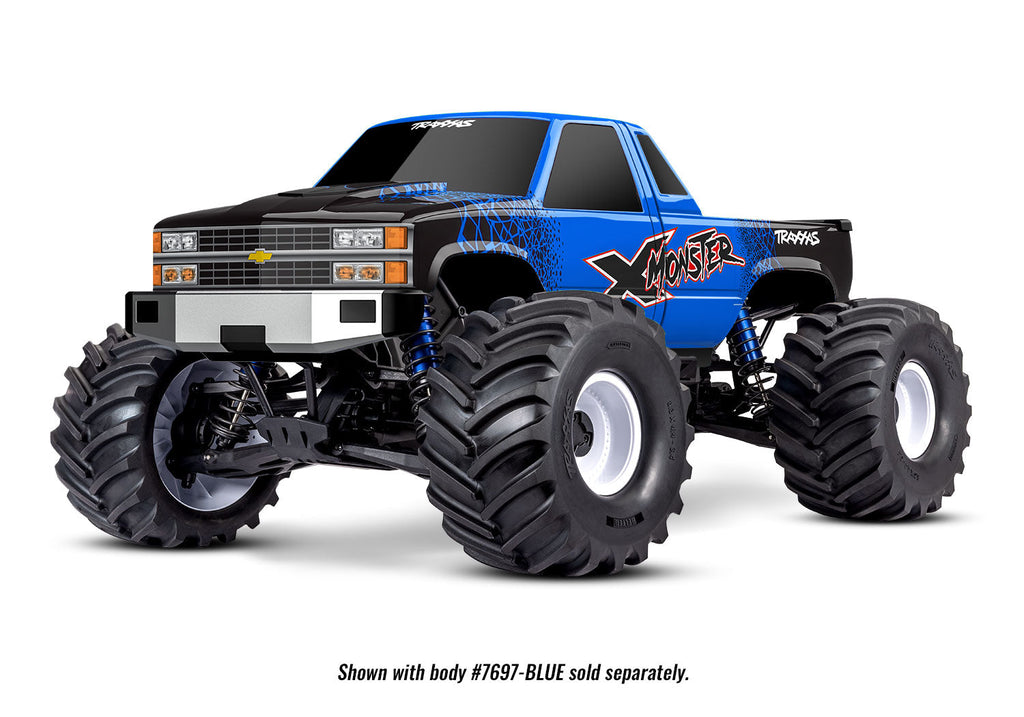

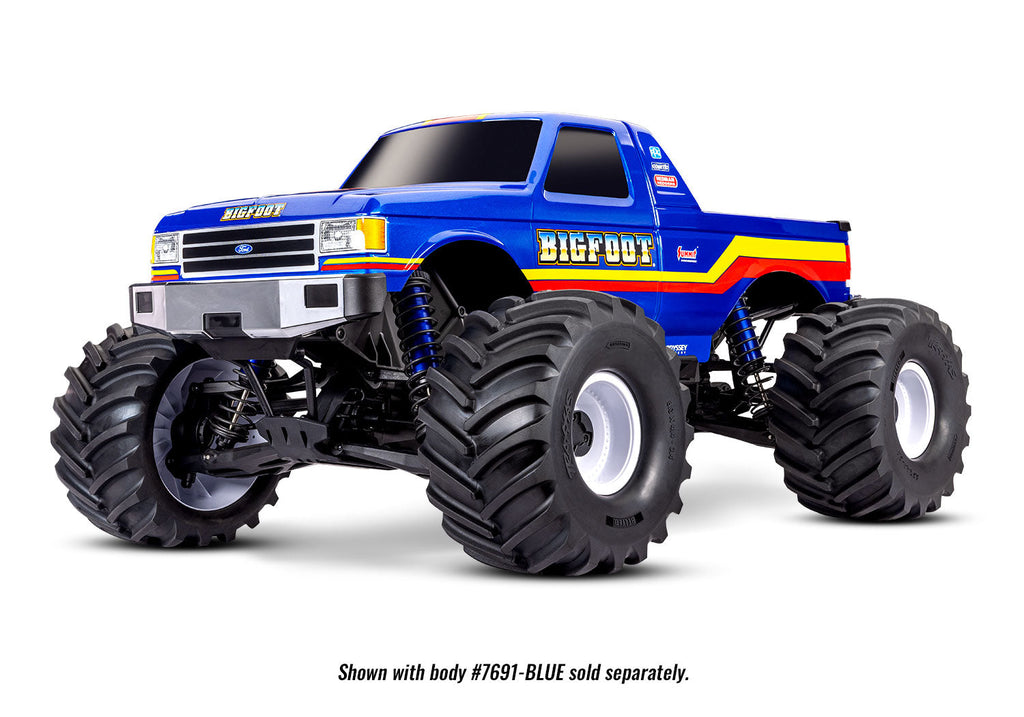

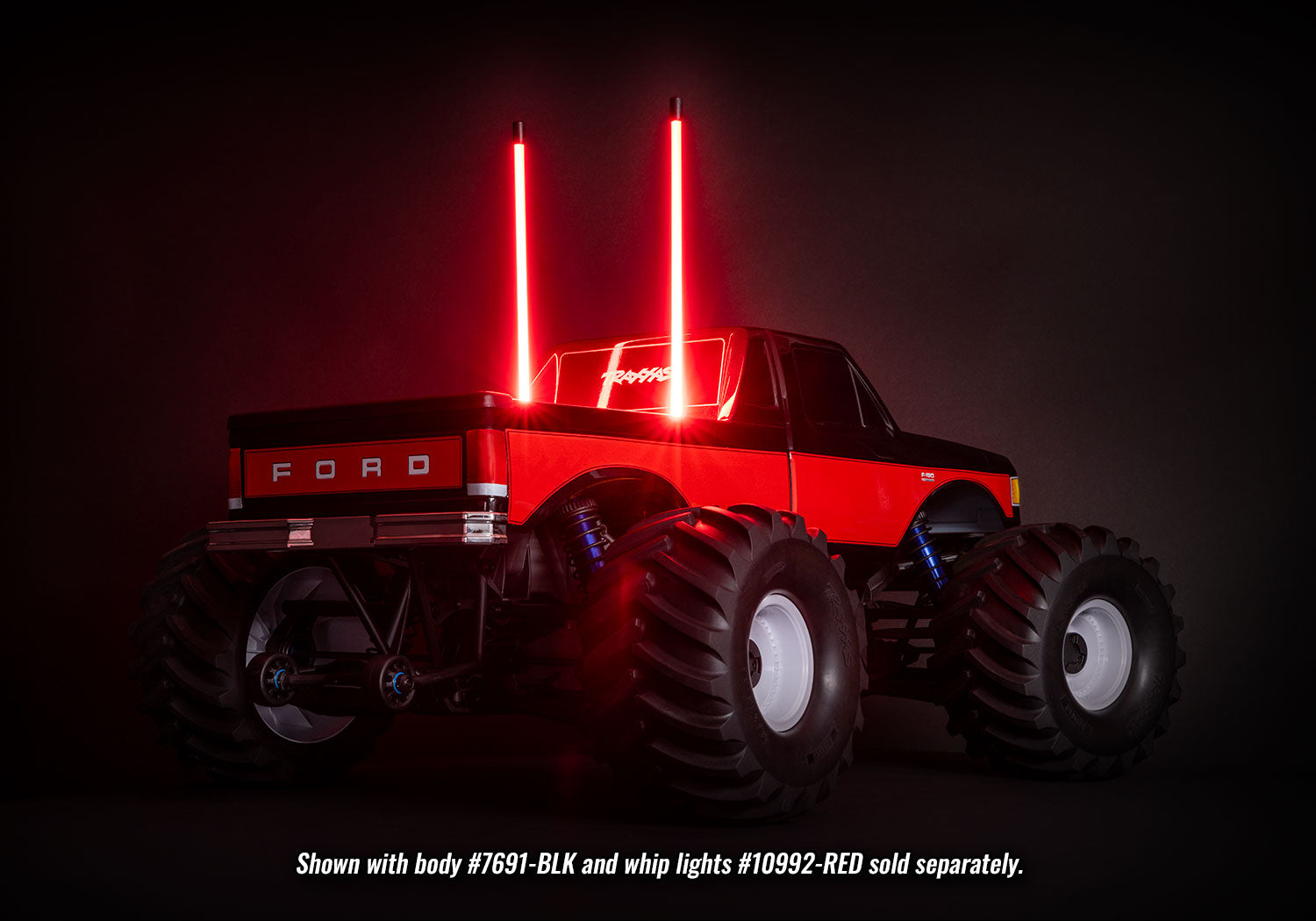

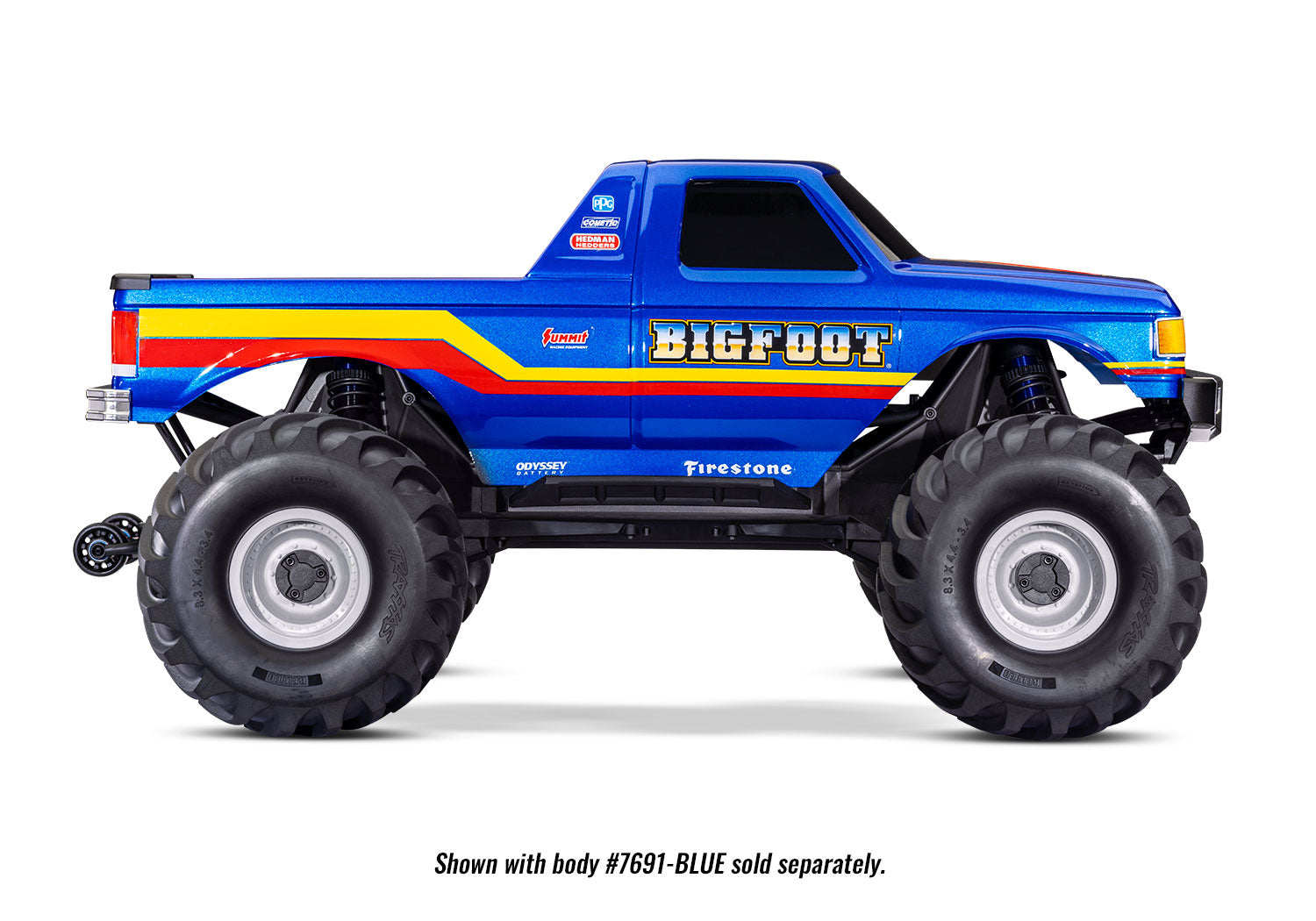

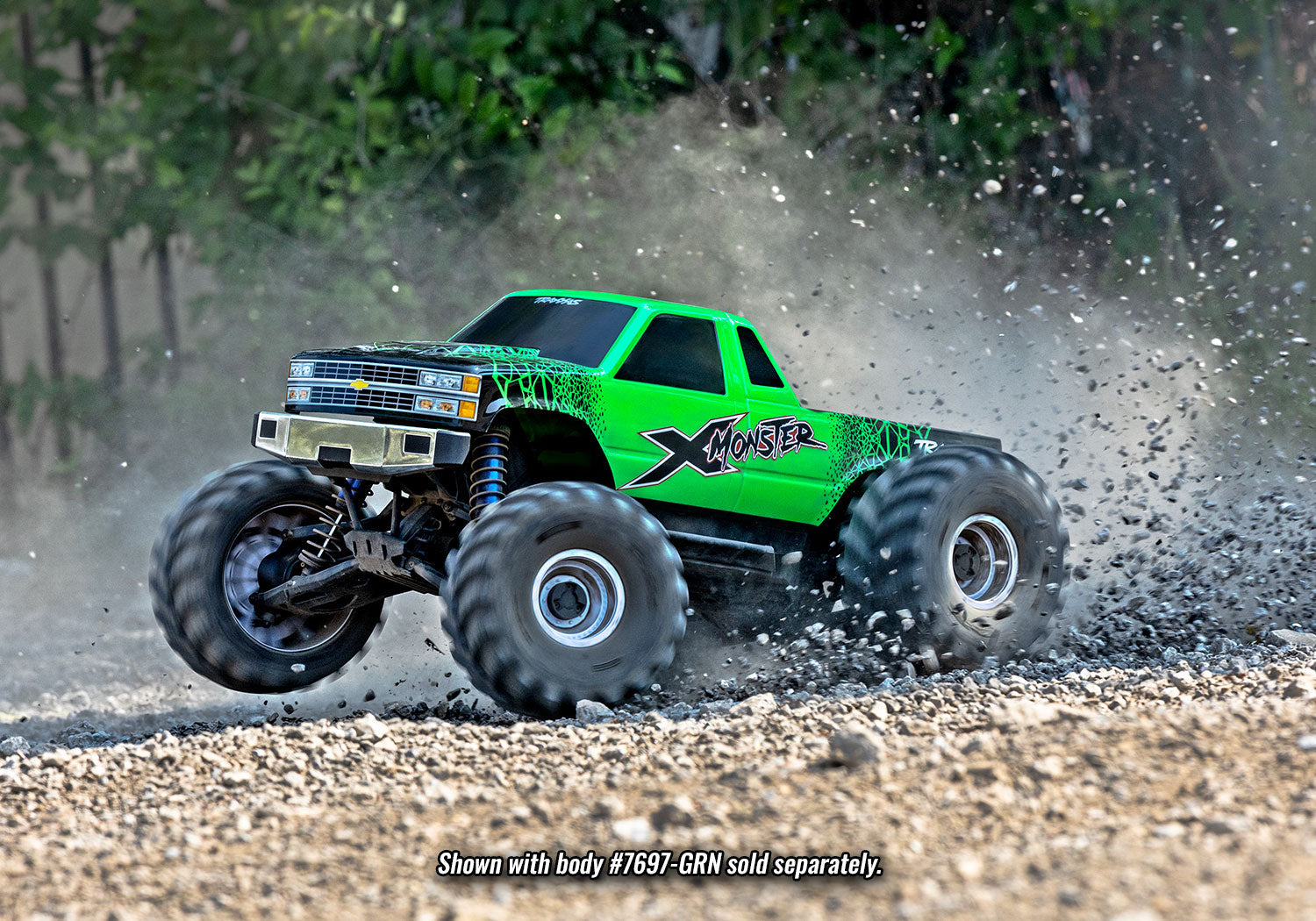

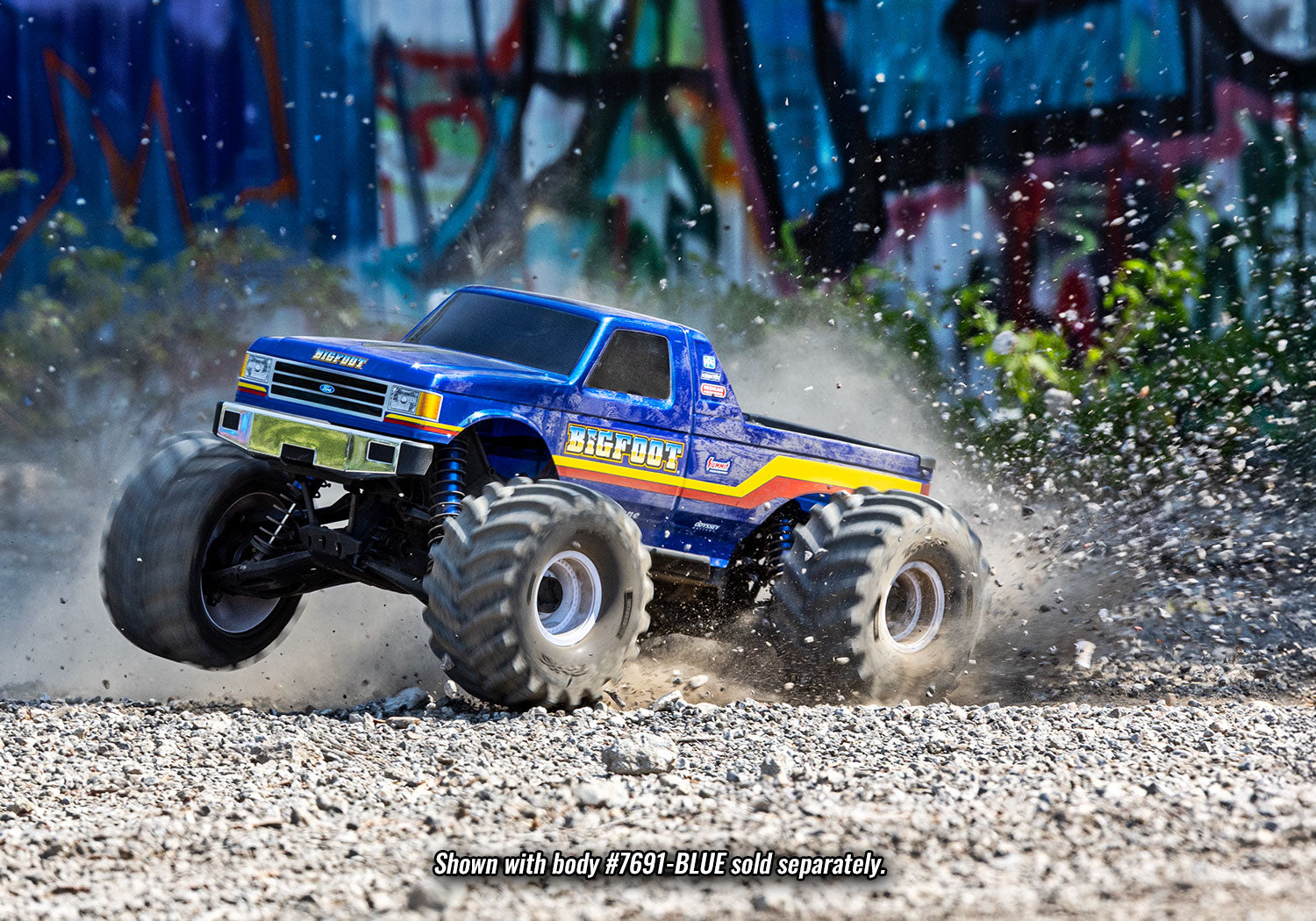

Pair the X-Maxx MT Chassis with a new replica Ford® F-150,® Chevrolet® C/K, or BIGFOOT® No. 8 body (sold separately). The X-Maxx MT Chassis also accepts existing X-Maxx clipless bodies.

X-Monster Rides on a Tougher Chassis

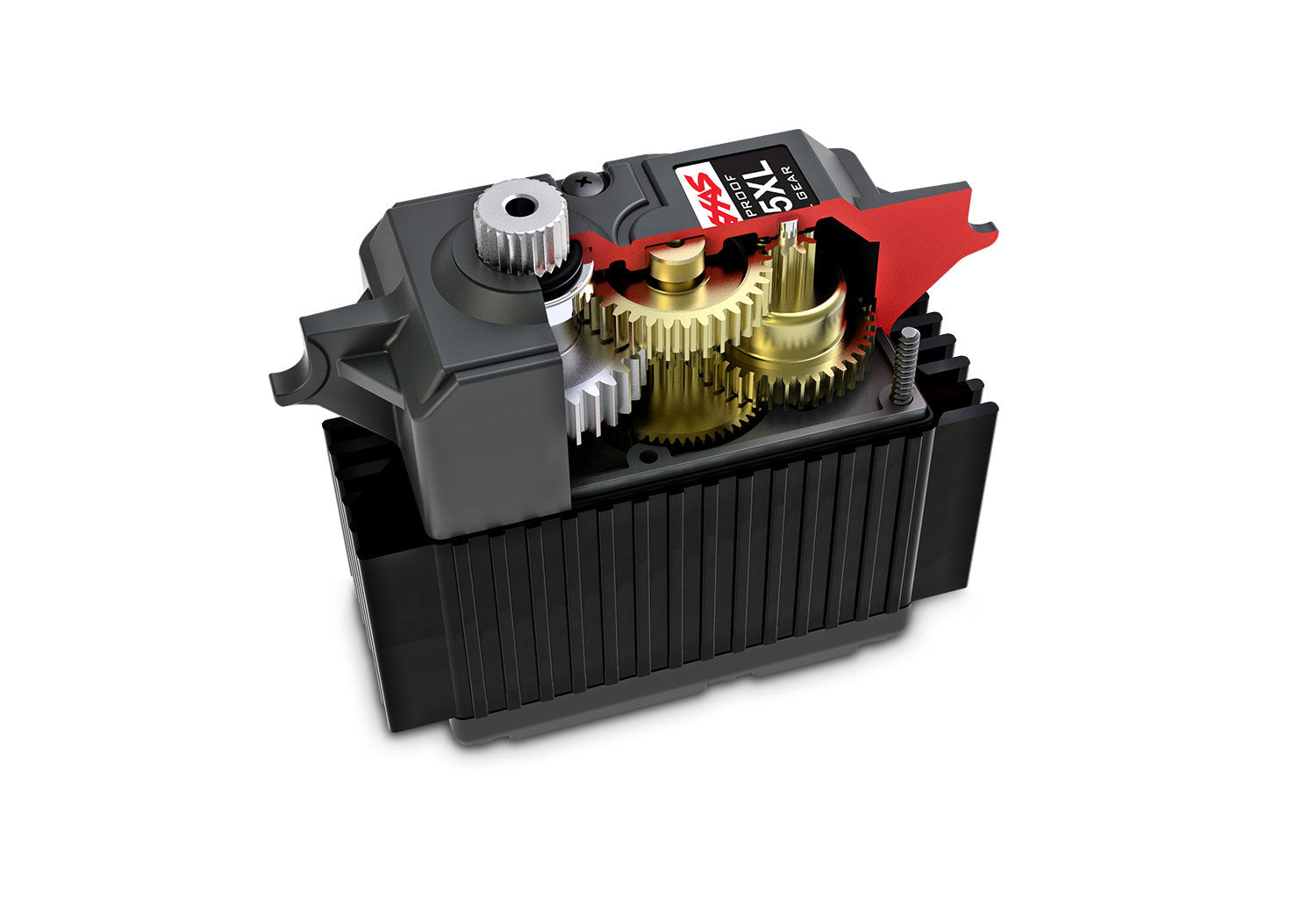

More Powerful 2085XL
Metal-Gear Servo



New Belted Monster Truck Tires
and Wheels



HD Suspension Arms with
Captured Pins



Extreme HD Output Yolks

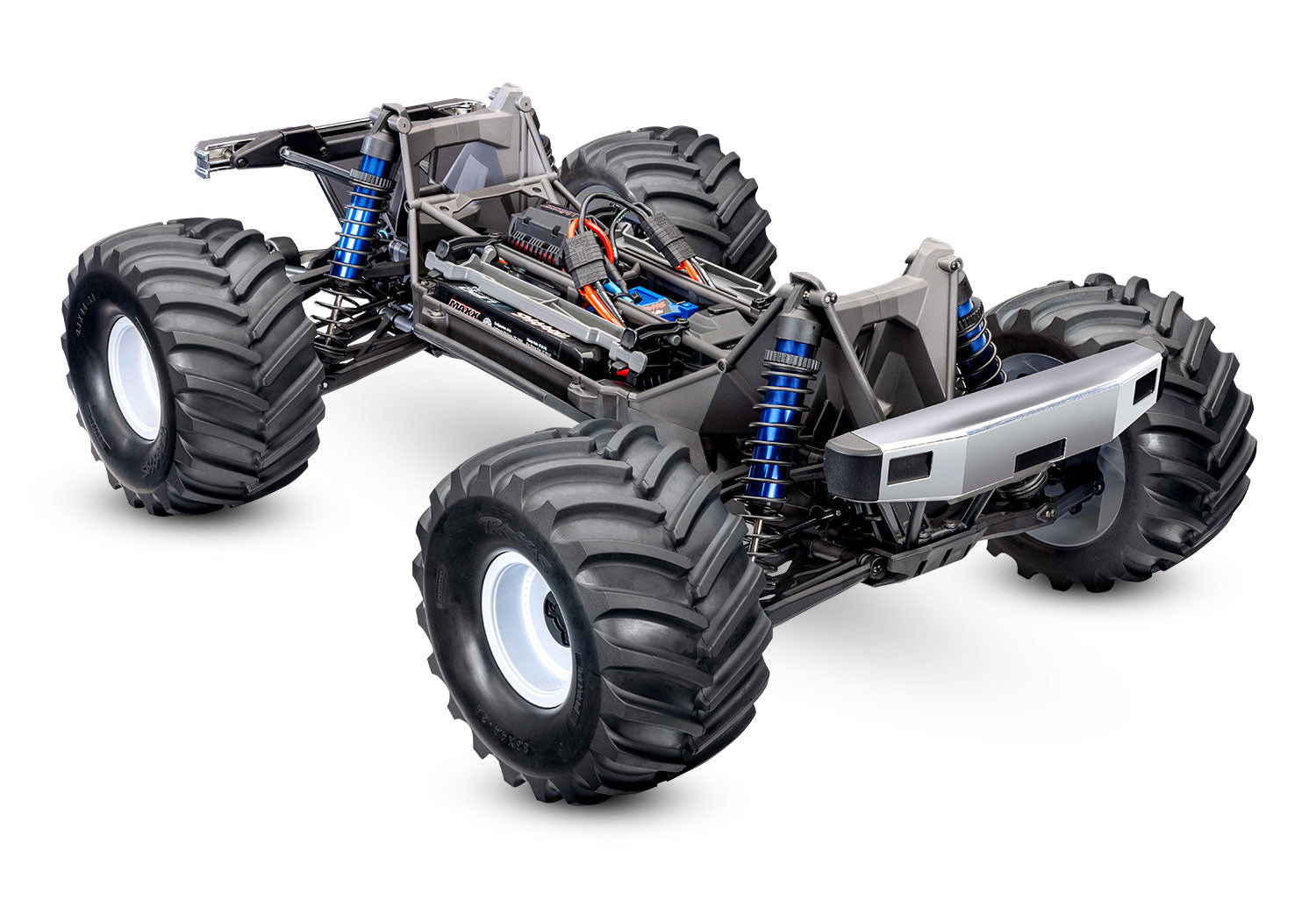

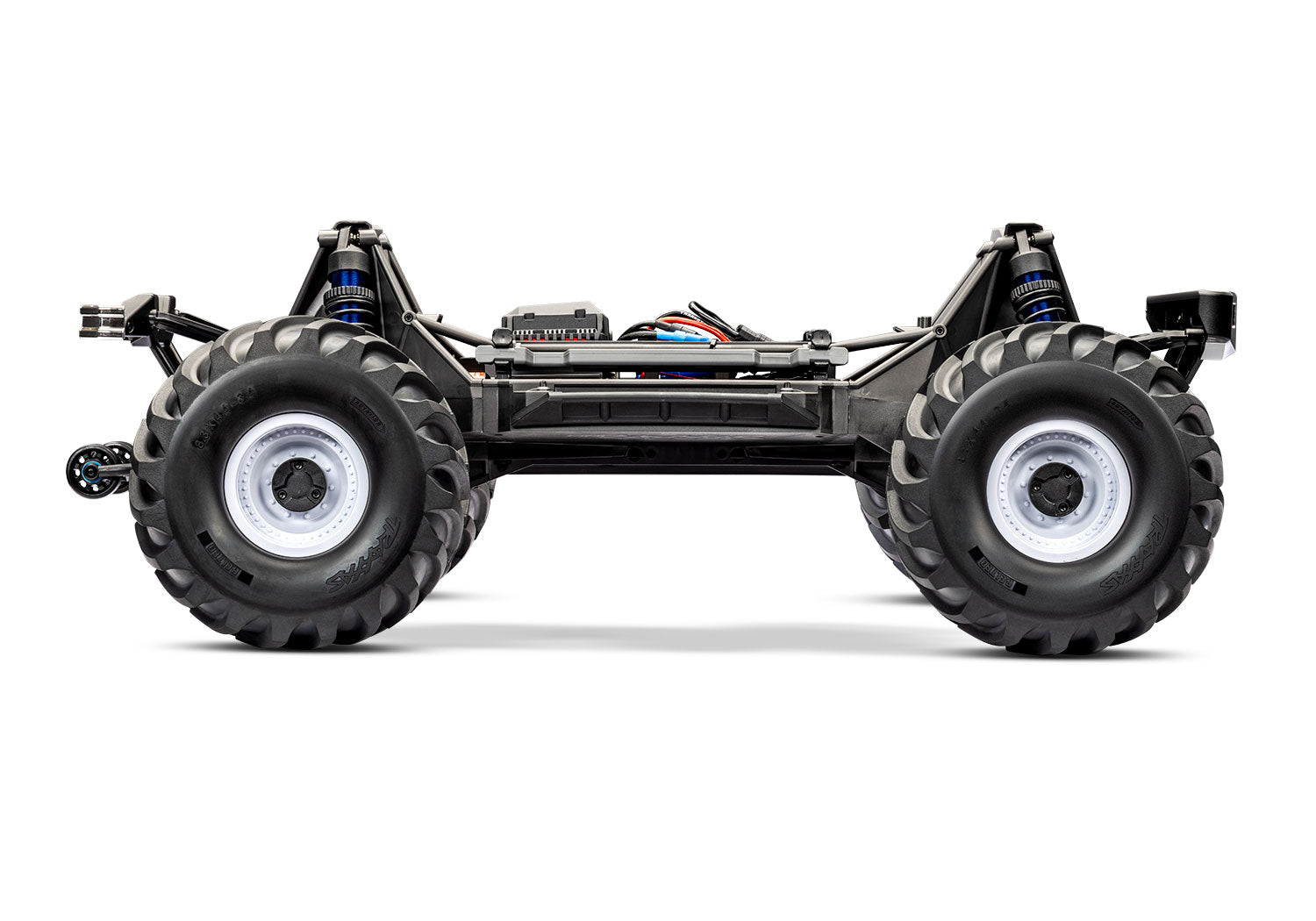

X-Maxx MT Chassis (77036-4)
X-Maxx MT Chassis (77036-4)
MODEL 77036-4: Fully assembled X-Maxx MT Chassis with TQi™ 2.4 GHz Radio System, VXL-8s Brushless Power System, belted chevron tires. Requires MT body (sold separately).

What’s In The Box:

  • X-Maxx MT Chassis with Traxxas Big Block brushless motor
  • VXL-8s waterproof electronic speed control with integrated telemetry
  • Optional high speed pinion gear
  • TQi 2.4 GHz radio system
  • High quality maintenance tools

RECOMMENDED Completer Pack




TRA2997
Dual 4s LiPo Completer w/ EZ-Peak Live Dual 4s Charger

What You’ll Need:

  • Body

    Select your X-Maxx MT body from one of several available options.

  • Batteries

    X-Maxx MT requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries with iD® are recommended for optimal performance (part 2890X).

  • Charger

    EZ Peak Live Dual 4s LiPo Charger with iD®

  • AA Alkaline Batteries

    Four AA alkaline batteries for the transmitter.

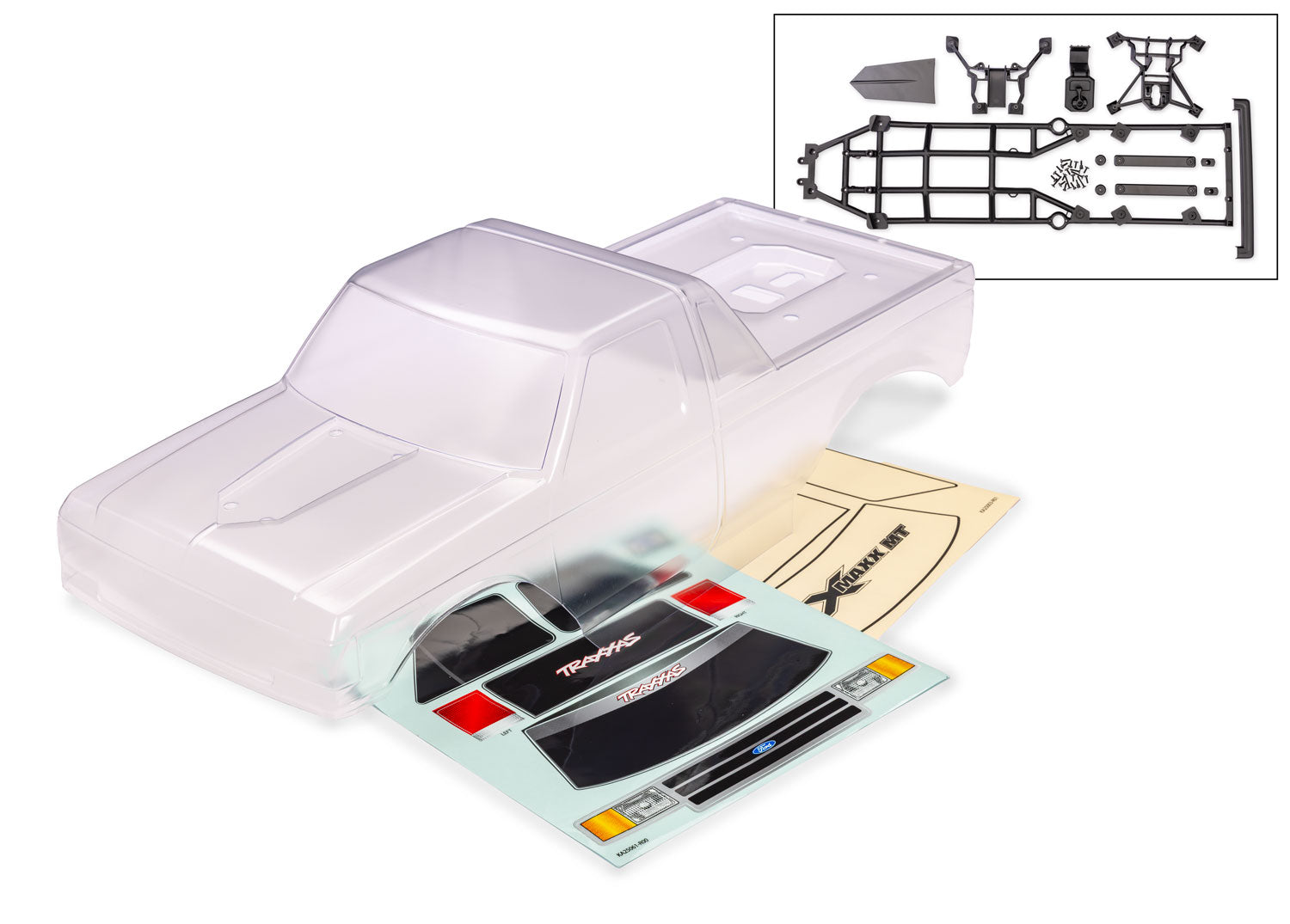

  • Choose from Several Clipless Monster Truck Bodies (sold separately)
    • Quick one-hand installation and removal
    • Pivoting rear latch mechanism
    • Eliminates body posts and clips
    • Reinforced for extra protection
  • VXL-8s™ Waterproof Electronic Speed Control
    • 8s LiPo compatible
    • Built-in cooling fan
    • Machined heat sinks
    • 10-gauge silicone wire
    • Integrated protection circuits
    • LED status lights
  • Velineon® 1200XL Brushless Motor
    • 4-pole 1275 Kv
    • 5 mm output shaft
    • Aluminum slip-on heat sink
    • Dual motor cooling fans
  • 50+ mph with Two 4s LiPo Batteries and Included Optional Pinion Gear
  • Traxxas Stability Management® (TSM)
    • Helps prevents spinouts and loss of control
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4 GHz High Output Radio System
    • Traxxas Link™ enabled
    • 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity
    • BEC Voltage and Motor Temperature Sensor installed
  • 8s Driveline
    • Steel pinion and spur gear
    • Full-time shaft-driven 4-wheel drive
    • Heavy-duty steel CV driveshafts
    • Beefed-up steel differential output cups
    • Splined aluminum center driveshaft
    • Machined aluminum stub axles
    • Torque-Biasing Center Drive™ absorbs shocks and distributes power to all four wheels
    • 24 mm splined wheel hexes
    • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
  • Fixed Motor Mounting System
  • Preset gear mesh adjustments
  • No manual adjustments required
  • Motor retention separate from gear mesh

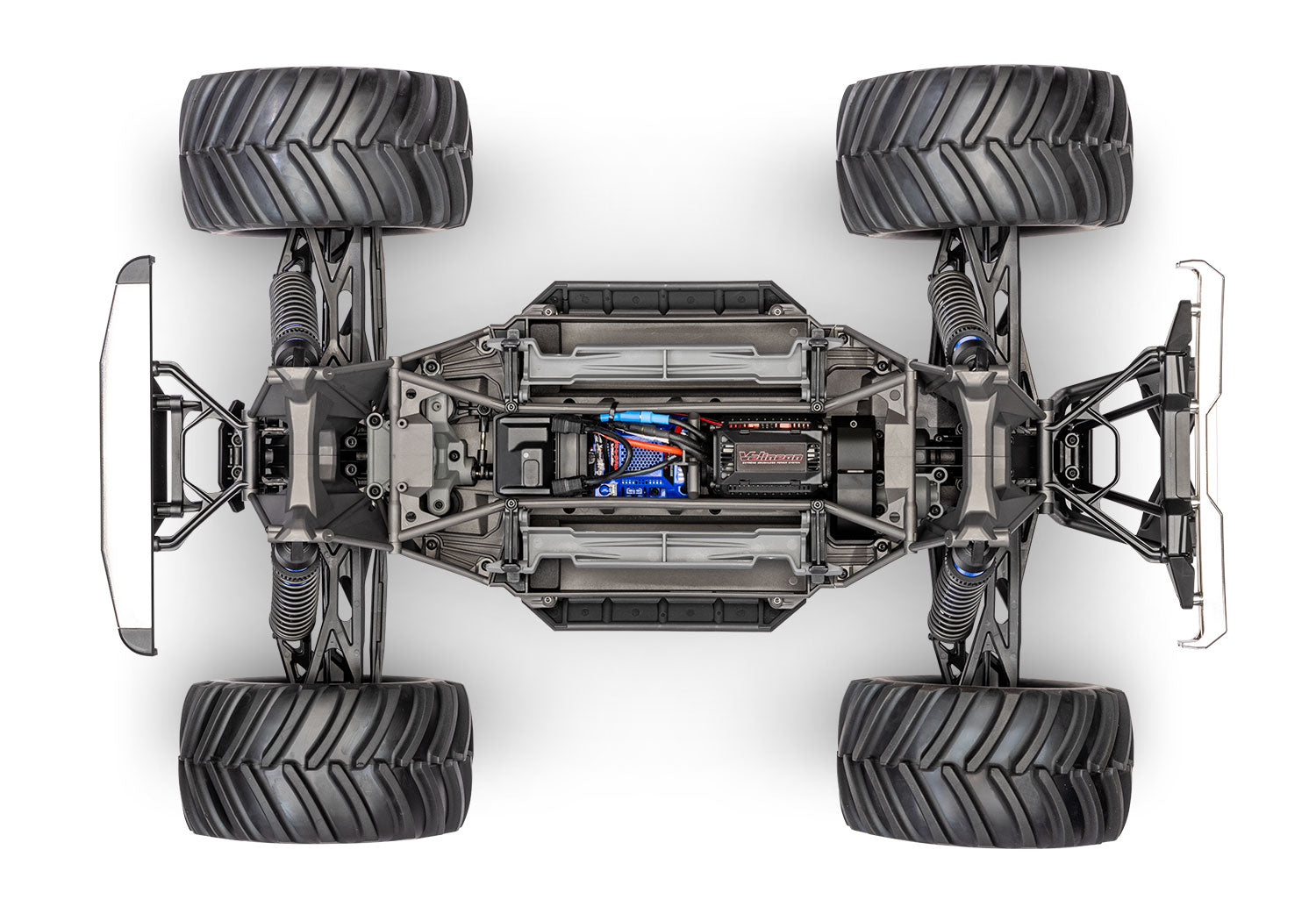

Heavy-Duty Modular Composite Chassis
  • Interlocking front and rear bulkheads
  • Motor mounts to rear bulkhead to eliminate gear crunching flex
  • Easy to service and access components
  • Driveline is sealed in the chassis to keep out dirt and grit
Snap-Lock Battery Retention System
  • No body clips or hook and loop straps
  • Battery hold-downs pivot for easy access
  • Adjustable for battery size
  • More secure than conventional retention systems
  • Integrated into chassis top brace for improved battery tray and chassis stiffness

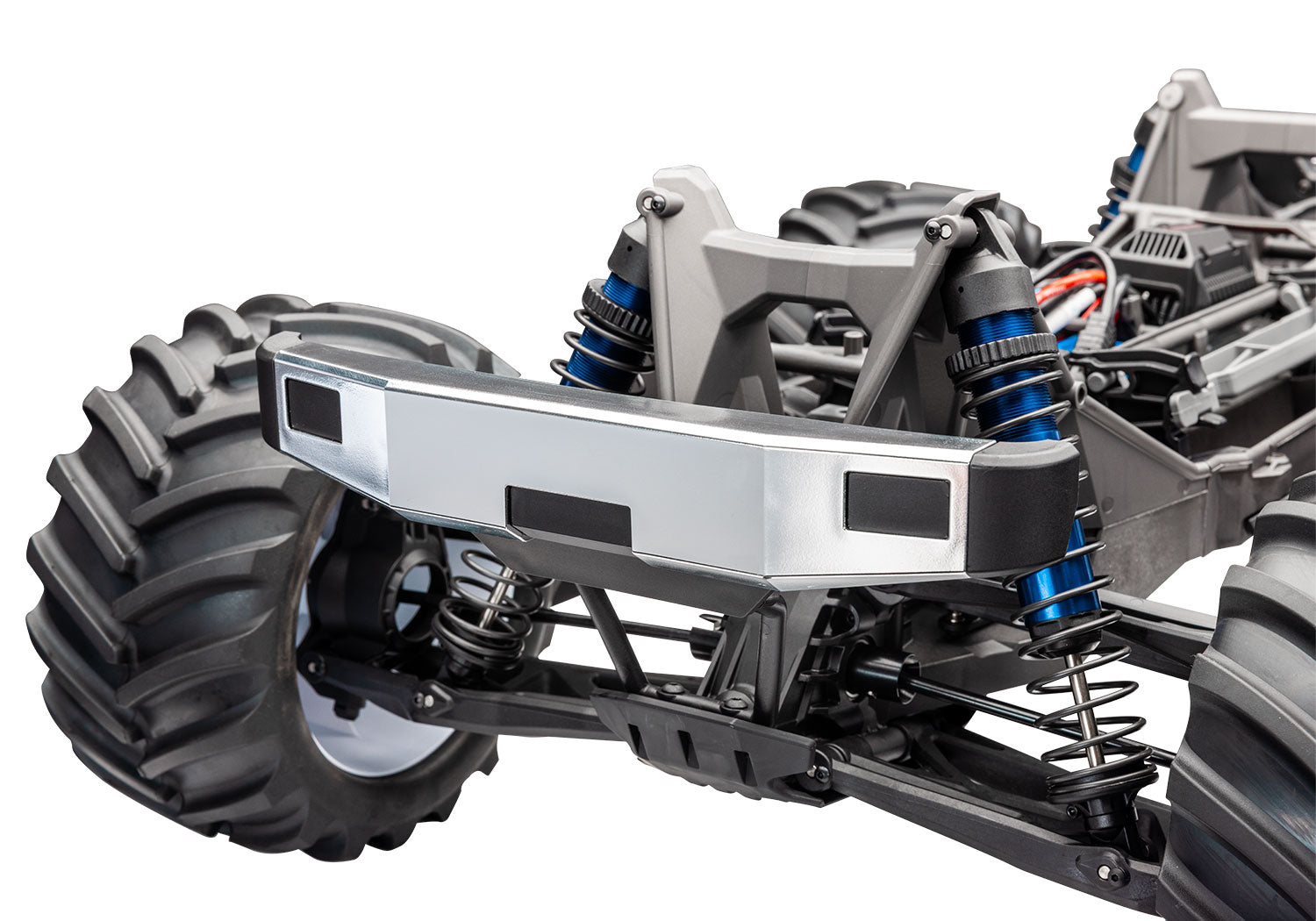

Bumpers & Skid Plates
  • Front energy absorbing rubber impact cushion
  • Lower front and rear skids for impact and abrasion resistance
  • Integrated nerf bars for side impact resistance
  • Steering
    • 450 oz-in torque
    • Aluminum cooling fins
    • 2085XL high-output metal-gear steering servo
    • Fully-supported case mounting
    • Double-shear, bearing supported servo horn
  • Suspension
    • Heavy-duty suspension arms with double-shear connections
    • High strength steel suspension pins used throughout
    • Captured outer lower suspension pins with locknuts
    • C-hub and steering block geometry maximizes steering angle
    • Adjustable roll center
    • Steel upper and lower tie bars
    • Full contact sealed bearings used in exposed locations

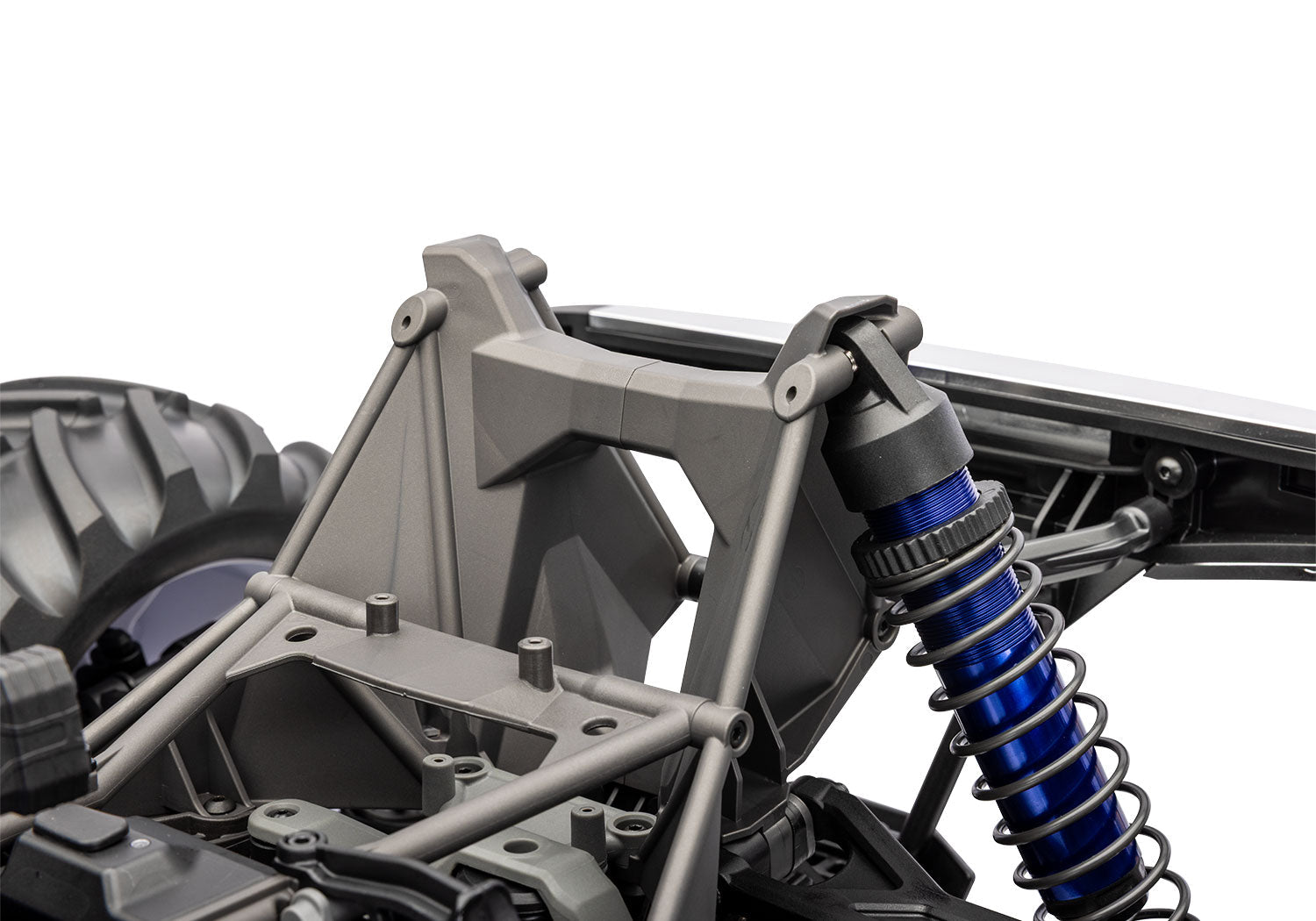

  • Aluminum GTX™ Shocks
    • Machined aluminum threaded body
    • Extra-large bore and capacity
    • 5.2 mm damper shaft
    • Lower seal cartridge includes integrated wiper seal combination
    • Adjustable upper spring retainer
    • Plastic shock caps with pivot balls
    • Fixed shock locations
    • Lower spring perches bolted on

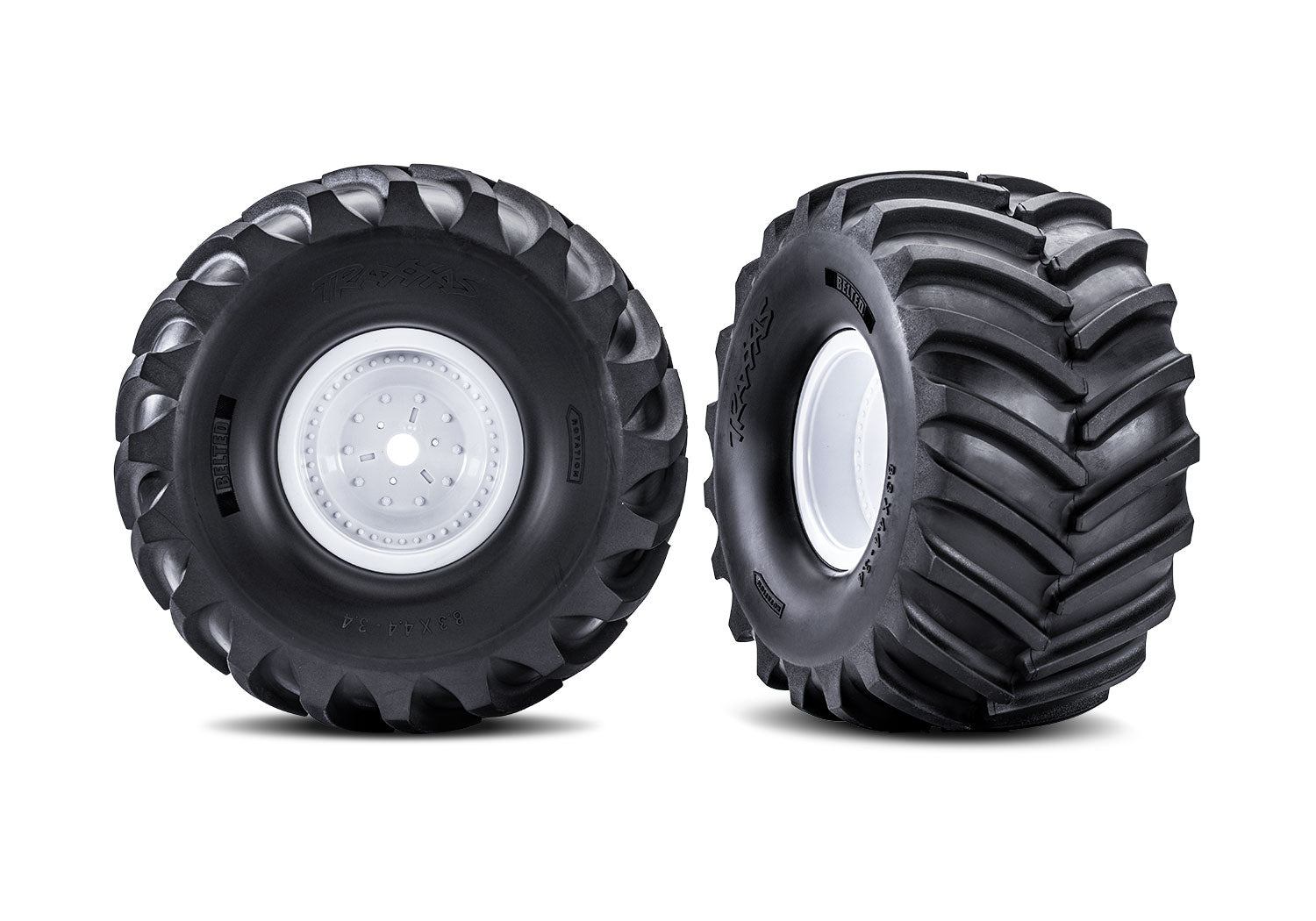

  • Wheels & Tires
    • Replica military-style axle hubs
    • Super-soft rubber compound for exceptional grip
    • Internal belting virtually eliminates ballooning
    • Dual-profile white monster truck wheels
    • Huge 8.6" belted chevron-pattern monster truck tires

MODEL SPECS

Model Name: X-Maxx MT Chassis
Type: Monster Truck
Speed: 50+ mph with two 4s LiPo batteries and optional speed gear (sold separately)
Skill Level: 6
Scale: X-Truck
Weight: 19.1 pounds (8.66 kg)
Length: 30.67 inches (779 mm)
Width: 21.3 inches (540 mm)
Front Track: 21.3 inches (540 mm)
Height: 13.99 inches (355 mm)

MOTOR SPECS

Motor Name: Velineon 1200XL
Type: 1275 Kv sensorless brushless
Weight: 23.44 ounces (665 g)
Length: 4.32 inches (110 mm)
Diameter: 1.88 inches (48 mm)
Shaft Size: 5 mm
Connector Type: 6.5 mm bullet connectors

ESC SPECS

ESC Name: Velineon VXL-8s
Type: Brushless
Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
Weight: 7.60 ounces (215.5 g)
Motor Connectors: 6.5 mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire:

10 gauge Maxx® Cable
